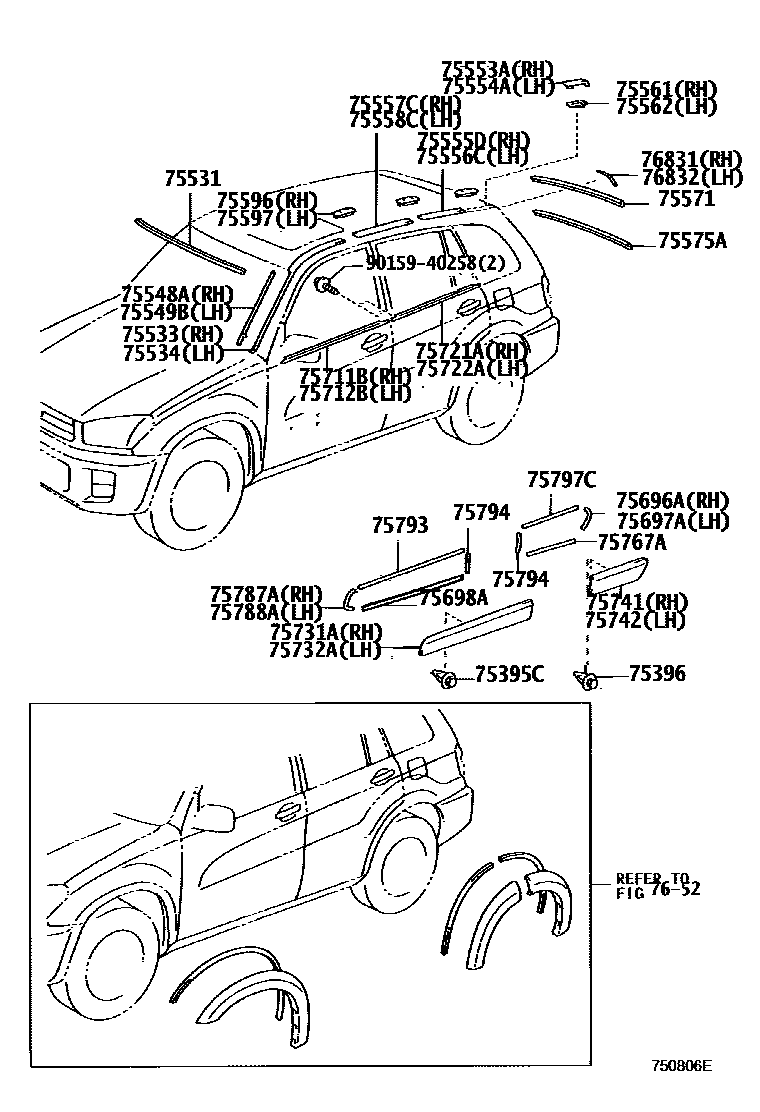

Toyota RAV4 防护条 — Figure 7552
Toyota RAV4 EPC diagram 7552, 防护条, with 1 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75395C | No. 1 outer protective strip clip | 90467-09213 |
| 75396 | No. 2 outer protective strip clip | 90467-09213 |
| 75531 | Windshield outer protective strip | 75531-42010 |
| 75533 | Windshield right outer protective strip | 75533-42041 |
| 75534 | Windshield left outer protective strip | 75534-42011 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-42011 |
| 75549B | No. 2 windshield outer protective strip fasteners | 75549-42011 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-42010 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-42010 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-42030 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75555-42030 |
| 75557C | Decorative strip on the middle section of the drainage channel on the right side of the No. 2 roof | 75557-42020 |
| 75558C | Decorative strip on the side of the drainage channel in the middle section of the left roof of No. 2 car | 75557-42020 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-42030 |
| 75562 | No. 2 roof drain channel side decorative strip clip | 75561-42030 |
| 75571 | Protective strips on the outside of the rear window | 75571-42010 |
| 75575A | Lower protective strip on the outside of the rear window | 75575-42010 |
| 75596 | Drainage channel side decorative strip joint cover on the right side of the roof | 75596-42010 |
| 75597 | Drainage channel side decorative strip joint cover on the left side of the roof | 75596-42010 |
| 75696A | Body exterior protective strip lining | 75696-42040 |
| 75697A | No. 2 body outer protective strip lining | 75697-42040 |
| 75698A | No. 3 body outer protective strip lining | 75793-42040 |
| 75711B | Right front door waistline protection strip | 75711-42030 |
| 75712B | Left front door waistline protection strip | 75712-42030 |
| 75721A | Right rear door waistline protection strip | 75721-42020 |
| 75722A | Left rear door waistline protection strip | 75722-42020 |
| 75731A | Right front door outer protective strip | 75731-42100 |
| 75732A | Left front door outer protective strip | 75732-42100 |
| 75741 | Right rear door outer protective strip | 75741-42060 |
| 75742 | Left rear door outer protective strip | 75742-42060 |
| 75767A | No. 1 rear door protective strip lining | 75767-42010 |
| 75787A | Right front door outer protective strip lining | 75787-42020 |
| 75788A | Left front door outer protective strip lining | 75788-42020 |
| 75793 | Front door outer upper protective strip lining | 75793-42040 |
| 75794 | Front door outer rear protective strip lining | 75794-42010 |
| 75797C | Rear door outer upper protective strip lining | 75797-42010 |
| 76831 | Rear door decorative panel cover | 76831-42010 |
| 76832 | Rear door left decorative panel cover | 76832-42010 |
