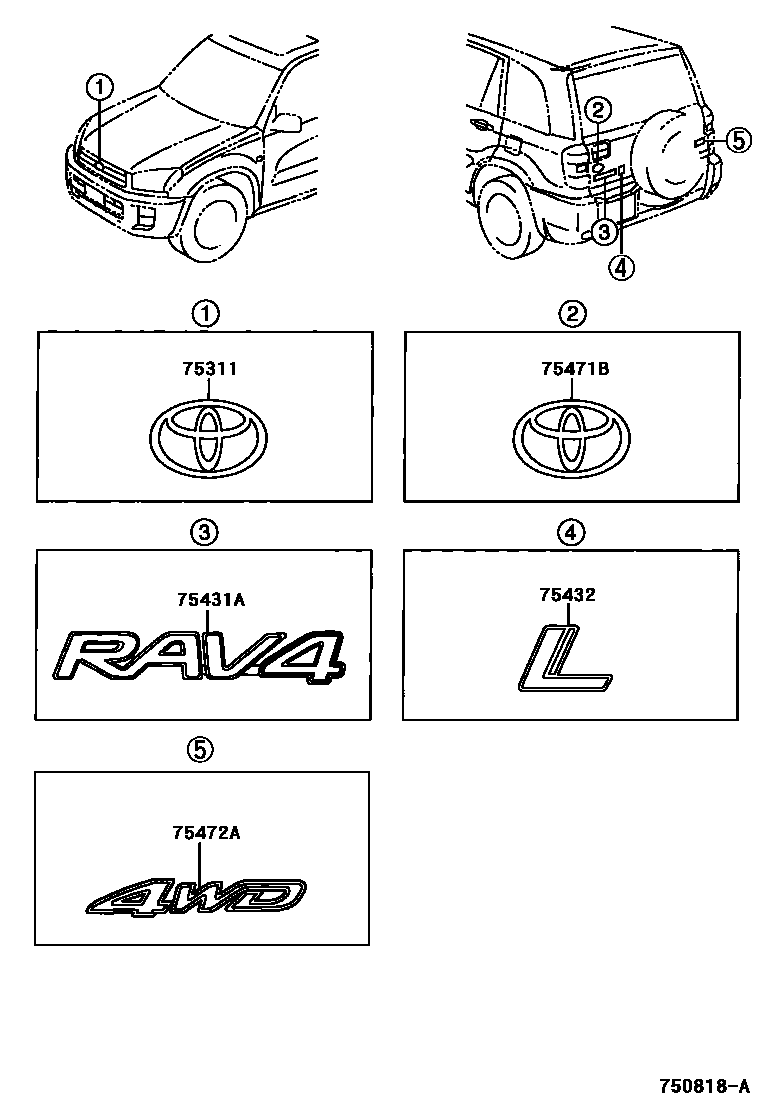

Toyota RAV4 徽标和铭牌 — Figure 7551
Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1E010 · 75311-35200 |
| 75431A | No. 1 sign on back door | 75431-42020 |
| 75432 | No. 2 sign on back door | 75432-42040 |
| 75471B | No. 1 nameplate on rear body | 75471-42010 · 75471-42020 |
| 75472A | No. 2 nameplate on rear body | 75444-21220 |
