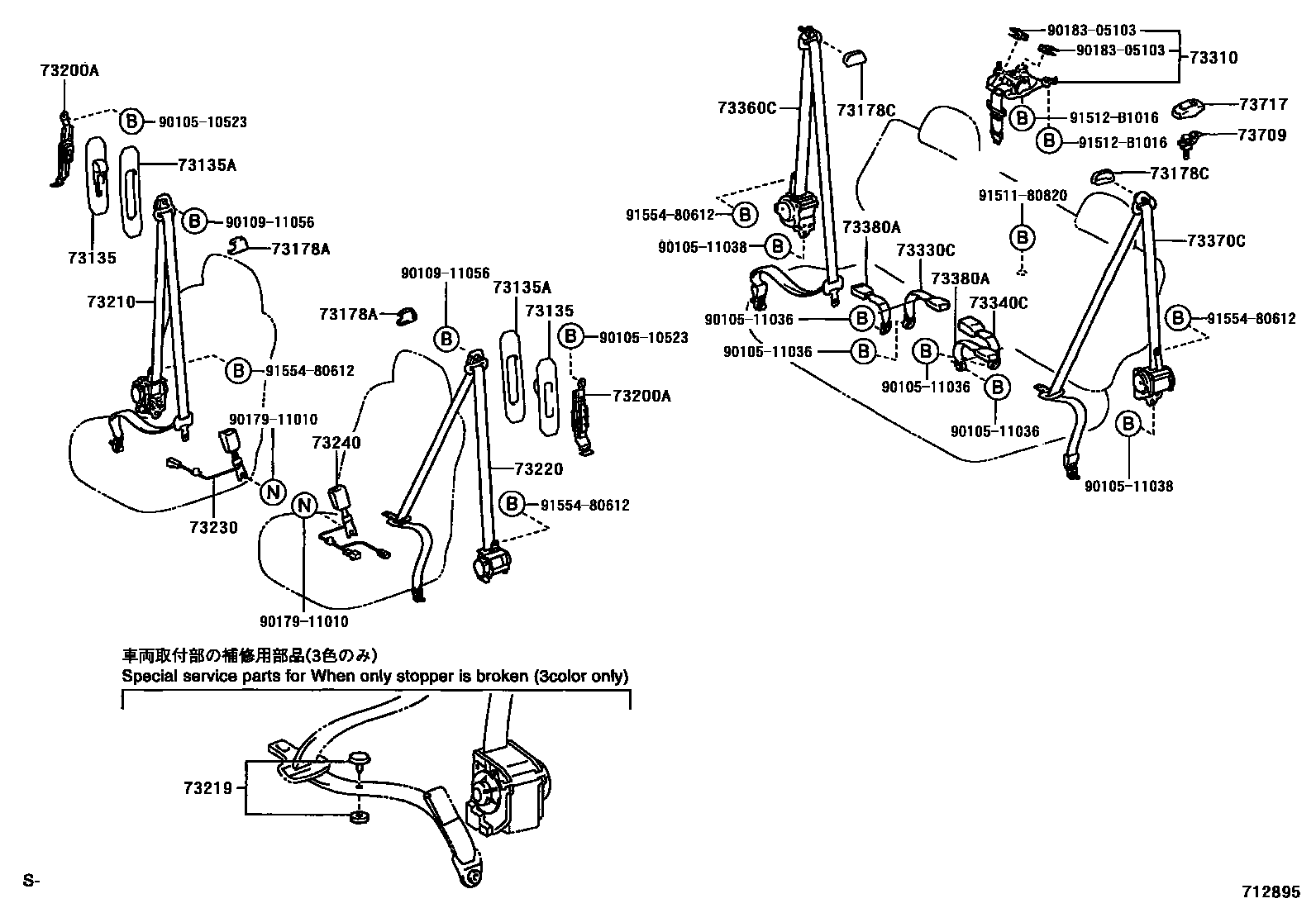

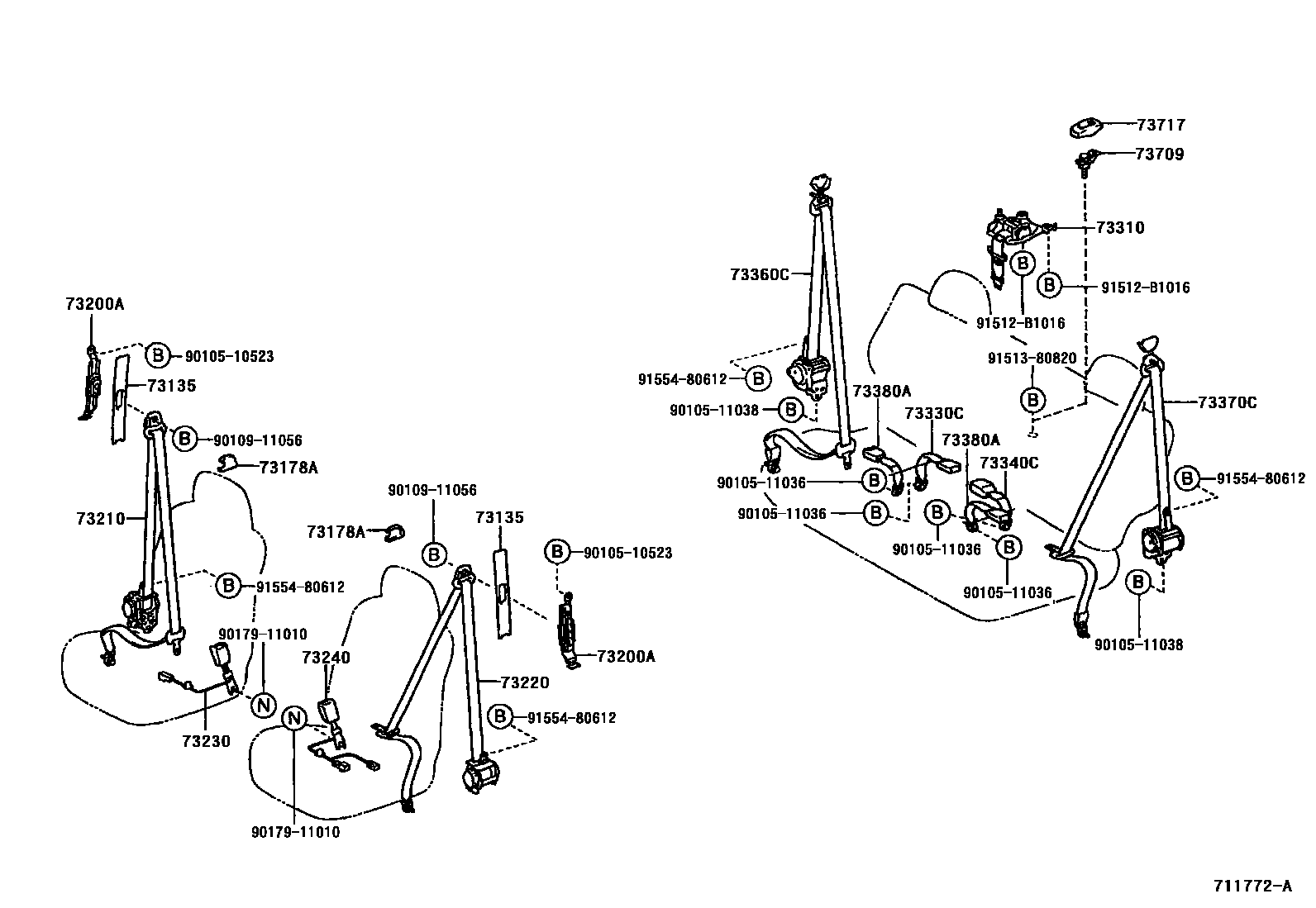

Toyota RAV4 seat belt — Figure 7152
Toyota RAV4 EPC diagram 7152, seat belt, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73219 | Tongue plate stop | 73219-02010 · 73219-02020 · 73219-02030 |
| 73709 | Tie anchor bracket sub-assembly | 73708-12060 · 73708-53010 |
