Toyota RAV4 天窗板和背板 — Figure 6153

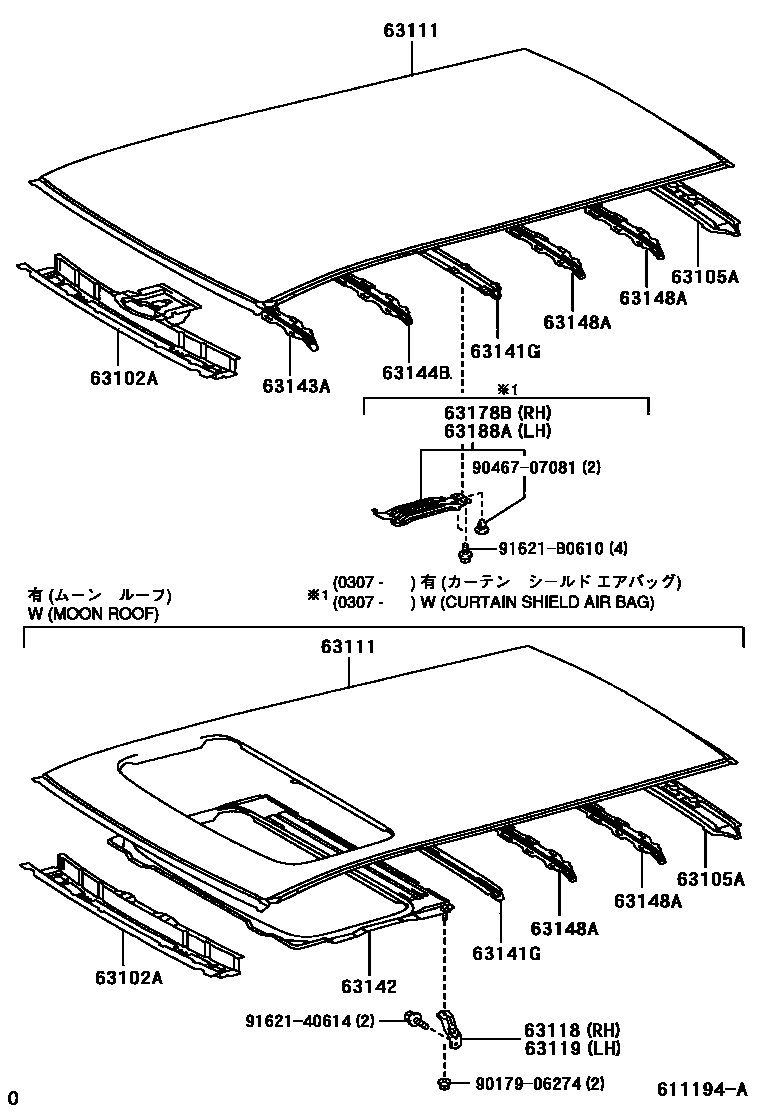

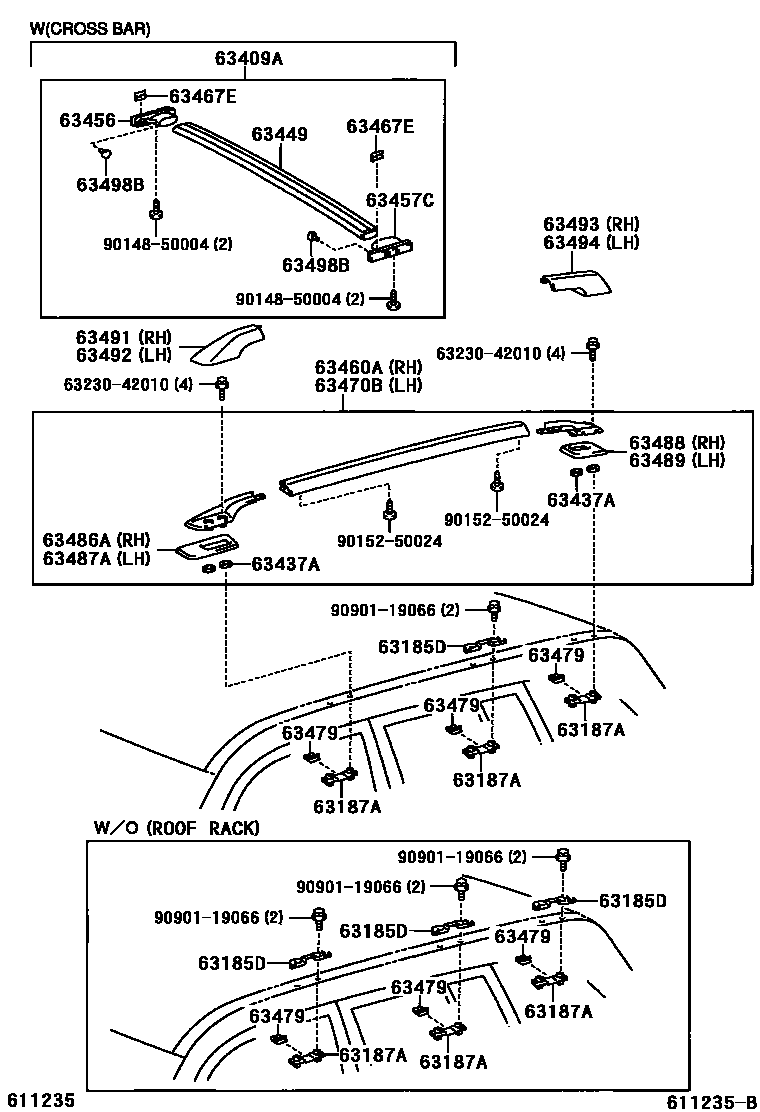

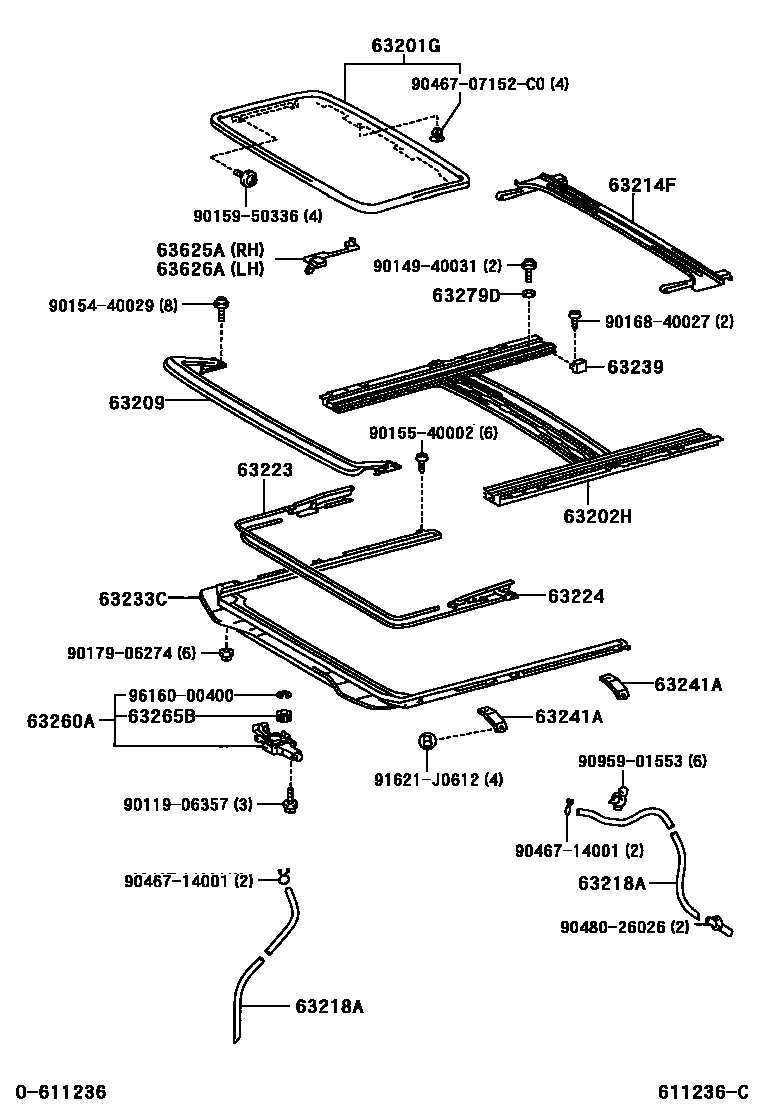

Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-42010 · 63102-42020 |
| 63105A | Back door opening frame sub-assembly | 63105-42020 |
| 63111 | roof panel | 63111-42110 · 63111-42120 |
| 63118 | Right roof panel bracket | 63118-42030 · 63118-42050 |
| 63119 | Left roof panel bracket | 63118-42030 · 63118-42050 |
| 63141G | No. 1 roof panel reinforcement | 63141-42050 · 63141-42051 · 63141-42060 · 63141-42070 |
| 63142 | No. 2 roof panel reinforcement | 63142-42900 |
| 63143A | Roof panel reinforcement | 63143-42040 |
| 63144B | No. 4 roof panel reinforcement | 63144-42020 · 63144-42021 |
| 63148A | No. 7 roof panel reinforcement | 63148-42020 |
| 63178B | No. 8 roof panel right reinforcement | 63103-42010 · 63178-42010 |
| 63185D | Front roof rack bracket | 63185-42020 |
| 63187A | Rear roof rack bracket | 63187-42010 |
| 63188A | No. 8 left roof panel reinforcement | 63106-42010 · 63188-42010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-42050 · 63201-42070 · 63201-42071 · 63201-42072 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-42030 |
| 63209 | Roof deflector sub-assembly | 63209-42040 · 63209-42041 |
| 63214F | Roof rear drain channel | 63214-33020 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-42090 · 63249-42092 · 63249-42100 · 63249-42110 · 63249-42112 |
| 63223 | Right sliding sunroof transmission cable | 63223-33020 |
| 63224 | Left sliding sunroof transmission cable | 63224-33020 |
| 63233C | Sliding skylight shelf | 63233-33031 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-42040 · 63241-42050 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-42080 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63409A | Center roof rack bracket sub-assembly | 63409-42010 · 63409-42011 · 63409-42012 |
| 63437A | Roof rack No. 2 seal | 63437-42010 |
| 63449 | Roof rack side supports | 63449-42010 |
| 63456 | Roof rack brace connector | 63456-42010 · 63456-42011 |
| 63457C | No. 2 roof rack stay joint | 63457-42010 · 63457-42011 |
| 63460A | Roof right luggage rack assembly | 63460-42010 · 63460-42013 |
| 63467E | Rear roof rack panel | 63467-42010 · 63467-42011 |
| 63470B | Roof left luggage rack assembly | 63470-42010 · 63470-42013 |
| 63479 | Roof rack fixings | 63479-42010 |
| 63486A | Right front roof rack support foot cushion | 63486-42010 |
| 63487A | Left front roof rack support foot cushion | 63487-42010 |
| 63488 | Right rear roof rack foot cushion pad | 63488-42010 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-42010 |
| 63491 | Right front roof rack leg cover | 63491-42010 · 63491-42012 |
| 63492 | Left front roof rack leg cover | 63492-42010 · 63492-42012 |
| 63493 | Right rear roof rack foot cover | 63493-42010 · 63493-42012 |
| 63494 | Left rear roof rack leg cover | 63494-42010 · 63494-42012 |
| 63498B | roof rack cover | 63498-42010 · 63498-42011 · 63498-42030 |
| 63625A | Right sliding sunroof guide block | 63625-33030 |
| 63626A | Left sliding sunroof guide block | 63626-33030 |
