Toyota RAV4 地板垫和消声垫 — Figure 5854

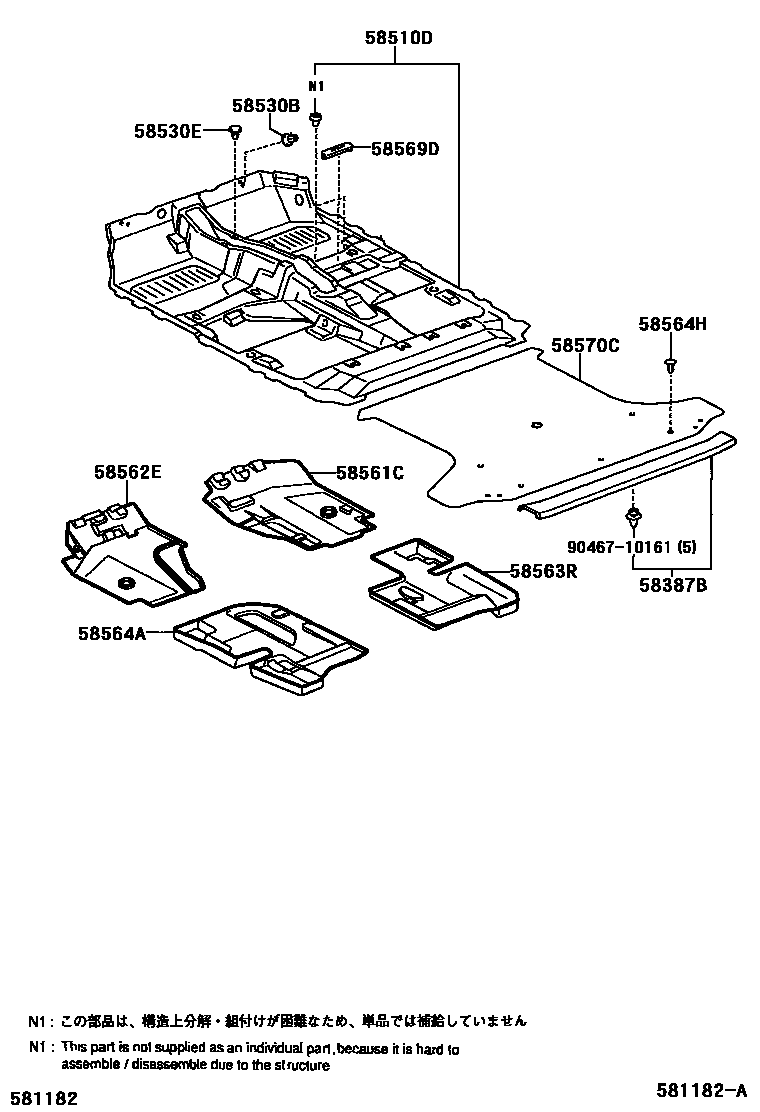

Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58530B | Clip (for front carpet) | 90467-09167 |
| 58530E | Clip (for front floor and rear felt pad) | 90467-09118 |
| 58561C | Front floor silencer No. 1 | 58561-42010 · 58561-42020 |
| 58562E | Front floor silencer No. 2 | 58562-42010 · 58562-42020 · 58562-42050 · 58562-42060 |
| 58563R | Front floor silencer No. 3 | 58563-42010 · 58563-42030 |
| 58564A | Front floor silencer No. 4 | 58564-42010 · 58564-42030 |
