Toyota RAV4 Spare tire rack — Figure 5153

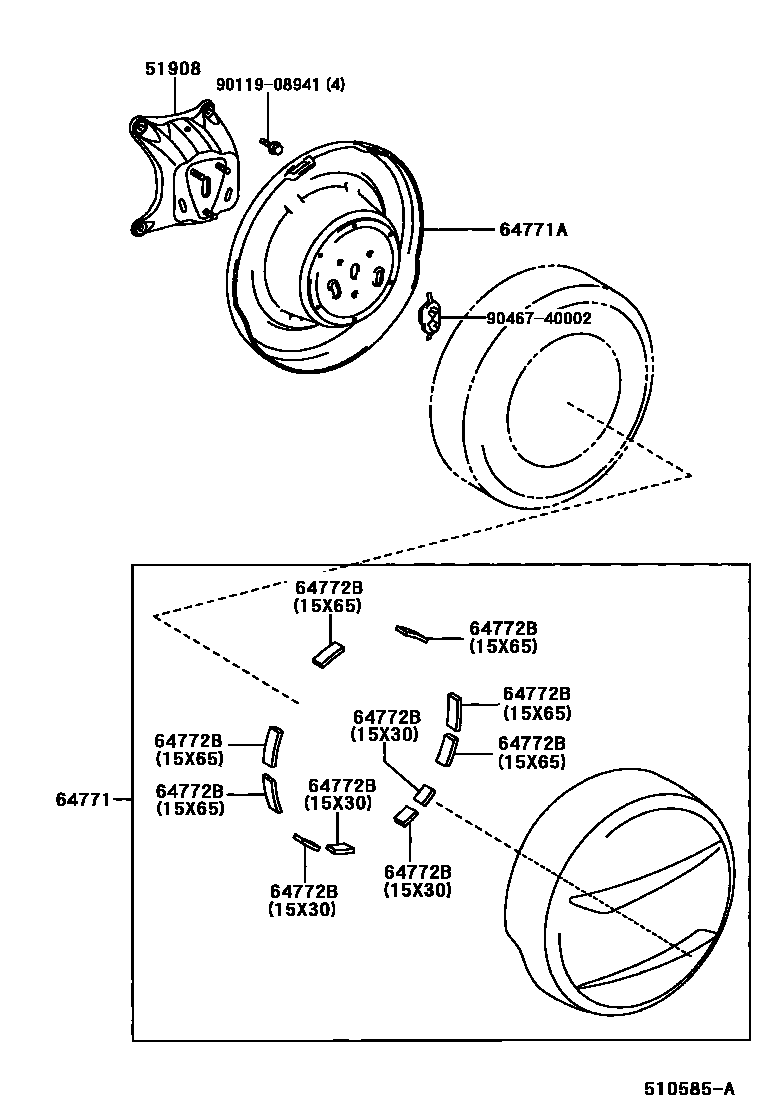

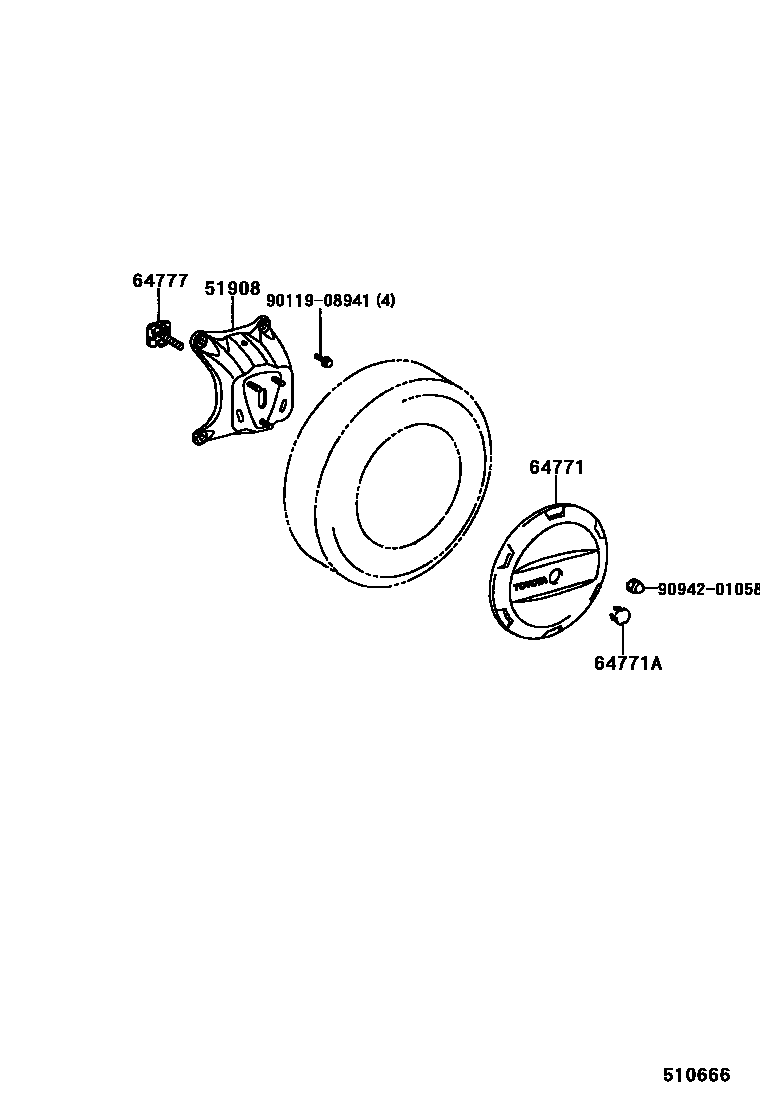

Toyota RAV4 EPC diagram 5153, Spare tire rack, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51908 | Spare tire rack bracket sub-assembly | 51908-42020 |
| 64771 | Spare Wheel Cover | 64771-42070 · 64771-42080 · 64771-42090 |
| 64771A | Spare Wheel Cover | 64773-42010 · 64773-42020 · 64773-42030 |
| 64772B | Spare tire cover liner | 64772-42010 · 64772-42020 |
| 64777 | Spare tire cover clip | 64777-42020 |
