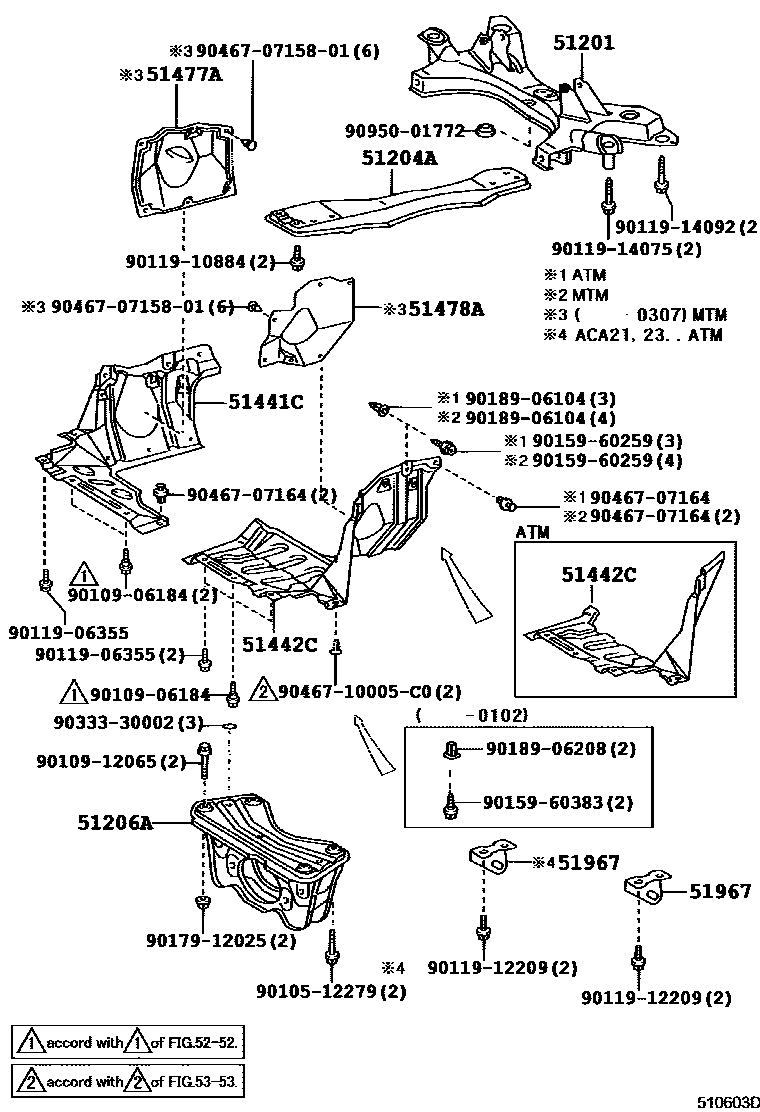

Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152
Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-42050 · 51201-42060 |
| 51204A | Engine center mount beam sub-assembly | 51204-12120 |
| 51206A | Rear suspension cross member sub-assembly | 51206-42040 |
| 51441C | Engine right bottom cover | 51441-42050 |
| 51442C | Engine left bottom cover | 51442-42060 · 51442-42070 |
| 51477A | Engine right bottom cover silencer panel | 51477-42010 |
| 51478A | Engine left bottom cover silencer panel | 51478-42010 |
| 51967 | Rear transport hook | 51967-42020 |
