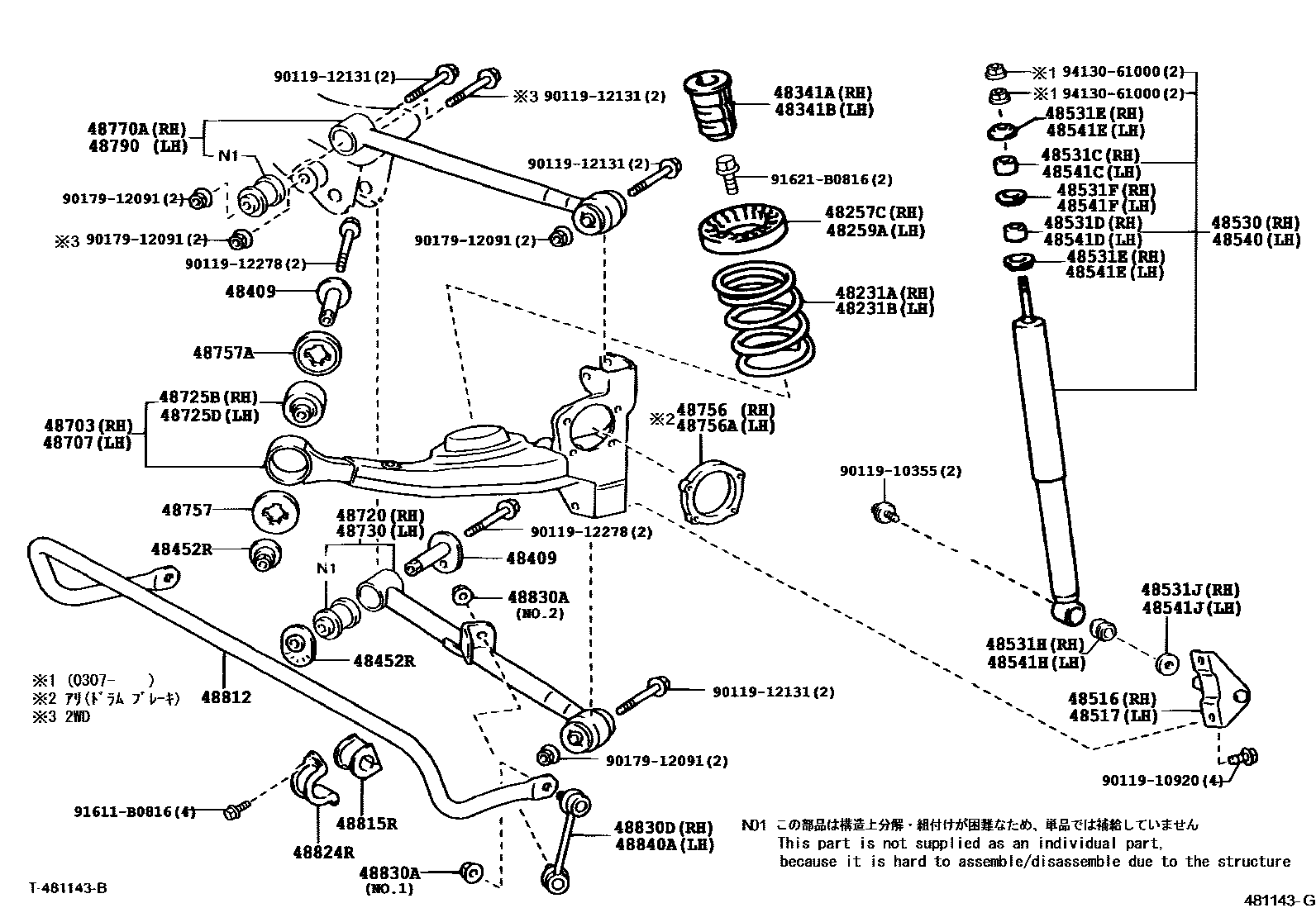

Toyota RAV4 Rear Spring & Shock Absorber — Figure 4804
Toyota RAV4 EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48231A | Right rear coil spring | 48231-42110 · 48231-42130 |
| 48231B | Left rear coil spring | 48231-42110 · 48231-42130 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-42020 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-42020 |
| 48341A | No. 1 right rear spring buffer block | 48306-42050 |
| 48341B | No. 1 left rear spring buffer block | 48306-42050 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-42020 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-42011 |
| 48516 | Right rear shock absorber upper bracket | 48505-42020 |
| 48517 | Left rear shock absorber upper bracket | 48506-42020 |
| 48530 | Right rear shock absorber assembly | 48531-49215 · 48531-49285 |
| 48531C | No. 1 right rear shock absorber cushion | 90948-01031 |
| 48531D | No. 2 right rear shock absorber cushion | 90948-01018 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90948-02186 |
| 48531F | No. 2 buffer pad block (for right rear shock absorber) | 90948-02007 |
| 48531H | Bushing (for right rear shock absorber) | 90385-16001 |
| 48531J | Right rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48540 | Left rear shock absorber assembly | 48531-49215 · 48531-49285 |
| 48541C | Left rear shock absorber No. 1 cushion pad | 90948-01031 |
| 48541D | Left rear shock absorber No. 2 cushion pad | 90948-01018 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90948-02186 |
| 48541F | Crash pad block No. 2 (for left rear shock absorber) | 90948-02007 |
| 48541H | Bushing (for left rear shock absorber) | 90385-16001 |
| 48541J | Left rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48703 | Right rear suspension arm sub-assembly | 48710-42010 |
| 48707 | Left rear suspension arm sub-assembly | 48720-42030 |
| 48720 | Right lower control arm assembly | 48720-42020 |
| 48725B | Rear suspension No. 1 arm bushing | 48725-42080 |
| 48725D | Rear suspension No. 3 arm bushing | 48725-42080 |
| 48730 | Left lower control arm assembly | 48730-42020 |
| 48756 | Right rear suspension arm | 48756-42020 |
| 48756A | Left rear suspension arm | 48756-42020 |
| 48757 | Rear suspension arm connector | 48757-42030 |
| 48757A | Rear suspension No. 2 arm connector | 48757-42040 |
| 48770A | Right rear upper control arm assembly | 48770-42020 |
| 48790 | Left rear upper control arm assembly | 48770-42020 |
| 48812 | rear stabilizer bar | 48812-42020 |
| 48815R | Rear stabilizer bar bushing | 48815-42040 |
| 48824R | Rear stabilizer bar bracket | 48824-42020 |
| 48830A | Nut (for rear stabilizer link) | 90179-10183 · 90179-10222 |
| 48830D | Right rear stabilizer bar link assembly | 48830-42010 |
| 48840A | Left rear stabilizer bar link assembly | 48840-42010 |
