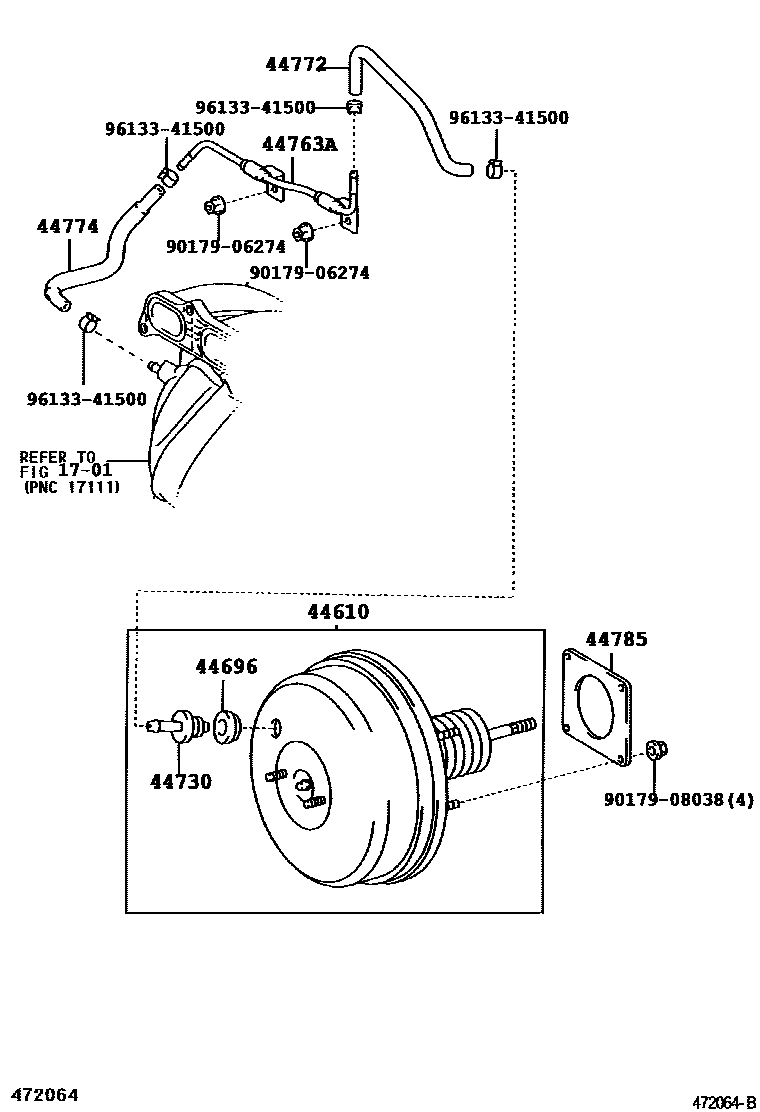

Toyota RAV4 制动助力器和真空管 — Figure 4703
Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42130 · 44610-42131 · 44610-42170 · 44610-42240 |
| 44696 | One-way valve seal | 90480-24015 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-28030 · 44730-30010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-42040 |
| 44772 | Hoses (check valve to connector tube) | 44772-42050 |
| 44774 | Hoses (joints to connector tubes) | 44774-42030 |
| 44785 | brake booster pad | 44785-20020 |
