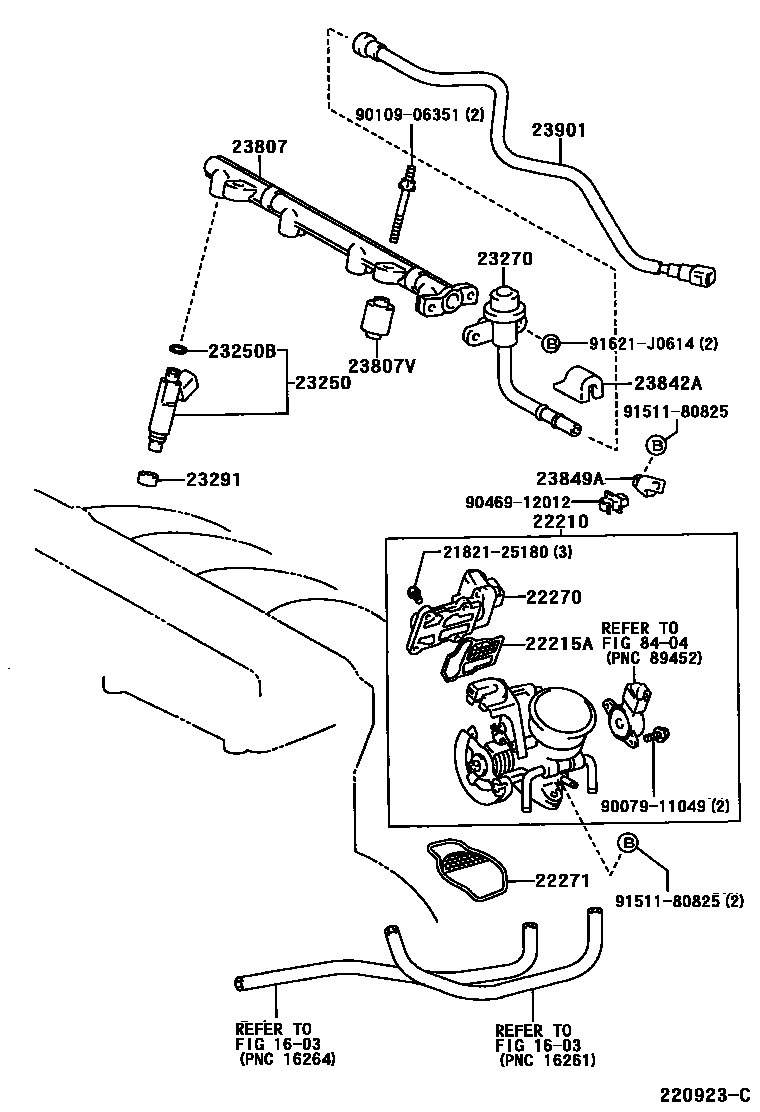

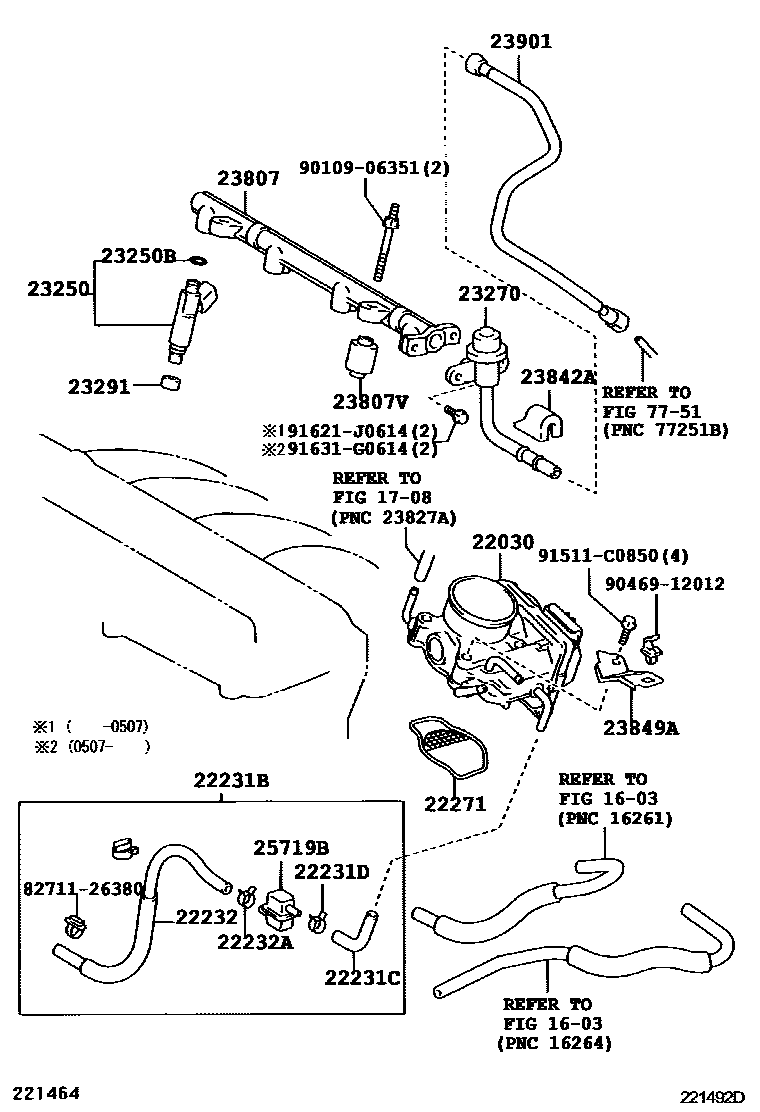

Toyota RAV4 燃油喷射系统 — Figure 2211
Toyota RAV4 EPC diagram 2211, 燃油喷射系统, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-28060 |
| 22210 | Throttle body assembly | 22210-28040 · 22210-28050 |
| 22215A | Idle speed control valve gasket | 22215-28041 · 22215-28042 |
| 22231B | throttle body hose | 22231-28030 |
| 22231C | No. 1 throttle body hose | 22231-28040 |
| 22231D | Clip or clip (for throttle body hose) | 90467-12056 |
| 22232 | No. 2 throttle body hose | 22232-28010 |
| 22232A | Clip or clip (for throttle body hose) | 90467-12056 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-28010 |
| 22271 | Throttle body gasket | 22271-28020 |
| 23020A | Fuel pressure regulator assembly with fuel injection pump | 23020-28010 |
| 23217A | fuel pump filter | 23217-74021 |
| 23220P | fuel pump assembly | 23221-28030 |
| 23225 | fuel pump septum | 23225-28010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23239B | fuel pump filter seal | 23239-21010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-28050 · 23209-28080 |
| 23250B | O-ring (for fuel injector) | 90301-07024 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-28020 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07041 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23300Z | Fuel filter (for fuel tank) | 23300-28030 · 23300-28040 |
| 23807 | Oil pipe sub-assembly | 23814-28030 · 23814-28031 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08053 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23849A | Fuel pipe bracket | 23849-28010 · 23849-28030 |
| 23901 | Fuel pipe sub-assembly | 23901-28030 · 23901-28220 |
| 25719B | Vacuum pressure tank | 25719-28040 · 25719-62050 |
