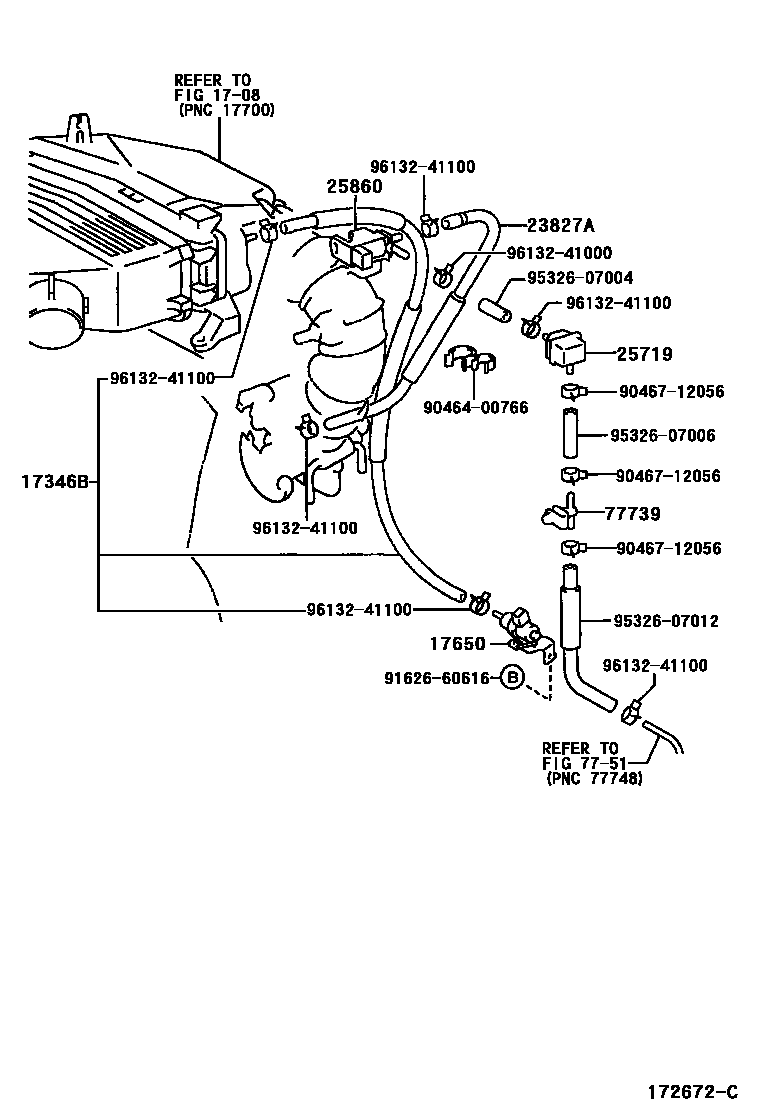

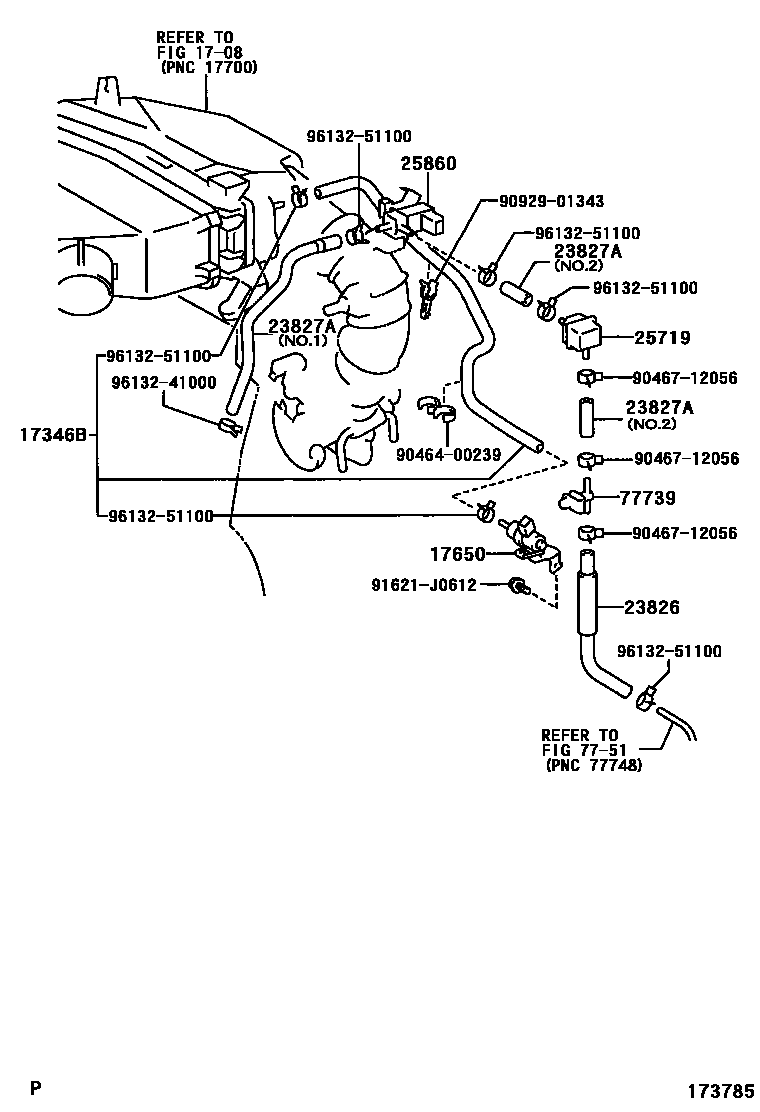

Toyota RAV4 vacuum tube — Figure 1708
Toyota RAV4 EPC diagram 1708, vacuum tube, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17346B | No. 6 air hose | 17346-28010 · 17346-28020 |
| 17650 | Vacuum switch valve assembly | 90910-12233 |
| 23826 | No. 1 fuel vapor supply hose | 23826-28130 |
| 23827A | No. 2 fuel vapor supply hose | 23827-28040 · 23827-28190 · 23827-28210 |
| 25719 | Vacuum pressure tank | 25719-28020 · 25719-62040 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-28040 · 25860-28060 |
| 77739 | Steam service valve | 77739-33010 |
