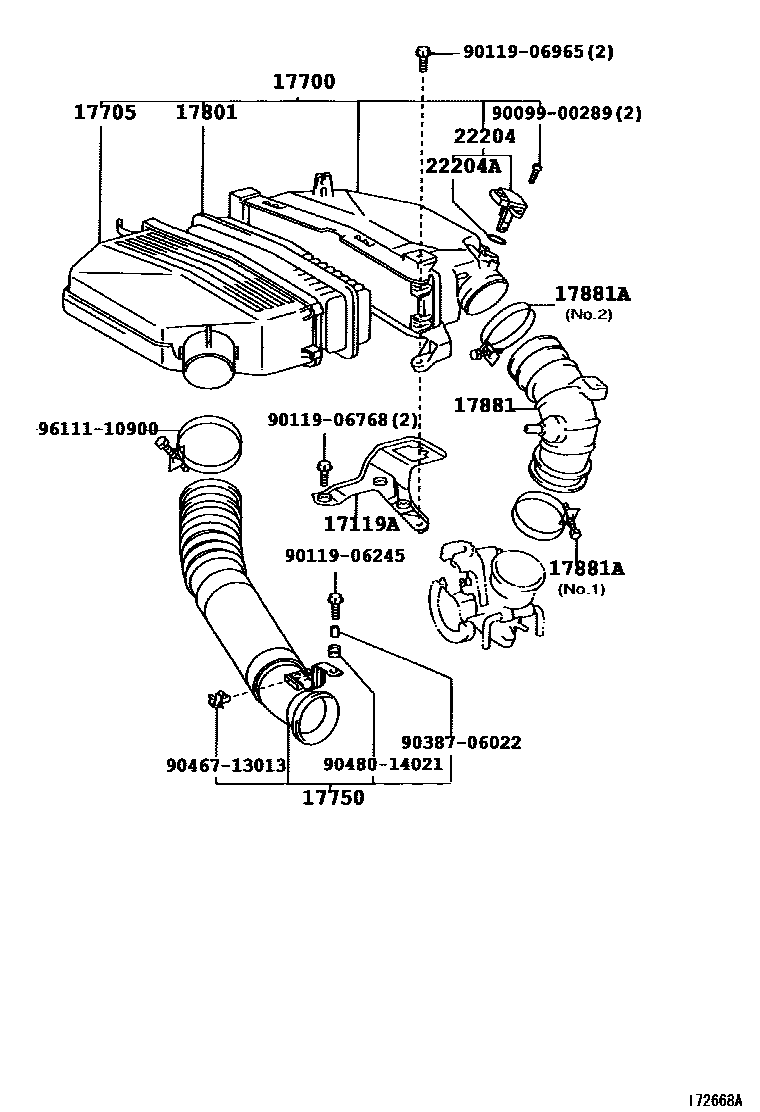

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-28010 |
| 17700 | air filter assembly | 17700-28090 · 17700-28091 · 17700-28230 · 17700-28231 |
| 17705 | Air filter cover sub-assembly | 17705-28050 · 17705-28170 |
| 17750 | Air filter air inlet cover seal assembly | 17750-28010 |
| 17801 | Air filter element sub-assembly | 17801-28010 |
| 17881 | No. 1 air cleaner hose | 17881-28040 · 17881-28180 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90466-62001 · 90466-62002 · 90467-60001 · 96111-10830 |
| 22204 | Intake air flow meter assembly | 22204-22010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
