Toyota RAV4 Exhaust Pipe — Figure 1702

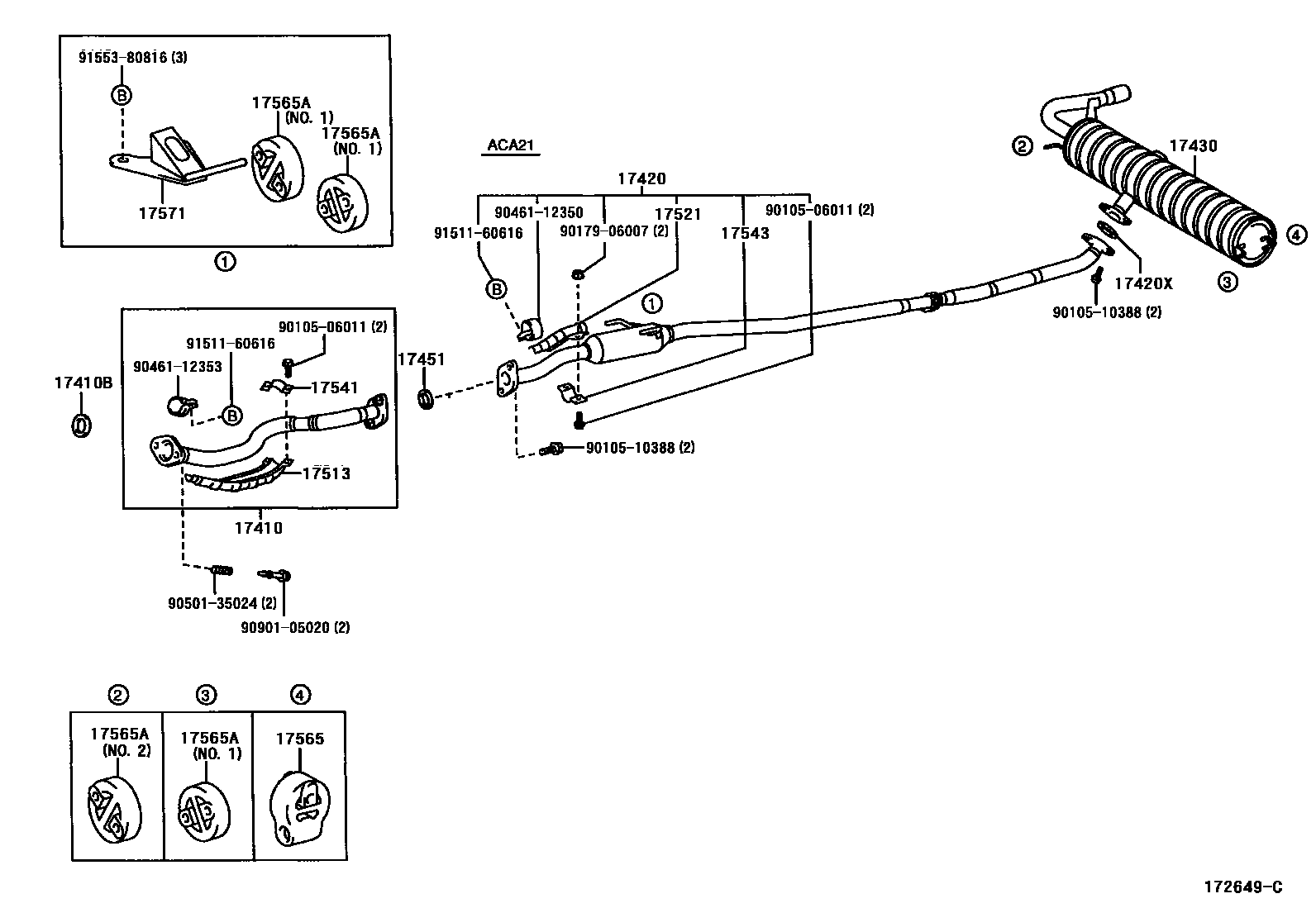

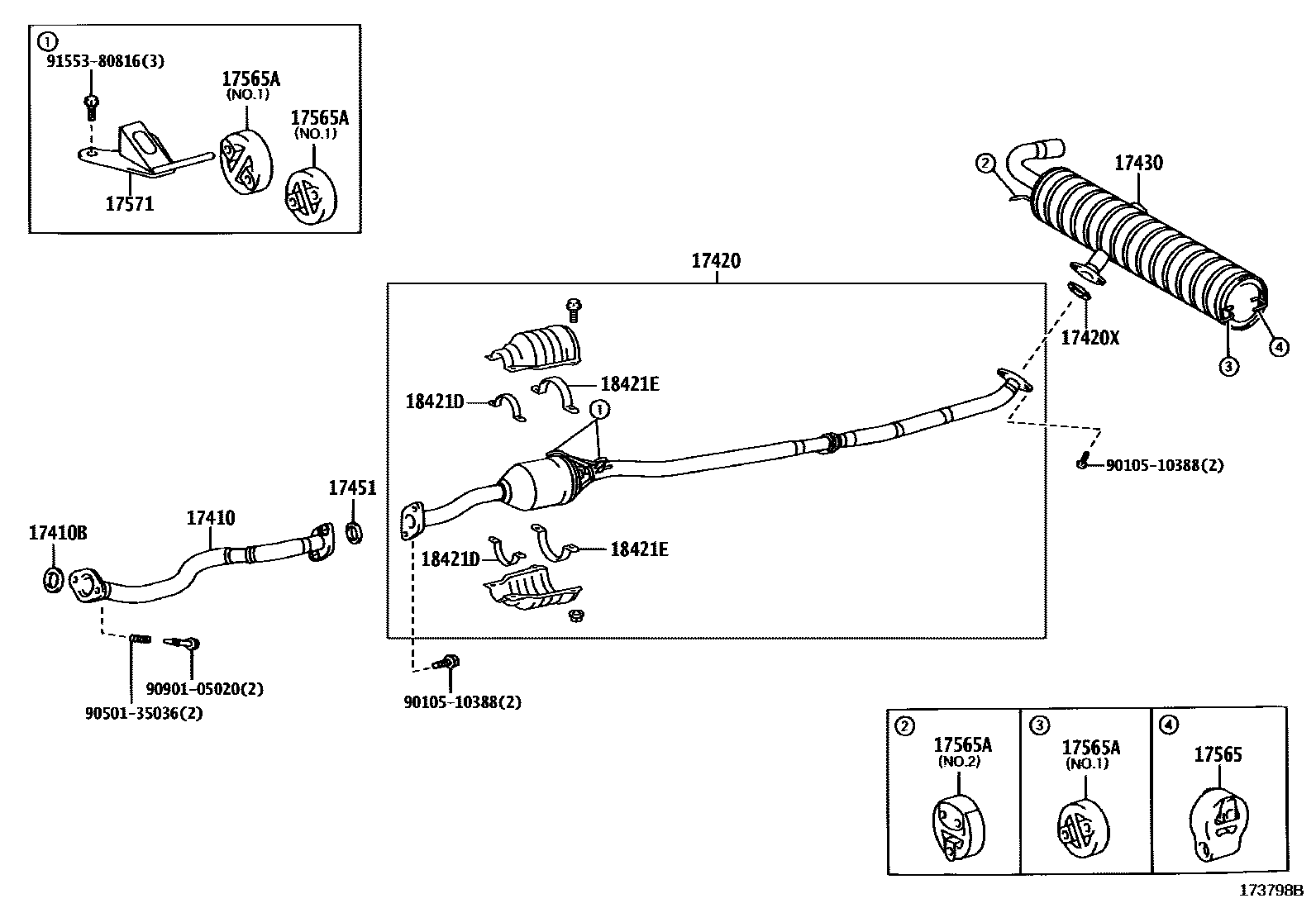

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-28190 · 17410-28460 |
| 17410B | Exhaust pipe gasket | 17451-74040 |
| 17420 | Central exhaust pipe assembly | 17420-28050 · 17420-28380 |
| 17420X | Center exhaust pipe liner | 90917-06062 |
| 17430 | Exhaust tailpipe assembly | 17430-28190 · 17430-28191 · 17430-28220 · 17430-28550 |
| 17451 | Exhaust pipe gasket | 90917-06073 |
| 17513 | No. 1 lower exhaust pipe insulation pad | 17513-28050 |
| 17521 | No. 1 front exhaust pipe protection device | 17521-28040 |
| 17541 | No. 1 exhaust pipe protection device stay | 17541-28050 |
| 17543 | No. 3 exhaust pipe protection device stay | 17543-13020 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-15070 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-46040 · 17565-64180 |
| 17571 | No. 1 exhaust pipe bracket | 17571-28070 |
| 18421D | ETAI, PROTECTEUR CONVERTISSEUR, CENTRAL, NO.1 | 17541-68010 |
| 18421E | ETAI, PROTECTEUR CONVERTISSEUR, CENTRAL, NO.2 | 18421-22020 |
