Toyota RAV4 Manifold — Figure 1701

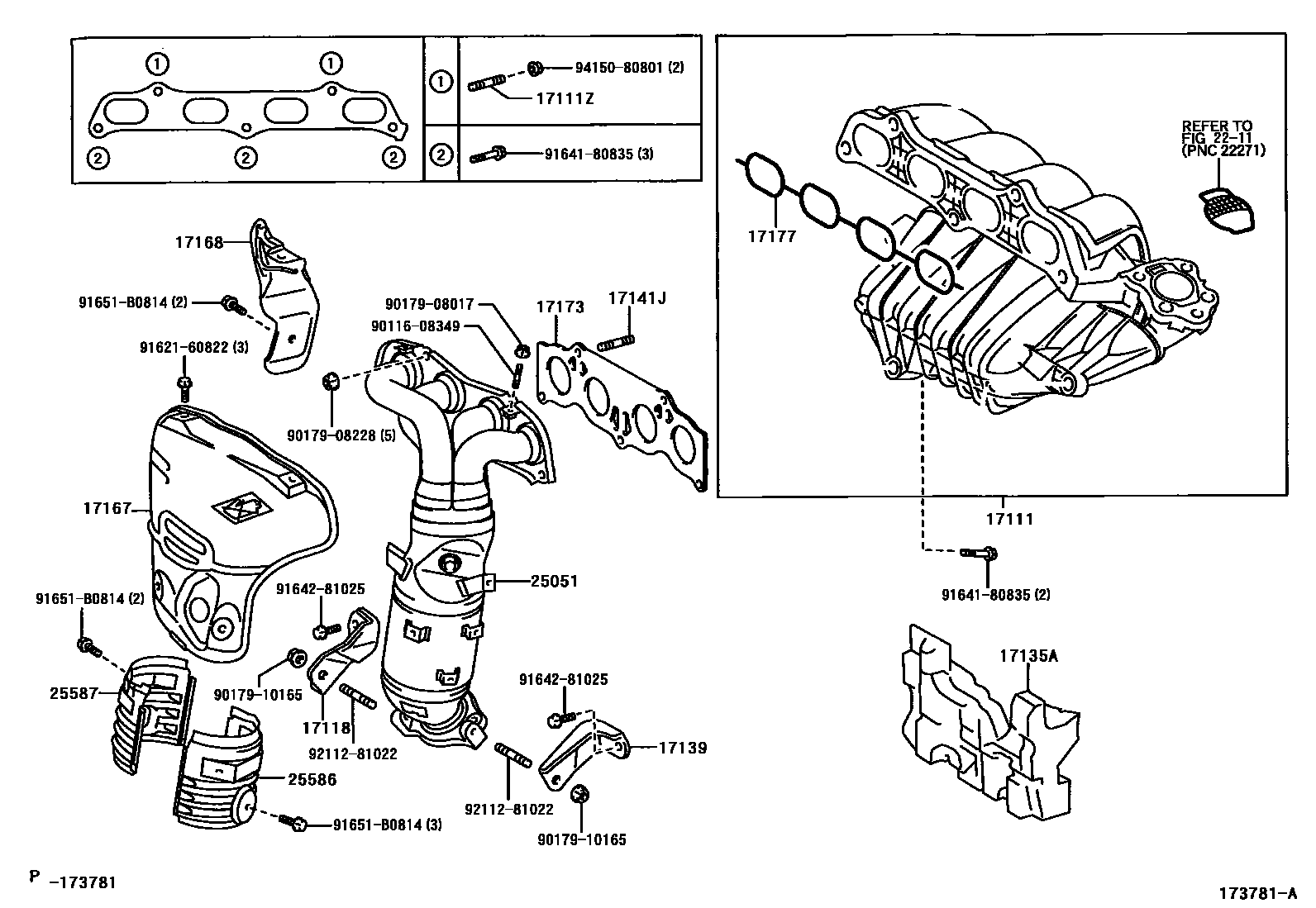

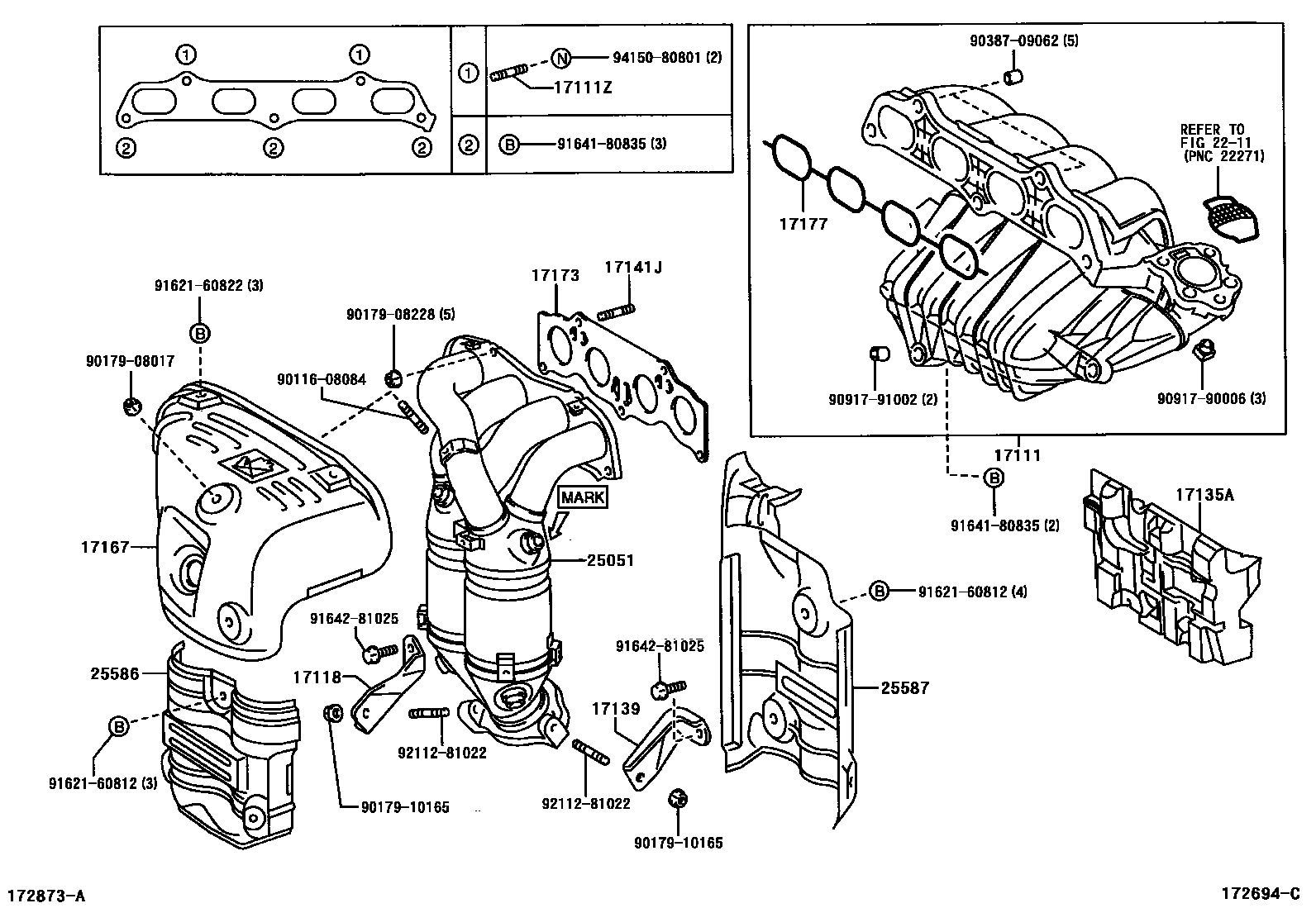

Toyota RAV4 EPC diagram 1701, Manifold, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-28010 · 17120-28090 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 |
| 17118 | Manifold stays | 17118-28020 |
| 17135A | Intake manifold No. 1 heat shield | 17135-28010 · 17135-28011 |
| 17139 | No. 2 manifold stay | 17139-28010 |
| 17141J | Studs (for right exhaust manifold) | 90126-08037 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-28010 · 17167-28040 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-28011 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-28010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-28010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-28050 · 25051-28080 · 25051-28081 · 25051-28220 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-28010 · 25586-28031 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-28010 · 25587-28041 |
