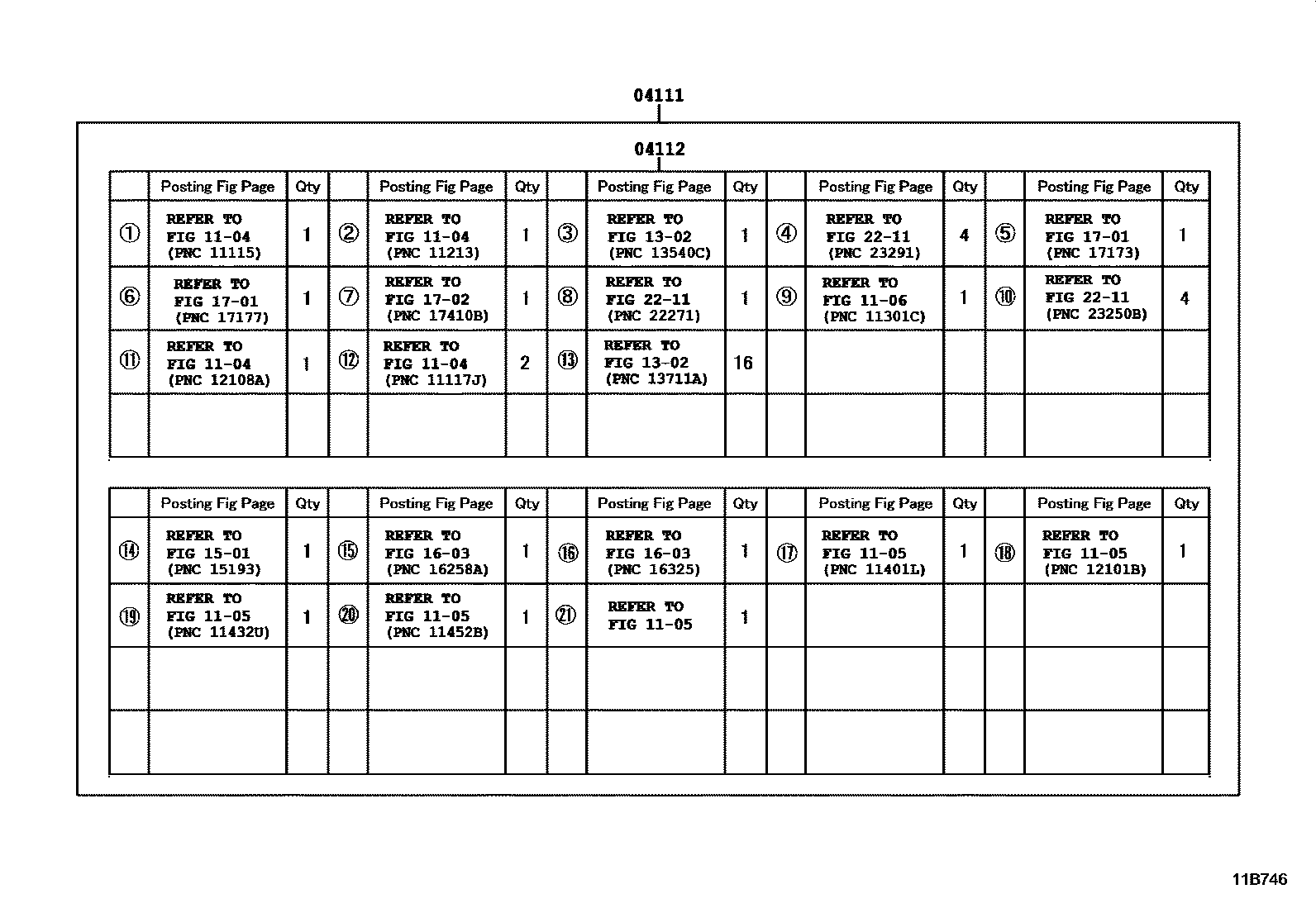

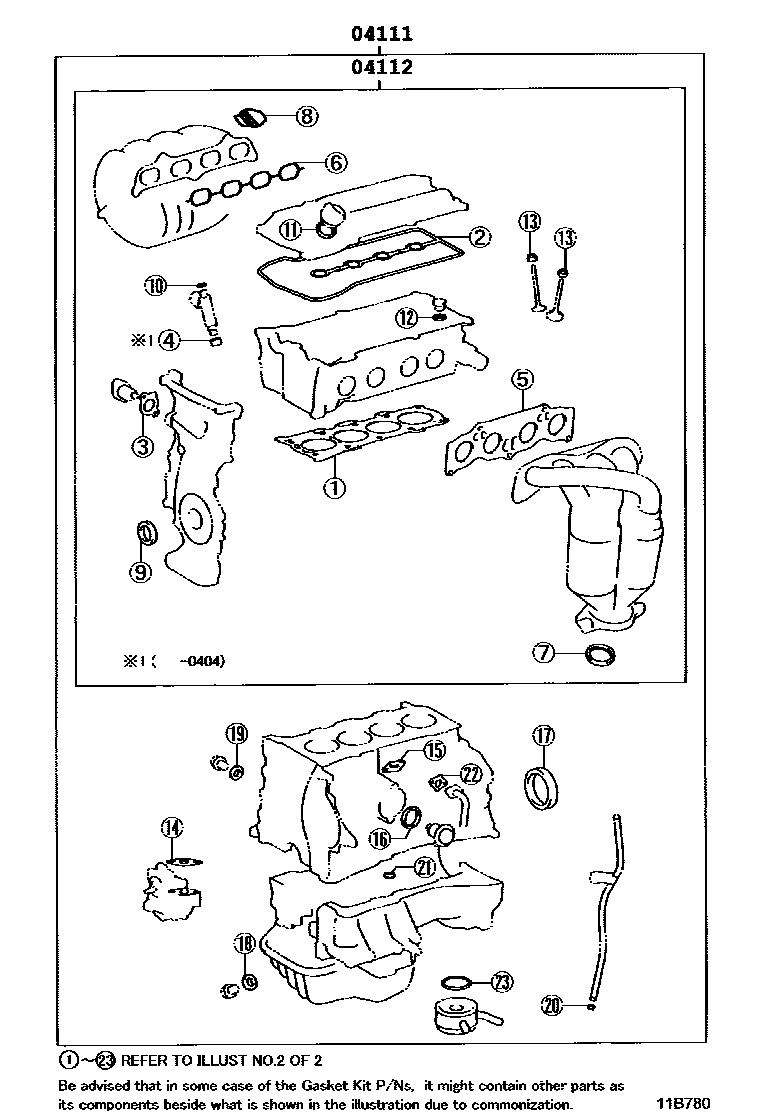

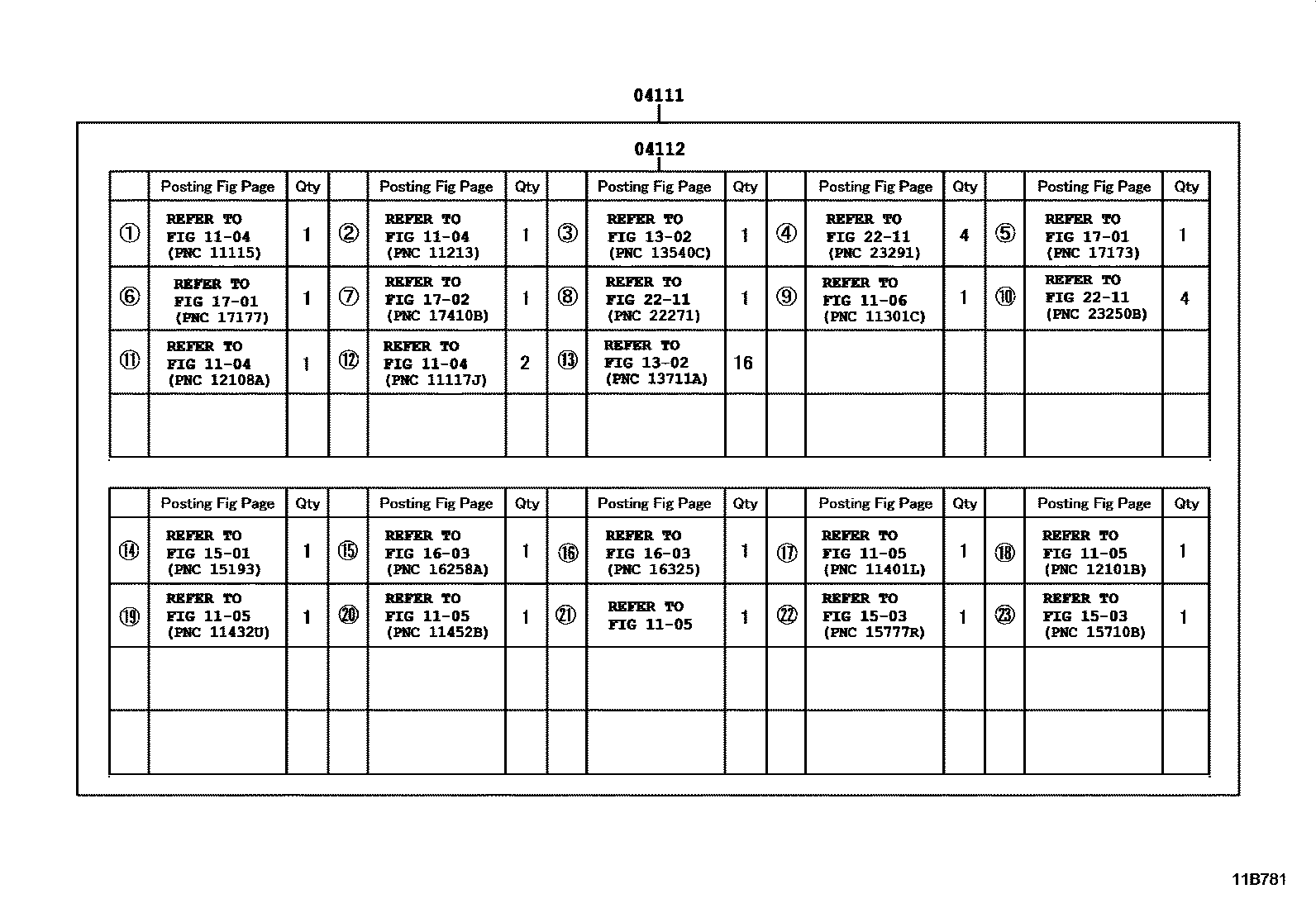

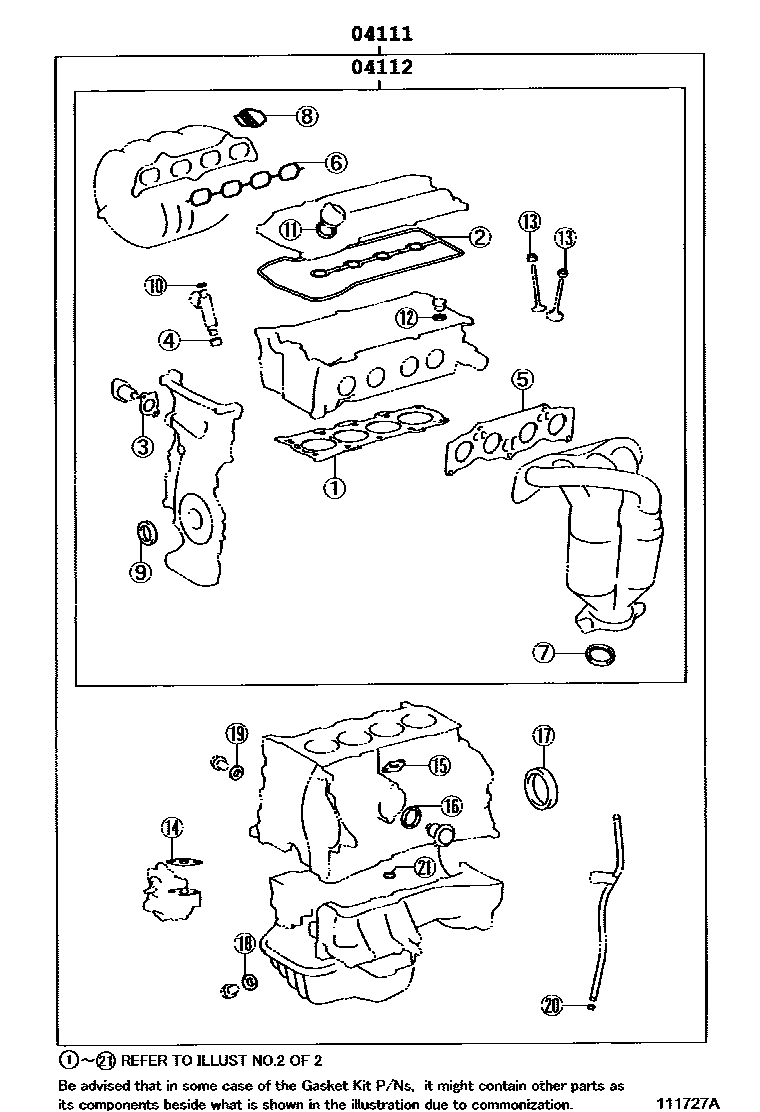

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-28070 · 04111-28071 · 04111-28072 · 04111-28073 · 04111-28074 · 04111-28180 · 04111-28250 · 04111-28251 · 04111-28600 · 04111-28601 |
| 04112 | Engine valve grinding pad assembly | 04112-28070 · 04112-28071 · 04112-28072 · 04112-28073 · 04112-28074 · 04112-28180 · 04112-28250 · 04112-28251 · 04112-28252 |
