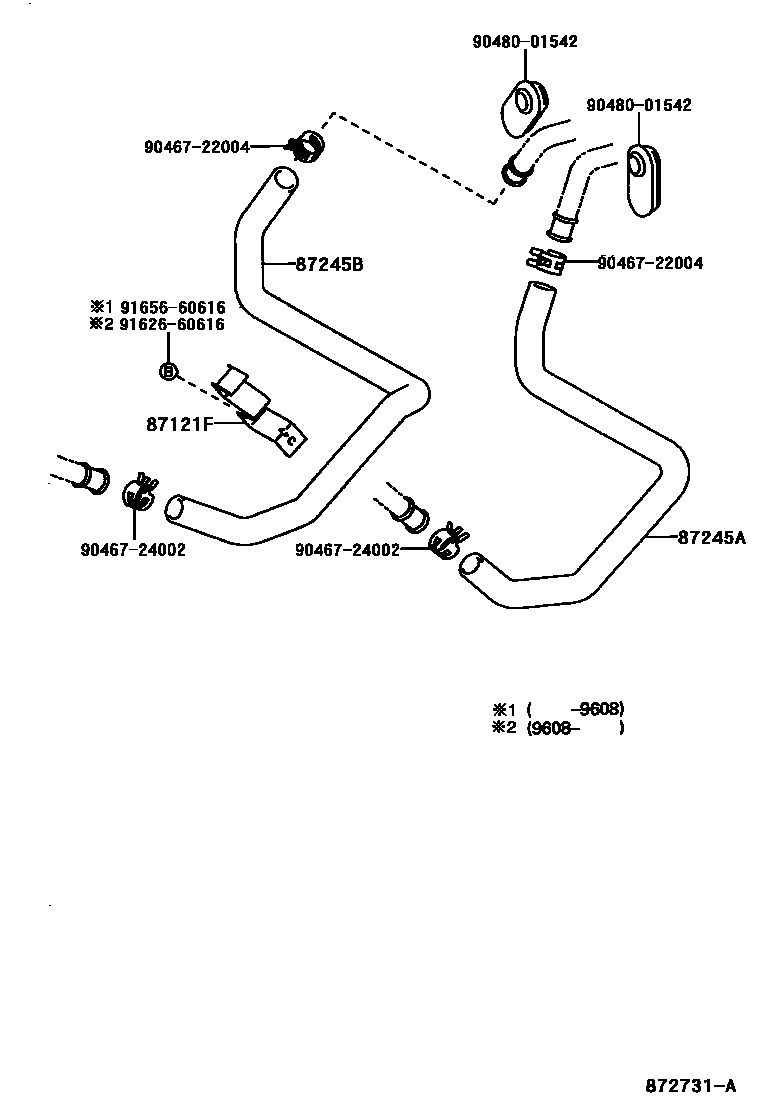

Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716
Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87121F | heater bracket | 87121-42010 |
| 87245A | Heater water inlet hose A | 87245-42030 · 87245-42090 |
| 87245B | Heater water inlet hose B | 87245-42040 · 87245-42100 |
