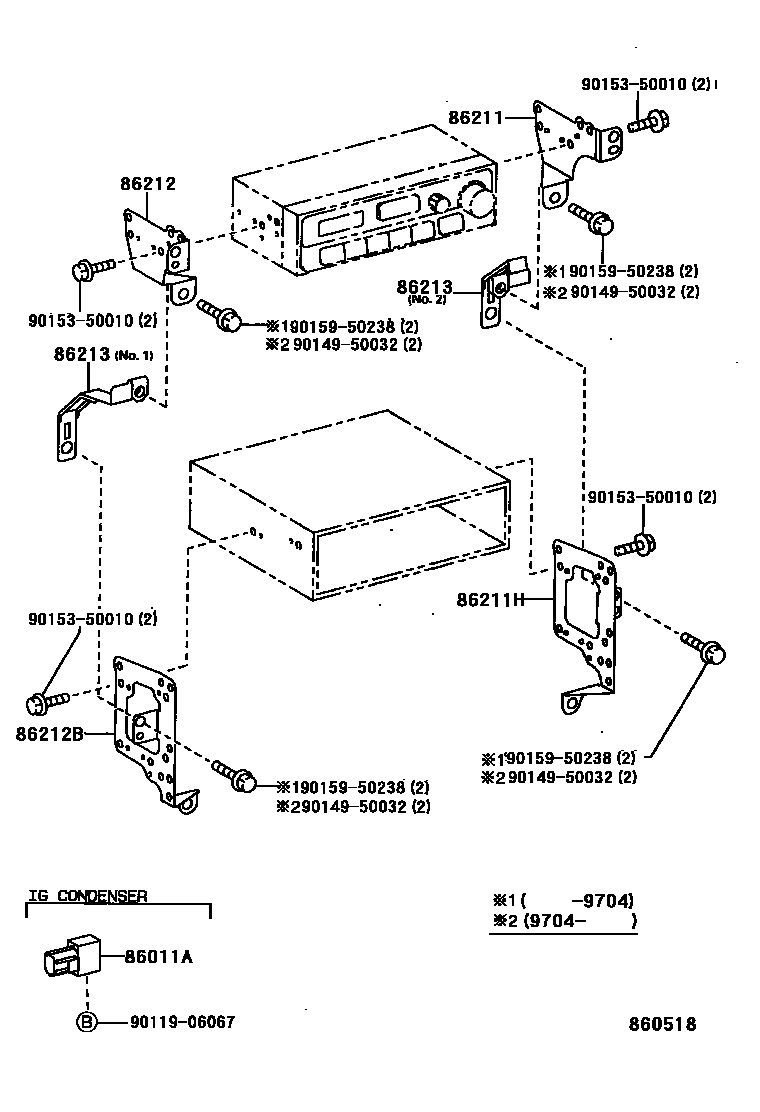

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04083 · 90980-04130 |

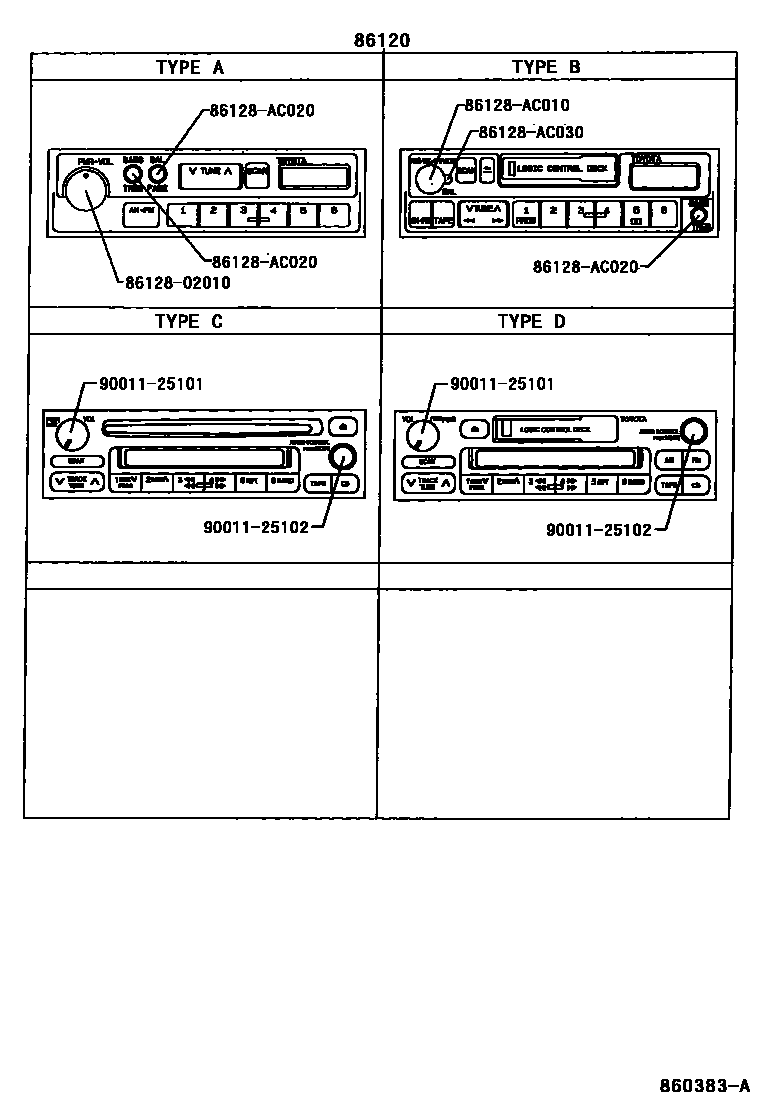

| 86120 | Radio assembly | 86120-02140 · 86120-02150 · 86120-04090 · 86120-AC010 |
| 86211 | No. 1 radio bracket | 86211-42010 |
| 86211H | No. 2 radio bracket | 86211-42020 |
| 86212 | No. 2 radio bracket | 86212-42010 |
| 86212B | No. 1 radio bracket | 86212-42020 |
| 86213 | No. 3 radio bracket | 86213-42030 · 86213-42040 |
