Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.

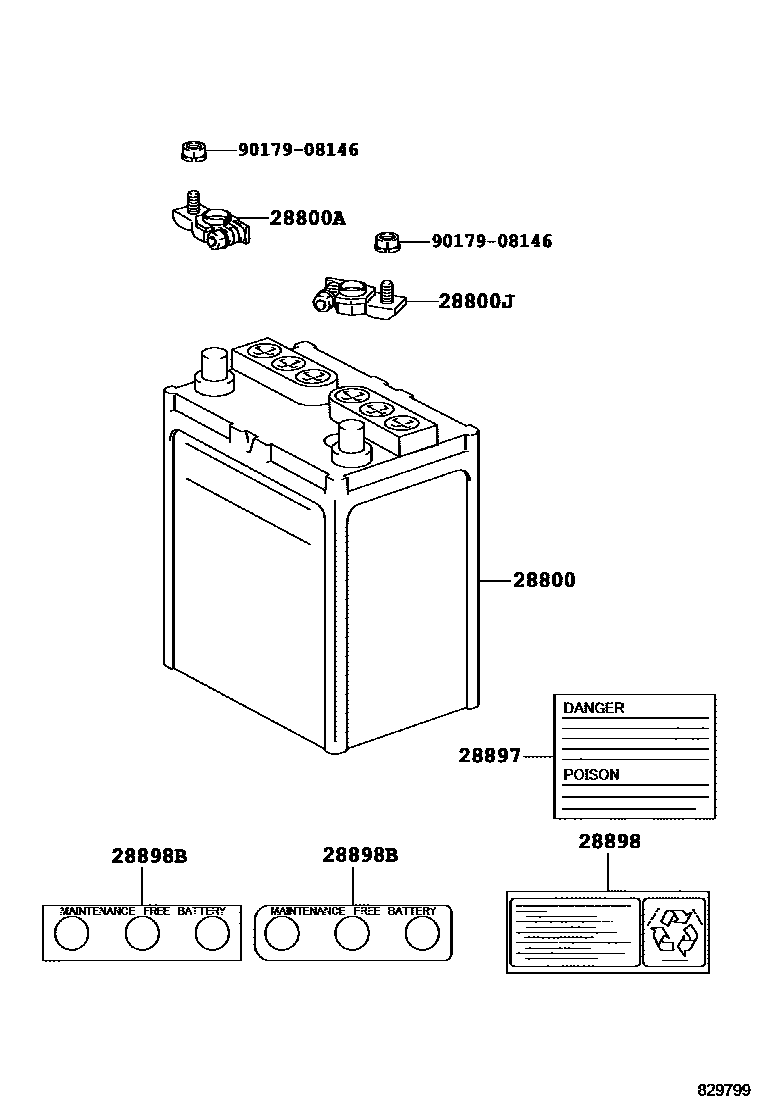

Toyota RAV4 蓄电池和蓄电池电缆 EPC diagram — 829799
蓄电池和蓄电池电缆 — 829799 (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-16141 · 28800-16150 · 28800-16151 · 28800-43261 · 28800-43262 · 28800-74120
28800Abattery positive terminal90982-05037
28800Jbattery negative terminal90982-06032
28897Battery warning nameplate28897-38010 · 28897-46020
28898battery plates28898-26010
28898Bbattery plates28898-11020 · 28898-74020
