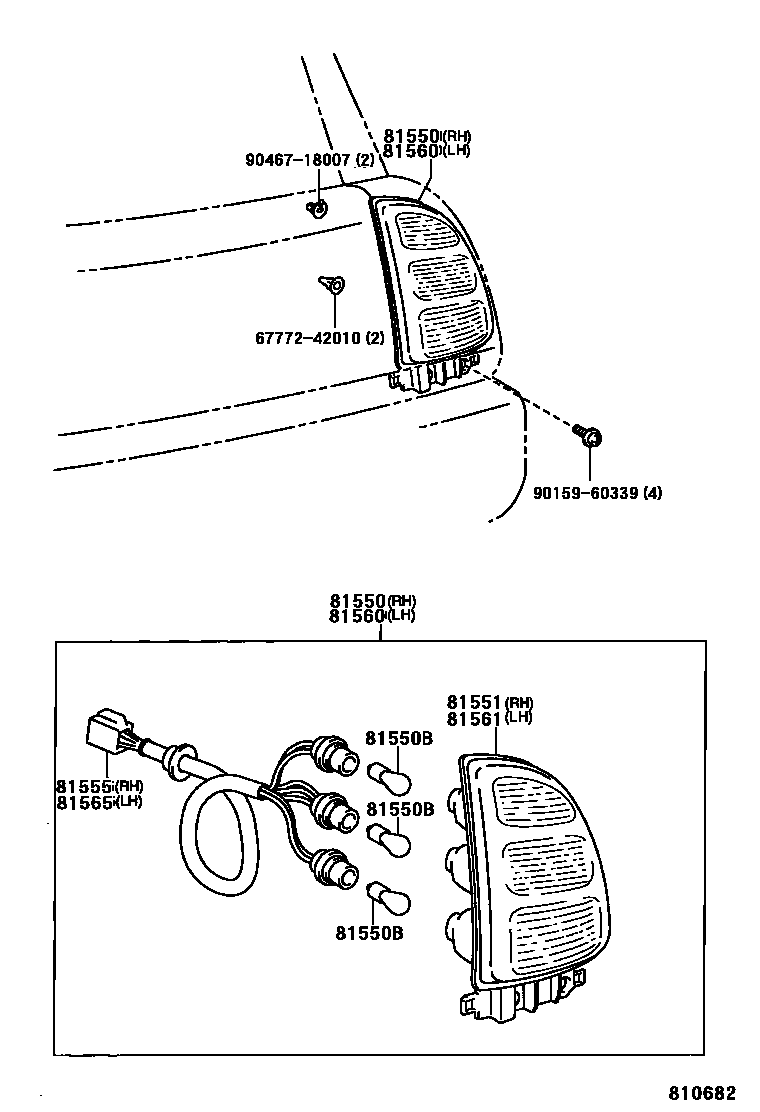

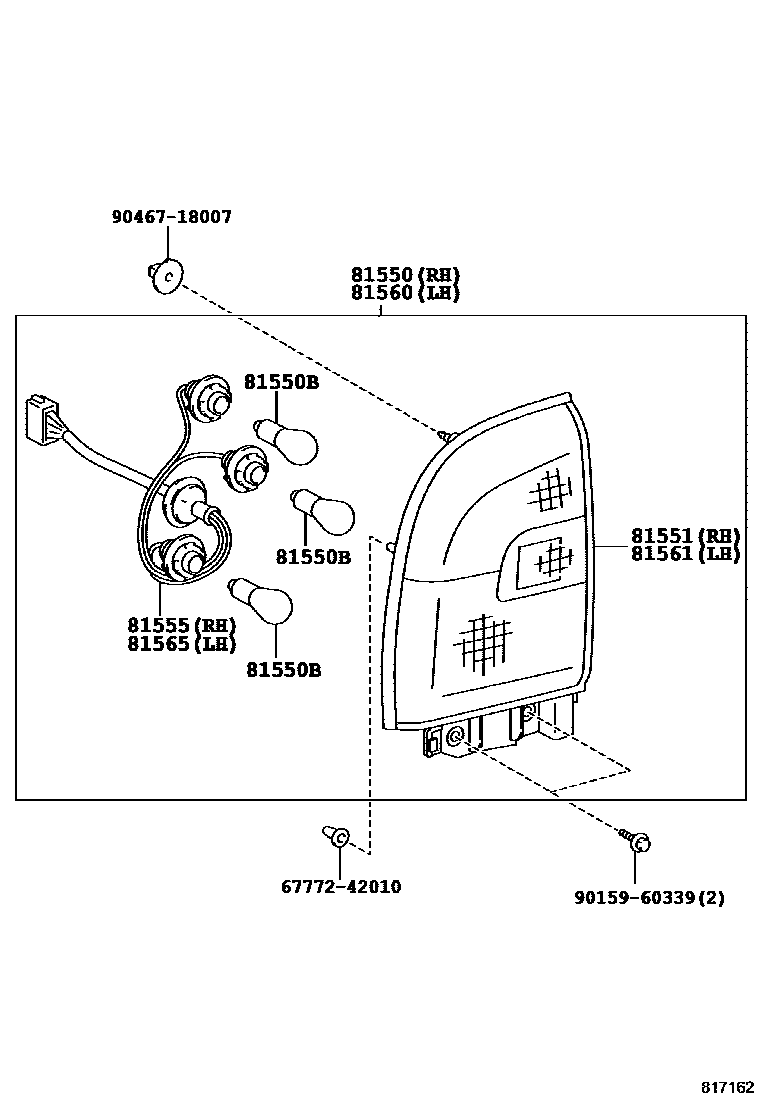

Toyota RAV4 后组合灯 — Figure 8111
Toyota RAV4 EPC diagram 8111, 后组合灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-42030 · 81550-42050 |
| 81550B | Bulb (for rear combination lights) | 90981-11042 · 90981-11043 · 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-42030 · 81551-42050 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-42020 · 81555-42050 |
| 81560 | Left rear combination light assembly | 81560-42030 · 81560-42050 |
| 81561 | Left rear combination lamp shade | 81561-42030 · 81561-42050 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-42020 · 81555-42050 |
