Toyota RAV4 accelerator pedal connecting rod — Figure 7851

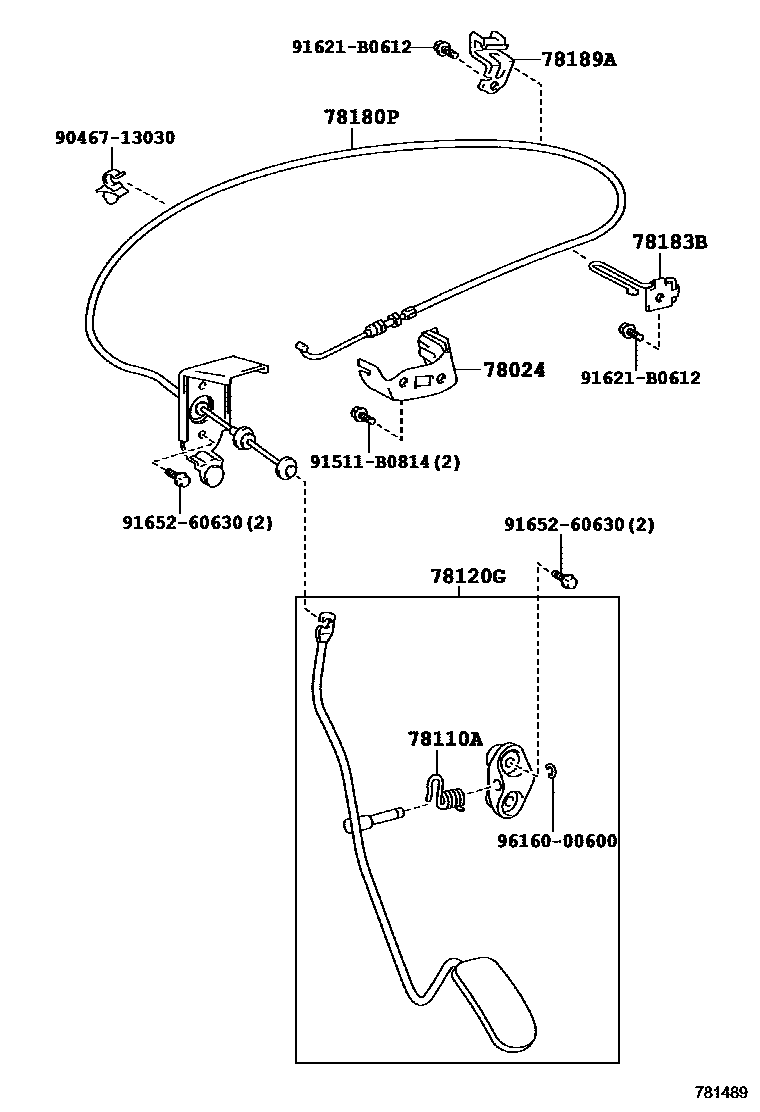

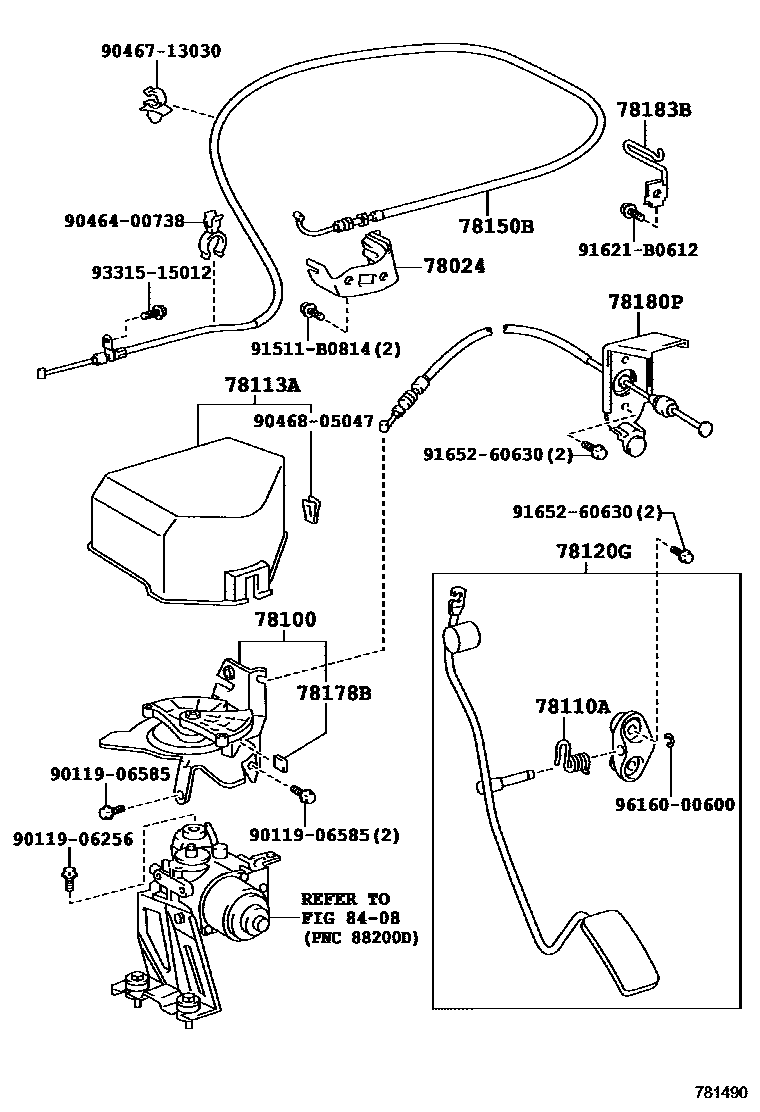

Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-20140 · 78024-44020 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-42010 |
| 78110A | Spring (for accelerator pedal lever) | 90959-03049 · 90959-03050 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-42010 |
| 78120G | Accelerator pedal lever assembly | 78120-42020 · 78120-42050 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-42010 · 78150-42011 · 78150-42020 |
| 78178B | No. 4 acceleration control tie rod bracket shock absorber | 78178-14010 |
| 78180P | Accelerator pedal control cable assembly | 78180-42020 · 78180-42030 · 78180-42031 · 78180-42060 · 78180-42070 |
| 78183B | Accelerator pedal control cable clip | 78183-42011 · 78186-44010 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-20150 |
