Toyota RAV4 seat belt — Figure 7152

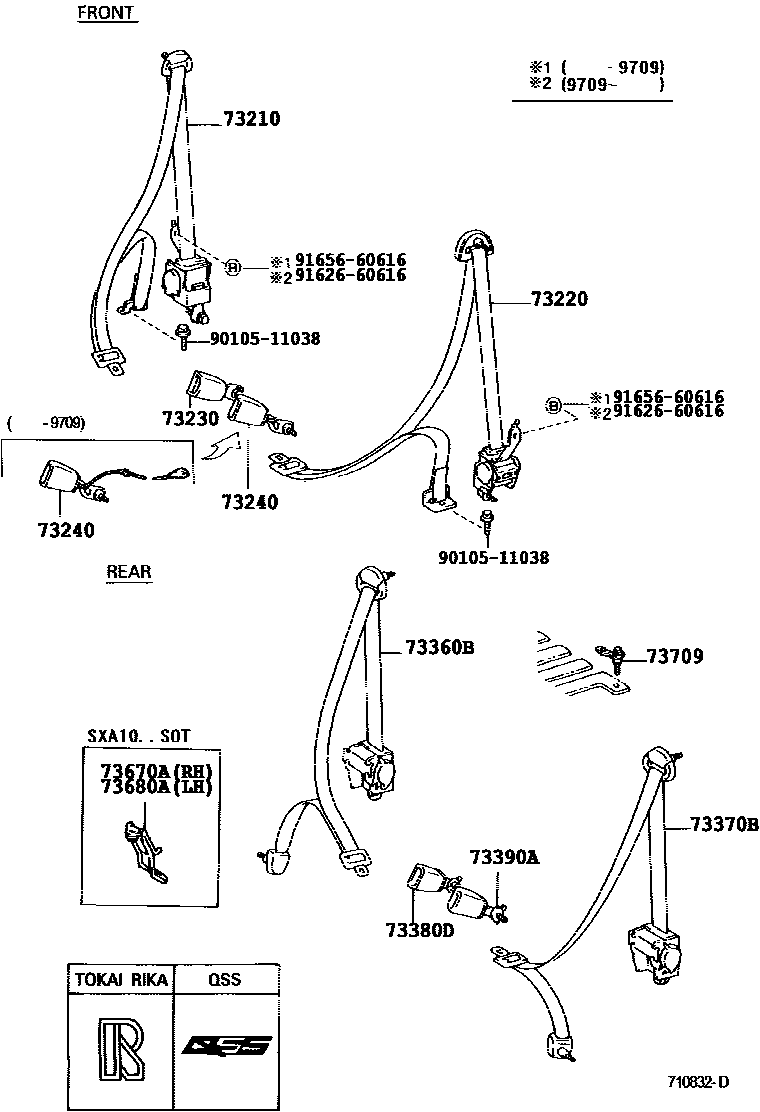

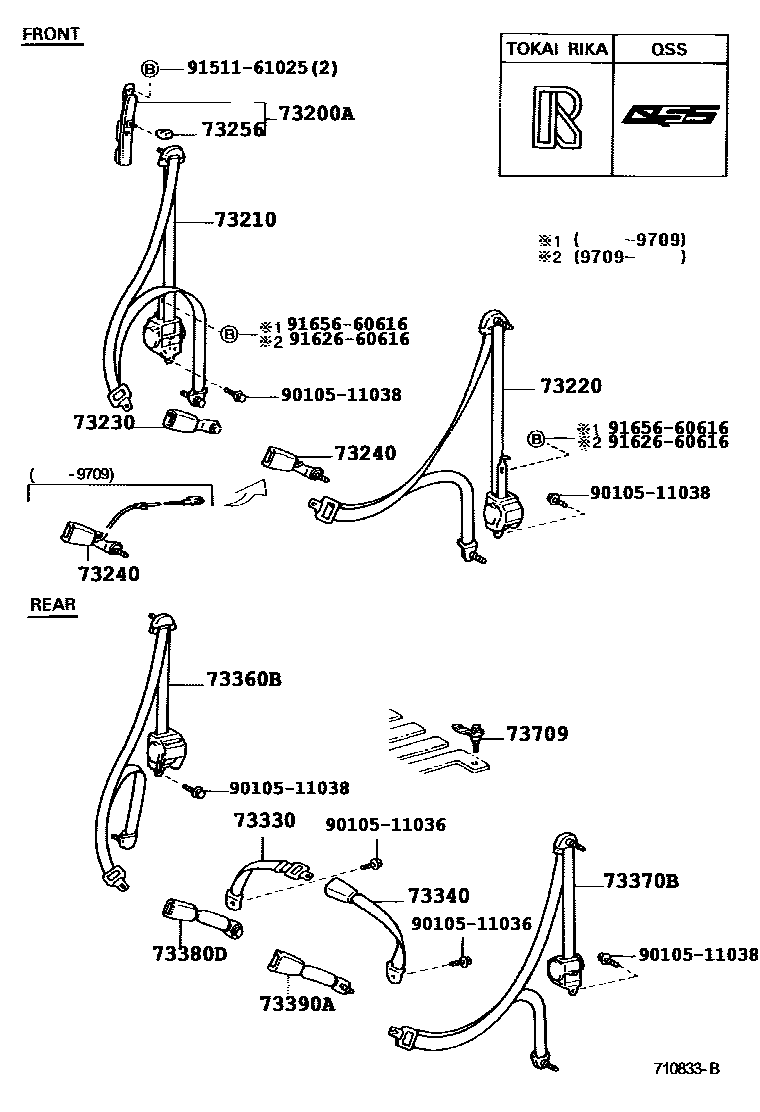

Toyota RAV4 EPC diagram 7152, seat belt, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73670A | Rear right seat outer seat belt anchor bracket assembly | 73670-42010 |
| 73680A | Rear left seat outer seat belt anchor bracket assembly | 73680-42010 |
| 73709 | Tie anchor bracket sub-assembly | 73709-12010 |
