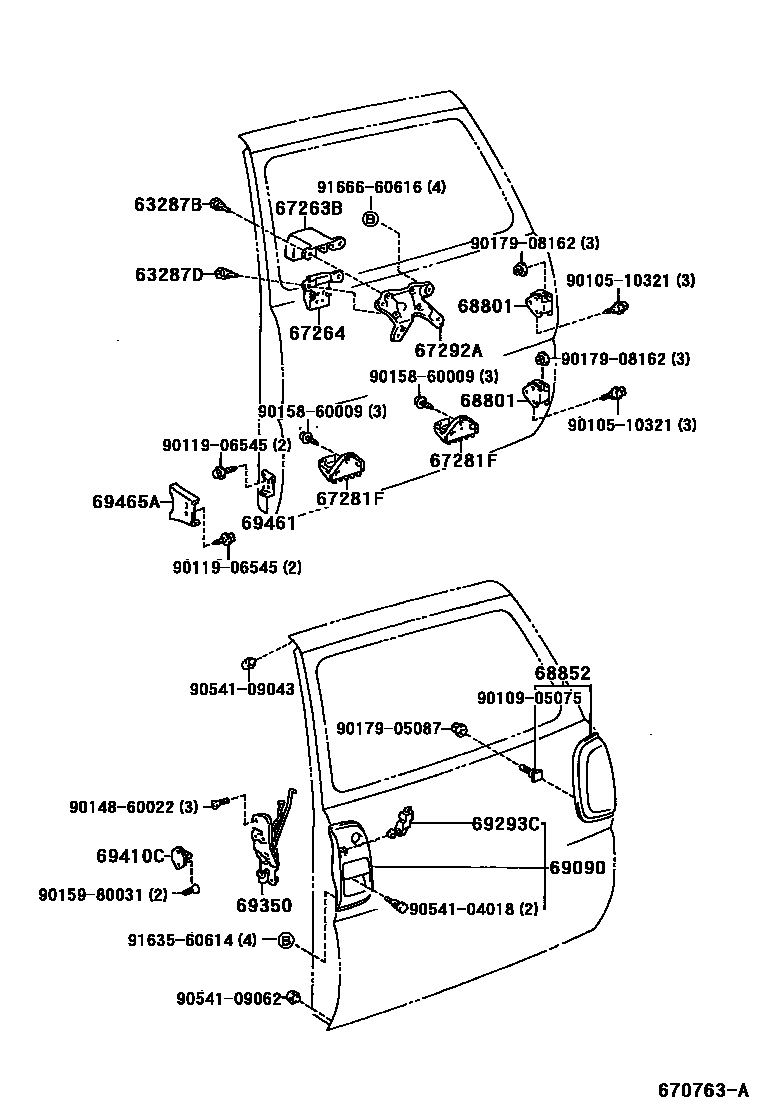

Toyota RAV4 背门锁和合页 — Figure 6762
Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67263B | No. 3 rear door stopper bracket | 67263-42010 |
| 67264 | No. 4 rear door stopper bracket | 67264-42010 |
| 67281F | Back door lower block | 67281-42010 |
| 67292A | Back door stop base | 67292-42010 |
| 68801 | Back door upper right hinge sub-assembly | 68801-42020 |
| 68852 | Back door hinge cover | 68851-42010 |
| 69090 | Rear door outer handle assembly | 69090-42010 |
| 69293C | Rear door handle buckle | 69293-12030 |
| 69350 | Rear door lock assembly | 69110-42020 · 69110-42021 · 69350-42020 · 69350-42021 |
| 69410C | Back door lock plate assembly | 69410-20070 · 69410-42010 |
| 69461 | Rear door right side protruding stopper | 69461-42010 · 69461-42011 |
| 69465A | Rear door underside stopper | 69465-42010 · 69465-42011 |
