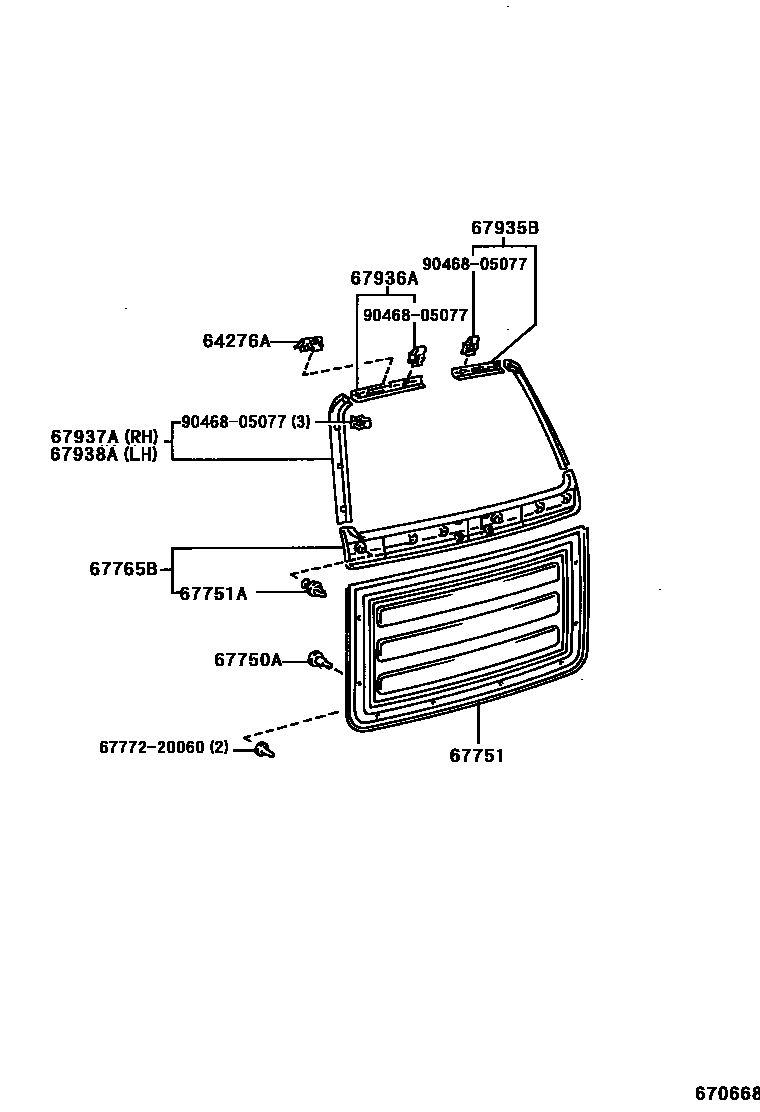

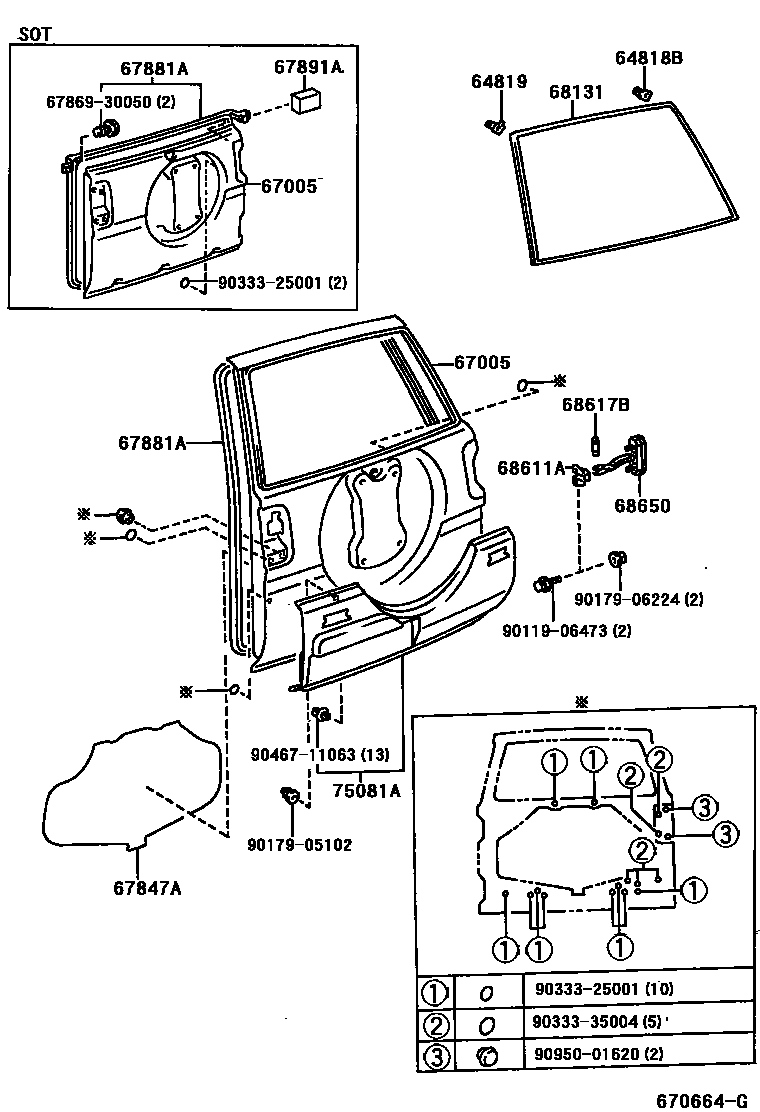

Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64276A | Upper back panel decorative panel bracket | 64276-42010 |
| 64818B | No. 1 back door glass spacer | 64818-42010 |
| 64819 | No. 2 back window glass spacer | 64819-42010 |
| 67005 | Rear door panel sub-assembly | 67005-42020 · 67005-42021 · 67005-42022 · 67005-42090 |
| 67751A | Clip (for rear door trim panel) | 90467-10161 |
| 67847A | Rear door access hole cover | 67847-42010 |
| 67881A | Back door seal | 67881-42011 · 67881-42020 |
| 67891A | Back door seal | 67891-42010 |
| 68131 | back door glass | 68131-0W050 · 68131-42030 · 68131-42060 · 68131-42090 |
| 68611A | Back door opening limiter base | 68611-42010 |
| 68617B | Back door opening limiter pin | 68617-50010 |
| 68650 | Back door opening limiter assembly | 68650-42010 |
| 75081A | Rear door decorative panel sub-assembly | 75081-42011 |
