Toyota RAV4 前门车窗升降器和合页 — Figure 6754

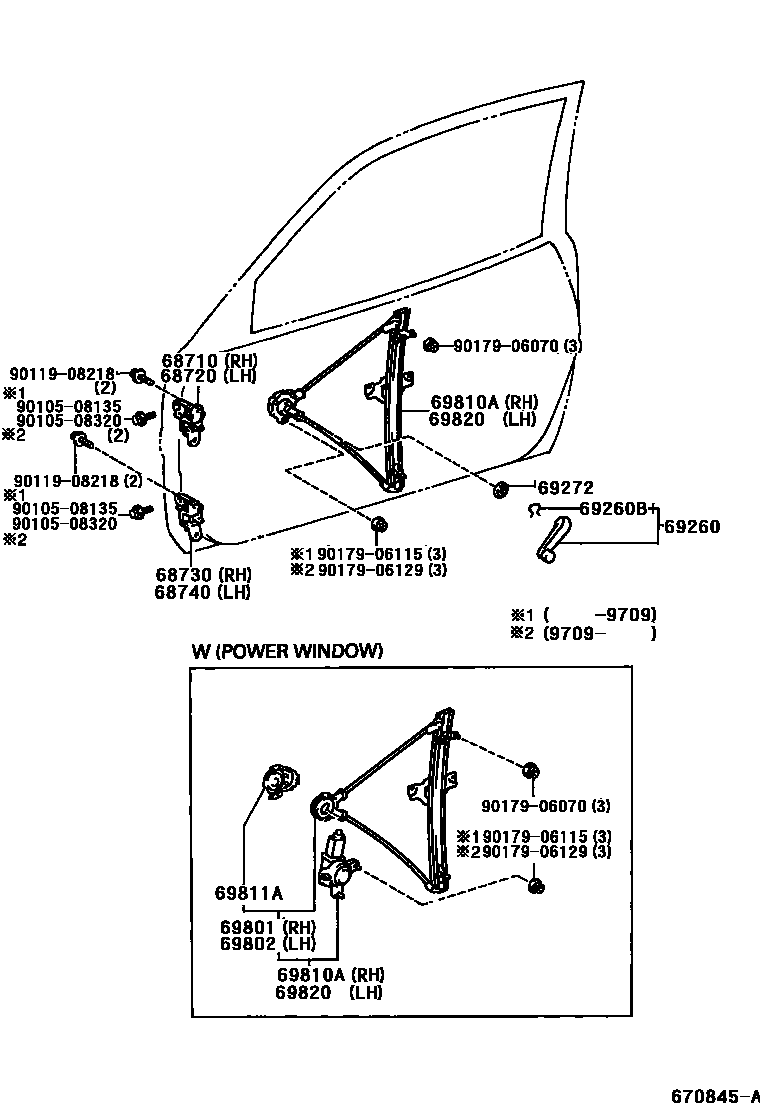

Toyota RAV4 EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-22080 |
| 68720 | Left front door upper hinge assembly | 68720-22070 |
| 68730 | Right front door lower hinge assembly | 68730-22060 |
| 68740 | Left front door lower hinge assembly | 68740-22060 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 · 90520-01274 |
| 69801 | Right front door window lifter sub-assembly | 69801-42012 · 69801-42021 |
| 69802 | Left front door window lifter sub-assembly | 69802-42012 · 69802-42021 |
| 69810A | Right front door window lift assembly | 69810-42012 · 69810-42013 · 69810-42021 · 69810-42031 · 69810-42041 |
| 69811A | Front door power window lift base plate | 69811-42010 · 69812-42010 · 69813-20050 · 69814-20050 |
| 69820 | Left front door window lift assembly | 69820-42012 · 69820-42021 · 69820-42031 · 69820-42041 · 69820-42090 · 69820-42100 |
