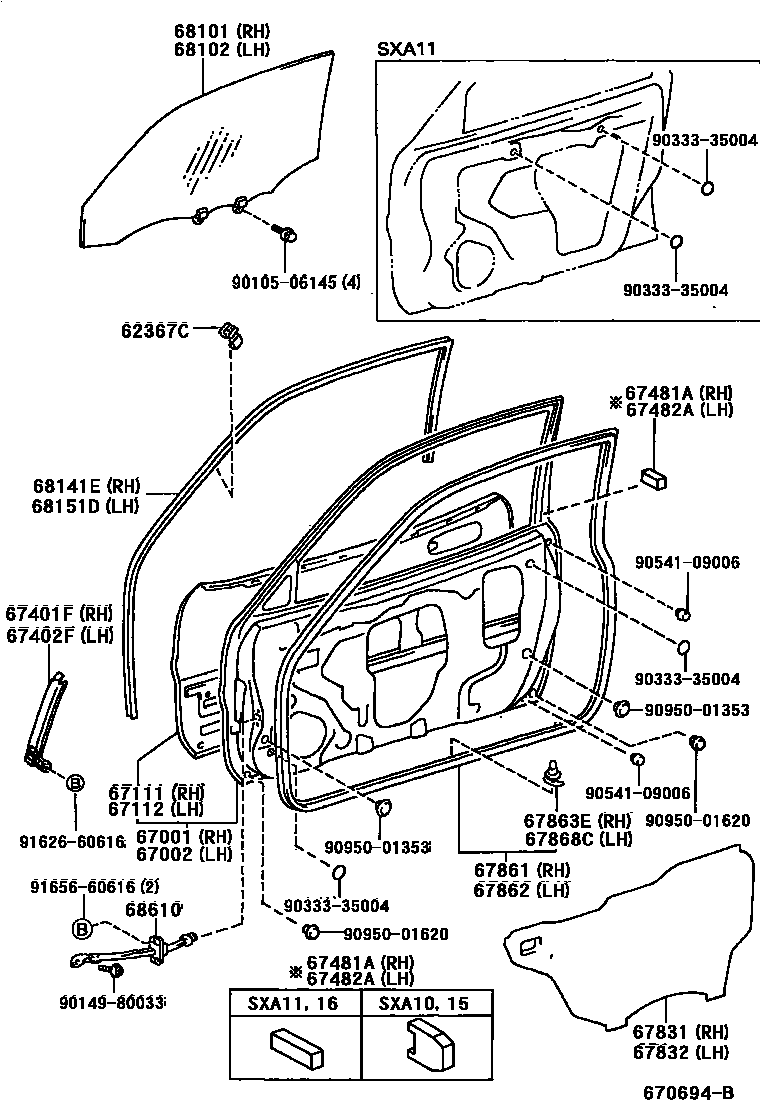

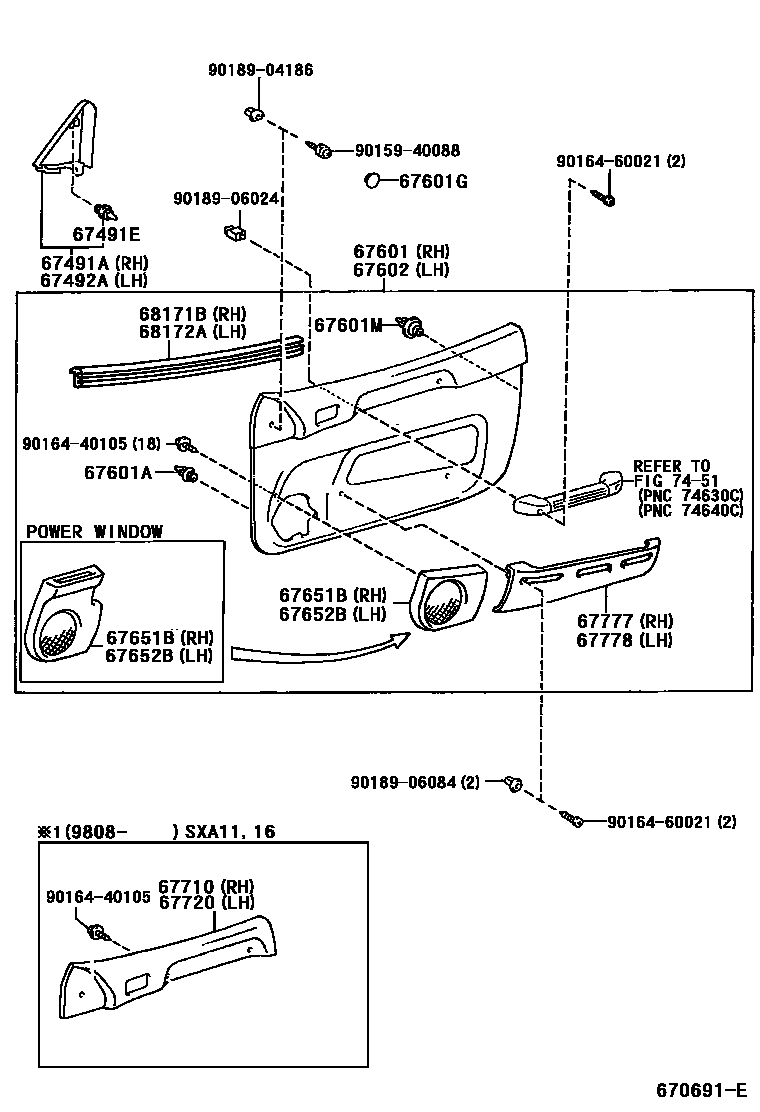

Toyota RAV4 前门板和前门玻璃 — Figure 6751
Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62367C | Car door window glass clip | 62367-42010 · 62367-60010 |
| 67001 | Right front door panel sub-assembly | 67001-42030 · 67001-42040 · 67001-42050 · 67001-42060 |
| 67002 | Left front door panel sub-assembly | 67002-42030 · 67002-42040 · 67002-42050 · 67002-42060 |
| 67111 | Outer right front door panel | 67111-42010 · 67111-42020 |
| 67112 | Outer left front door panel | 67112-42010 · 67112-42020 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-42010 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-42010 |
| 67481A | Right front door front lower door frame seal | 67481-42010 · 67481-42020 |
| 67482A | Left front door front lower door frame seal | 67481-42010 · 67481-42020 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-42010 · 67491-42020 |
| 67491E | door trim panel fixings | 67771-30070 · 90467-10167 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-42010 · 67492-42020 |
| 67601A | Fixings (for front door trim) | 67771-16080 · 67771-20110 |
| 67601M | No. 2 door trim panel fixings | 67771-33020 |
| 67831 | Right front door access hole cover | 67831-42010 · 67831-42030 |
| 67832 | Left front door access hole cover | 67831-42010 · 67831-42030 |
| 67861 | Right front door seal | 67861-42011 · 67861-42020 |
| 67862 | Left front door seal | 67862-42011 · 67862-42020 |
| 67863E | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 68101 | Right front door glass sub-assembly | 68101-42030 · 68101-42040 |
| 68102 | Left front door glass sub-assembly | 68102-42030 · 68102-42040 |
| 68141E | Right front door glass lift channel | 68141-42010 · 68141-42020 |
| 68151D | Left front door glass lift channel | 68151-42010 · 68151-42020 |
| 68171B | Right front door glass inner sealing strip | 68171-42010 · 68171-42020 |
| 68172A | Left front door glass inner sealing strip | 68172-42010 · 68172-42020 |
| 68610 | Front door opening limiter assembly | 68610-42010 · 68610-42030 · 68620-42010 · 68620-42030 |
