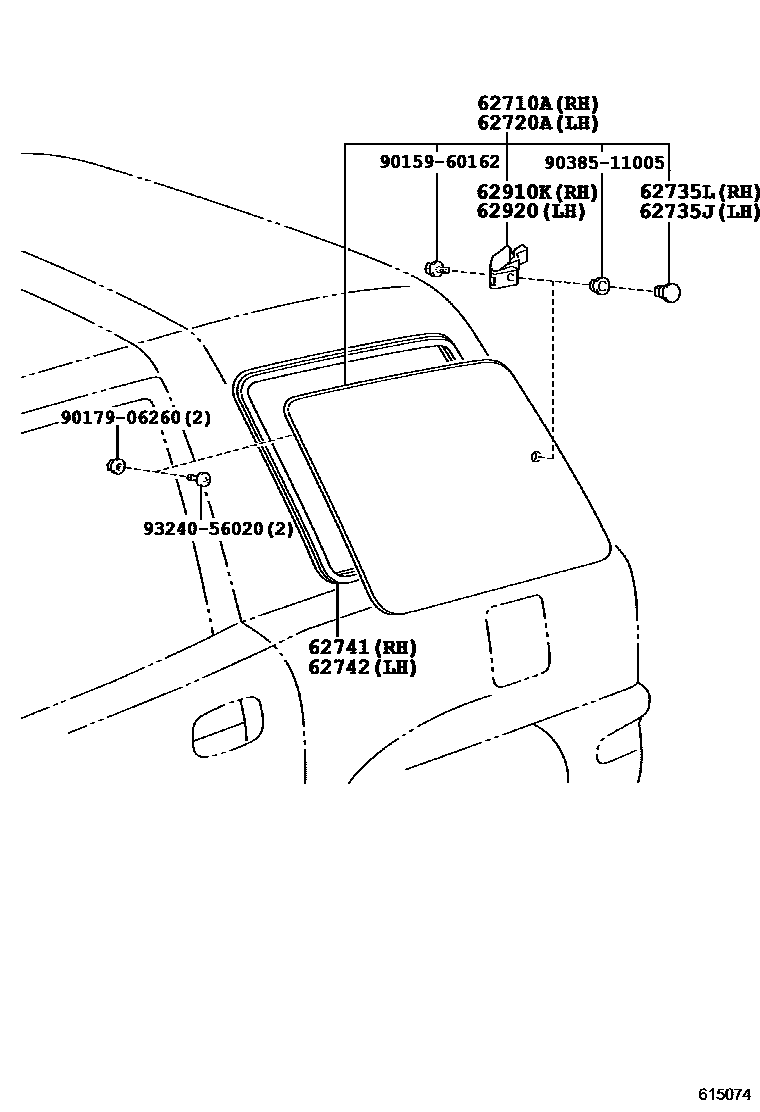

Toyota RAV4 侧窗 — Figure 6152
Toyota RAV4 EPC diagram 6152, 侧窗, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62710A | Right corner window assembly | 62710-42030 · 62710-42040 · 62710-42080 |
| 62720A | Left corner window assembly | 62720-42040 · 62720-42080 · 62720-42110 |
| 62735J | Left corner window hinge fixing | 62735-95D00 |
| 62735L | Right corner window hinge fixing | 62735-95D00 |
| 62741 | Right corner window sealing strip | 62741-42010 |
| 62742 | Left corner window sealing strip | 62742-42010 |
| 62910K | Right corner window lock assembly | 62910-42010 |
| 62920 | Left corner window lock assembly | 62920-42020 |
