Toyota RAV4 前地板和前地板梁 — Figure 5851

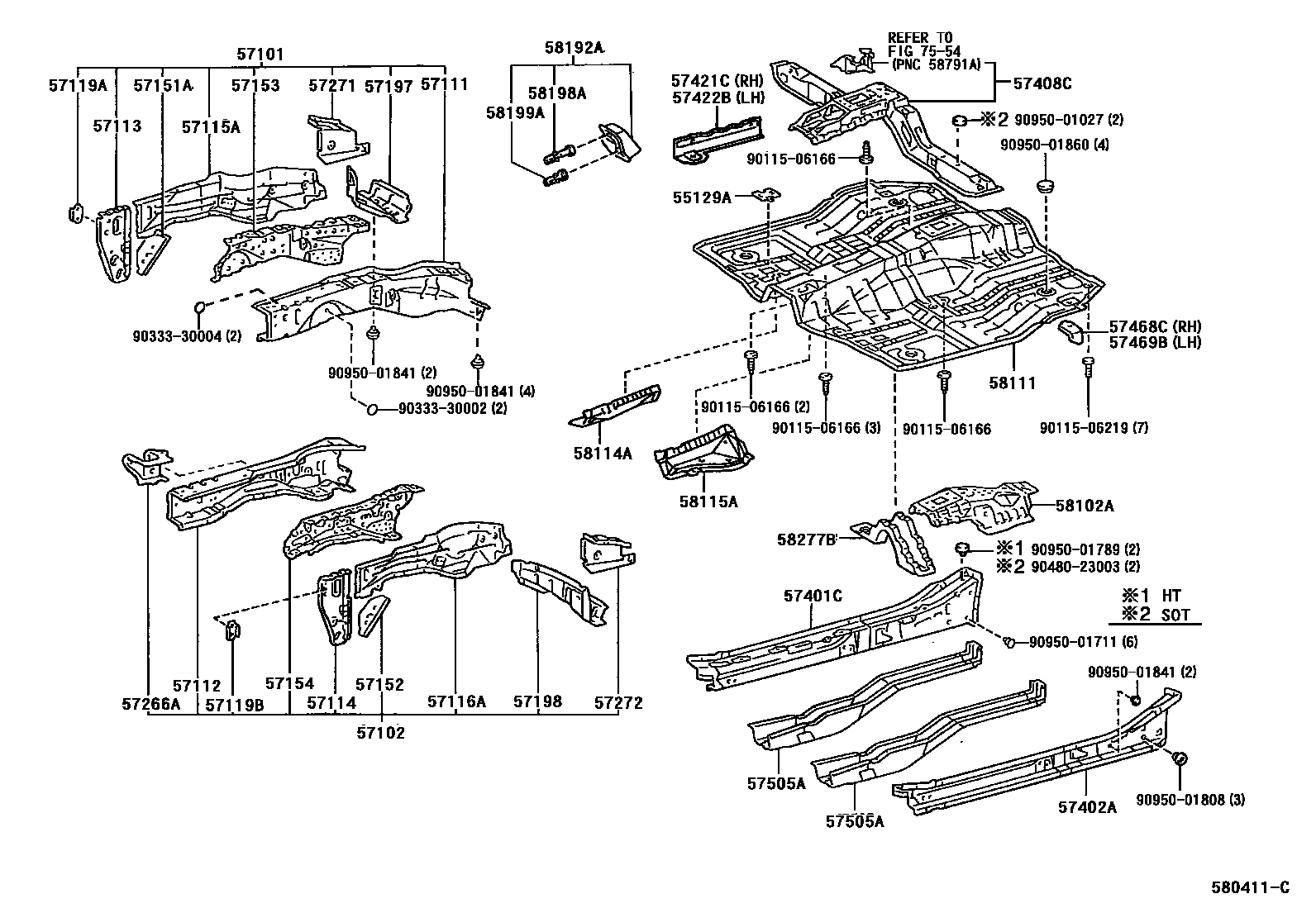

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129A | Front floor hole cover | 55129-12030 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-42020 · 57101-42030 · 57101-42040 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-42020 · 57102-42030 · 57102-42040 |
| 57111 | Right front longitudinal beam | 57111-42010 · 57111-42030 |
| 57112 | Left front longitudinal beam | 57112-42011 · 57112-42030 |
| 57113 | Right front longitudinal beam extension | 57113-42010 · 57113-42020 |
| 57114 | Left front longitudinal beam extension | 57114-42010 · 57114-42020 |
| 57115A | Right front longitudinal beam outer panel | 57115-42011 · 57115-42020 |
| 57116A | Left front longitudinal beam outer panel | 57116-42011 · 57116-42020 |
| 57119A | Right front longitudinal beam front panel | 57119-42010 |
| 57119B | Left front longitudinal beam front panel | 57119-42010 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-42010 · 57151-42020 |
| 57152 | No. 1 left front longitudinal beam reinforcement | 57152-42010 · 57152-42020 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-42010 · 57016-42011 · 57016-42030 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-42010 · 57154-42010 |
| 57197 | Right front torsion box section piece | 57197-42010 · 57197-42030 |
| 57198 | Left front anti-torsion box section piece | 57198-42010 · 57198-42030 |
| 57266A | Engine left mounting bracket | 57266-42011 |
| 57271 | Steering housing support beam right extension | 57271-42010 · 57271-42030 |
| 57272 | Steering casing support beam left extension | 57272-42010 · 57272-42030 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-42030 · 57401-42040 · 57401-42060 · 57401-42070 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-42030 · 57402-42040 · 57402-42060 · 57402-42070 |
| 57408C | Front floor cross member sub-assembly | 57408-42020 · 57408-42040 |
| 57421C | Floor right longitudinal beam plate | 57421-42010 |
| 57422B | Floor left longitudinal beam plate | 57422-42010 |
| 57468C | Front right seat outer bracket | 57468-42010 · 57468-42030 |
| 57469B | Front seat left outer bracket | 57469-42010 · 57469-42030 |
| 57505A | Front underfloor reinforcement sub-assembly | 57505-42013 · 57505-42014 · 57505-42022 · 57505-42023 · 57505-42031 · 57505-42032 · 57505-42041 · 57505-42042 · 57505-42050 · 57505-42060 · 57505-42070 · 57506-42010 |
| 58102A | Front floor reinforcement sub-assembly | 58102-42011 · 58102-42020 |
| 58111 | front floor pan | 58111-42903 · 58111-42905 · 58111-42907 |
| 58114A | front floor reinforcement | 58114-42010 |
| 58115A | front floor reinforcement | 58115-42010 |
| 58192A | Front floor left footrest | 58192-42010 |
| 58198A | No. 1 footrest clip | 58198-42020 |
| 58199A | Footrest clip No. 2 | 58199-42020 |
| 58277B | Drive shaft center bracket reinforcement | 58209-42010 |
