Toyota RAV4 前保险杠及附件 — Figure 5252

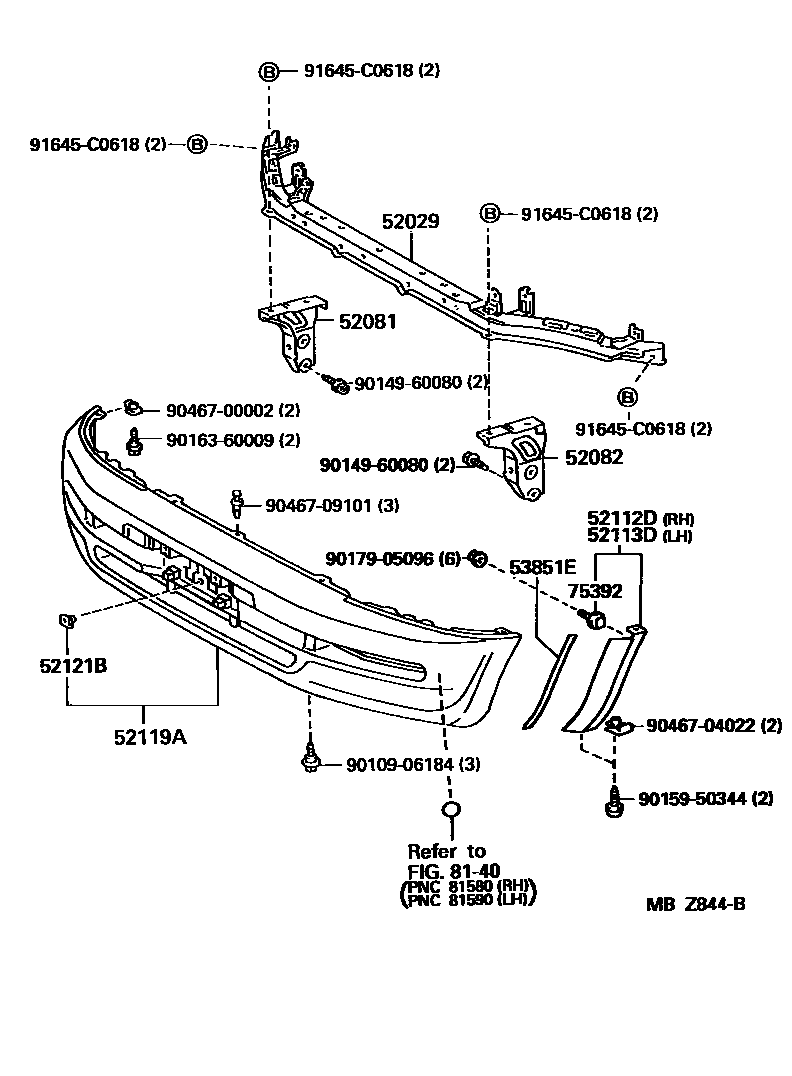

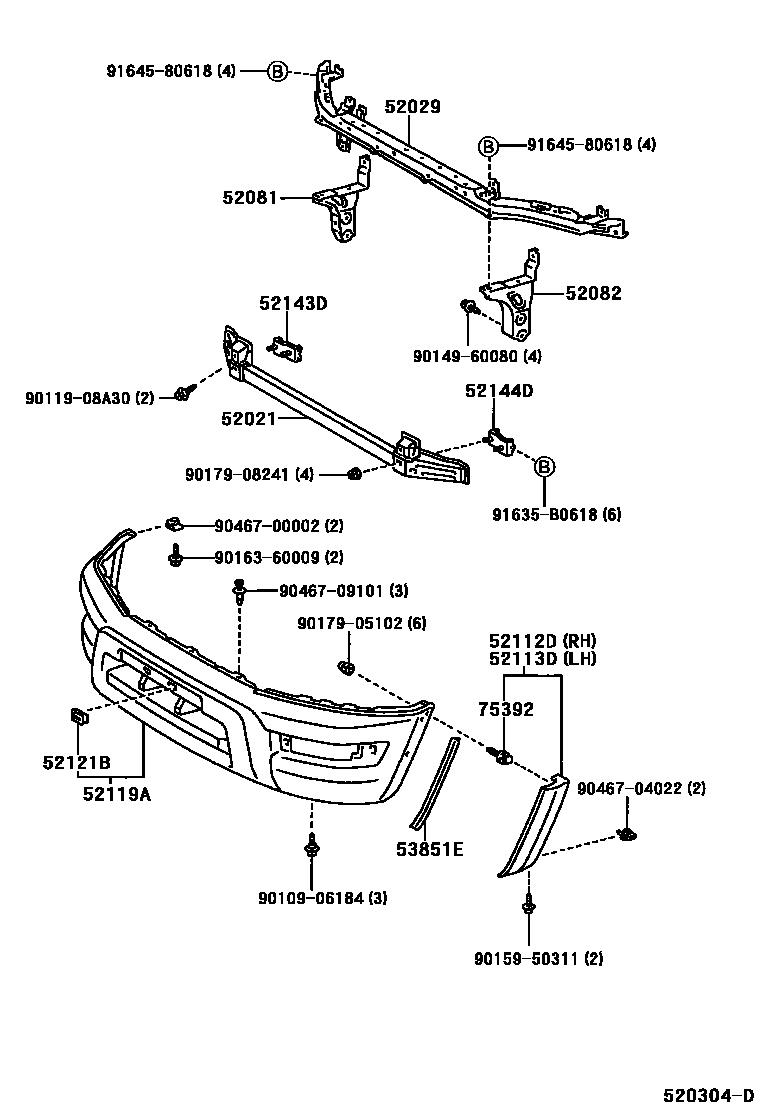

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-42010 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-42011 · 52029-42050 |
| 52081 | Front bumper stay sub-assembly | 52145-42010 |
| 52082 | Front bumper left stay sub-assembly | 52146-42010 |
| 52112D | Front bumper right extension | 52102-42900 |
| 52113D | Front bumper left extension | 52103-42900 |
| 52119A | front bumper cover | 52119-42011 · 52119-42050 |
| 52121B | Front license plate mounting bracket | 52121-42010 |
| 52143D | Front bumper right side bracket | 52143-42010 |
| 52144D | Front bumper left bracket | 52144-42010 |
| 75392 | External protective strip fixings | 75392-42011 |
