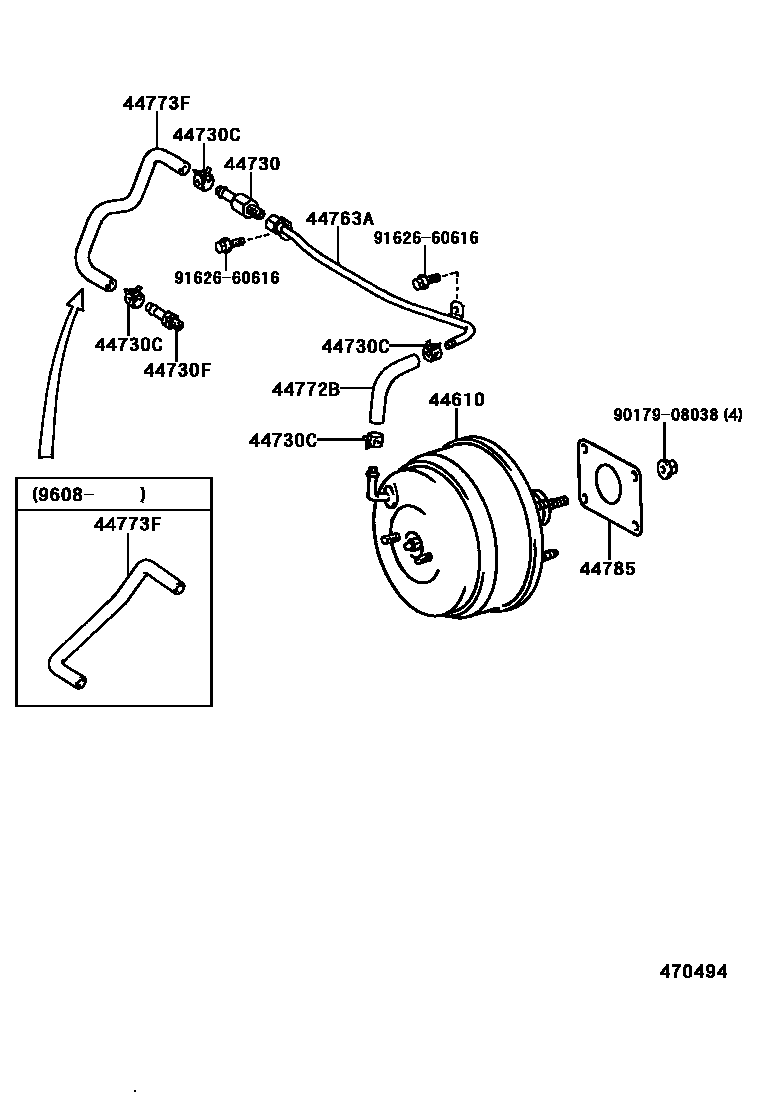

Toyota RAV4 制动助力器和真空管 — Figure 4703
Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42020 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20100 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-42010 · 44763-42020 |
| 44772B | Hoses (check valve to brake booster) | 44772-42010 · 44772-42020 |
| 44773F | Hoses (connector to check valve) | 44773-42020 · 44773-42060 · 44773-42070 |
| 44785 | brake booster pad | 44785-32010 |
