Toyota RAV4 Steering Wheel — Figure 4504

Toyota RAV4 EPC diagram 4504, Steering Wheel, with 3 images and 2 PNC and OE references.

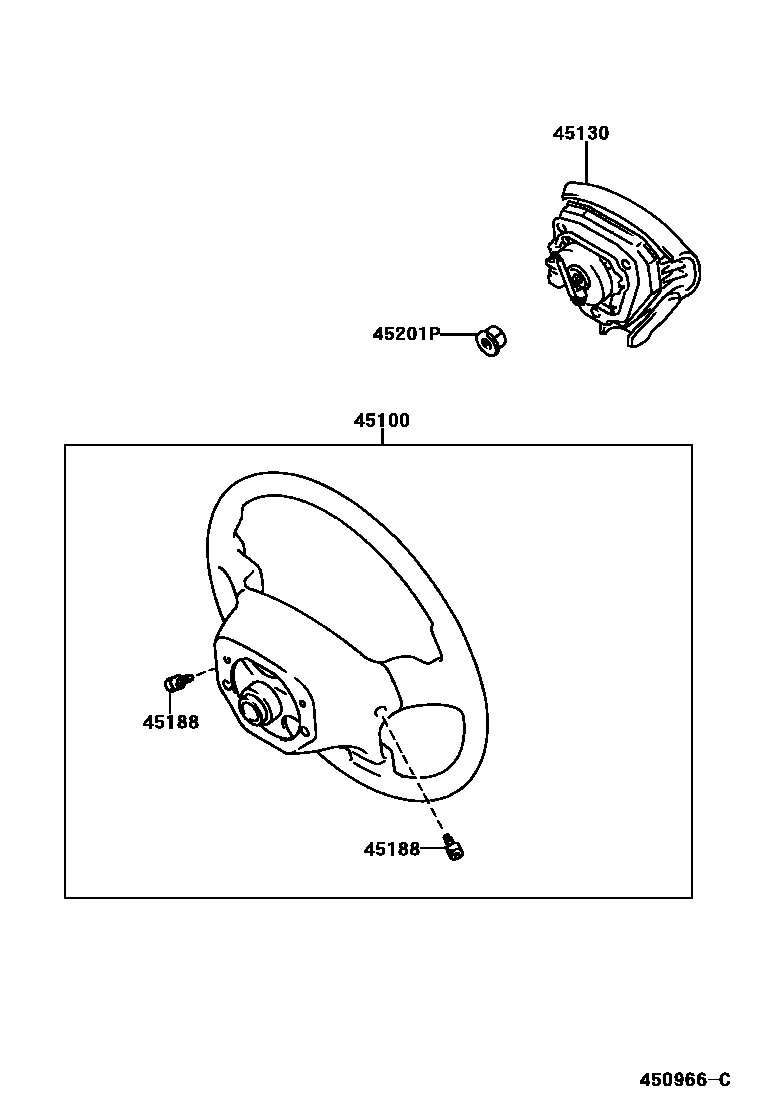

Toyota RAV4 Steering Wheel EPC diagram — 450966C
Steering Wheel — 450966C (199709 – 999999)

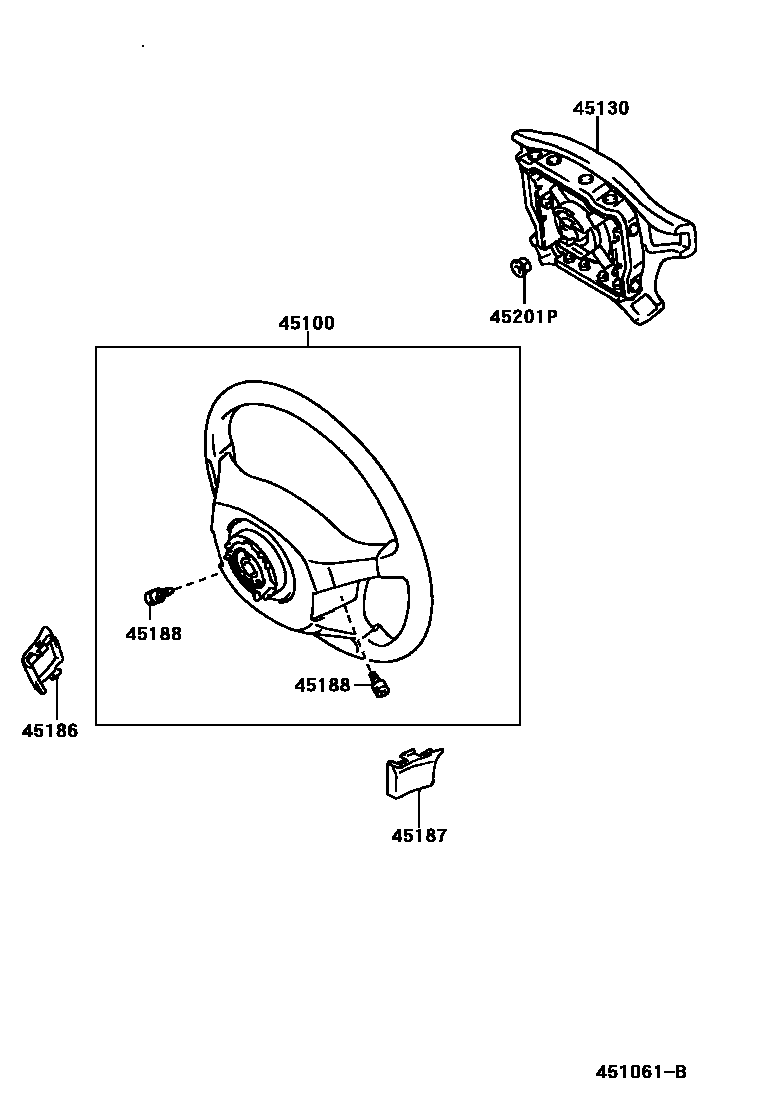

Toyota RAV4 Steering Wheel EPC diagram — 451061B
Steering Wheel — 451061B (199511 – 199709)
Toyota RAV4 Steering Wheel EPC diagram — 451154B
Steering Wheel — 451154B (199709 – 999999)

PNC and OE references

PNCPart nameOE numbers
45188Steering wheel trim cover fixing screws90148-60007 · 90148-60036
45201PSteering wheel fixing nut90179-12071
