Toyota RAV4 变速器油冷却器和配管(ATM) — Figure 3514

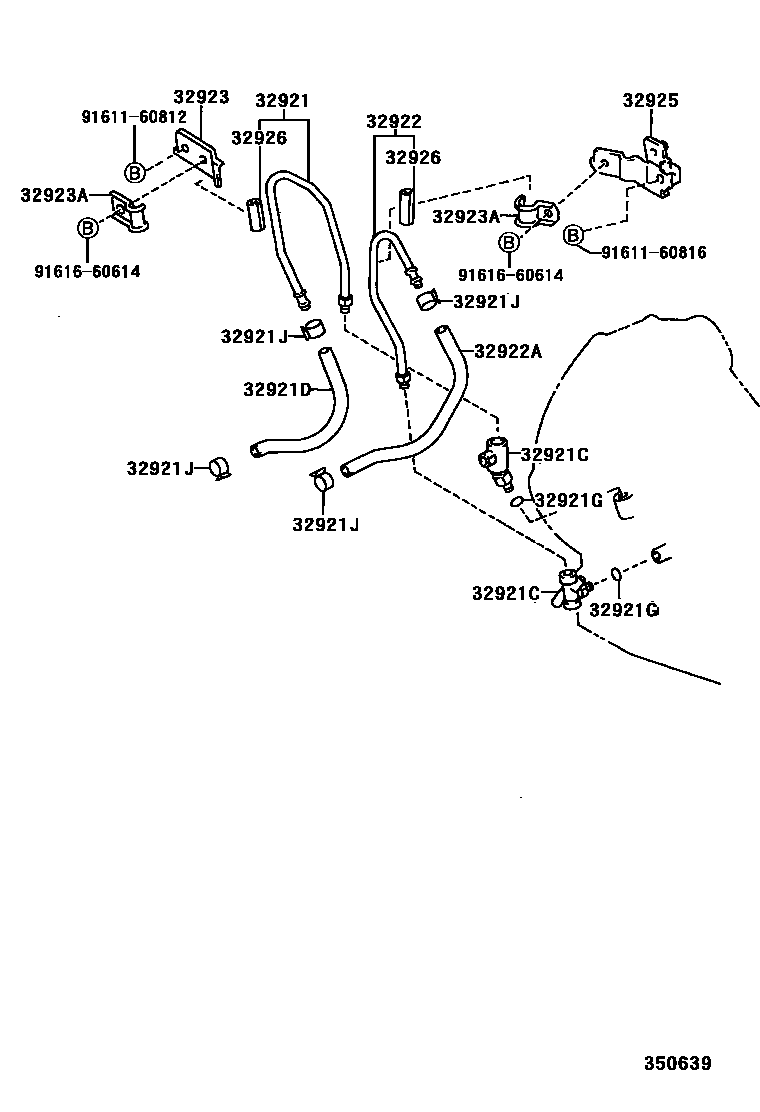

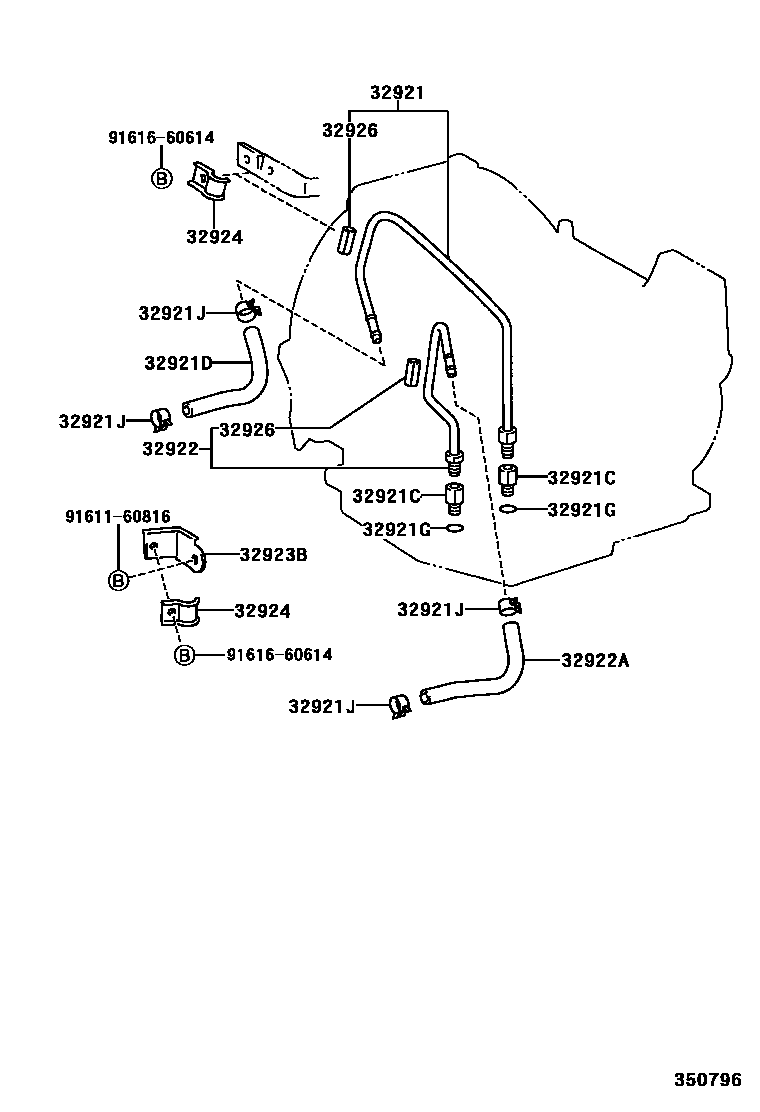

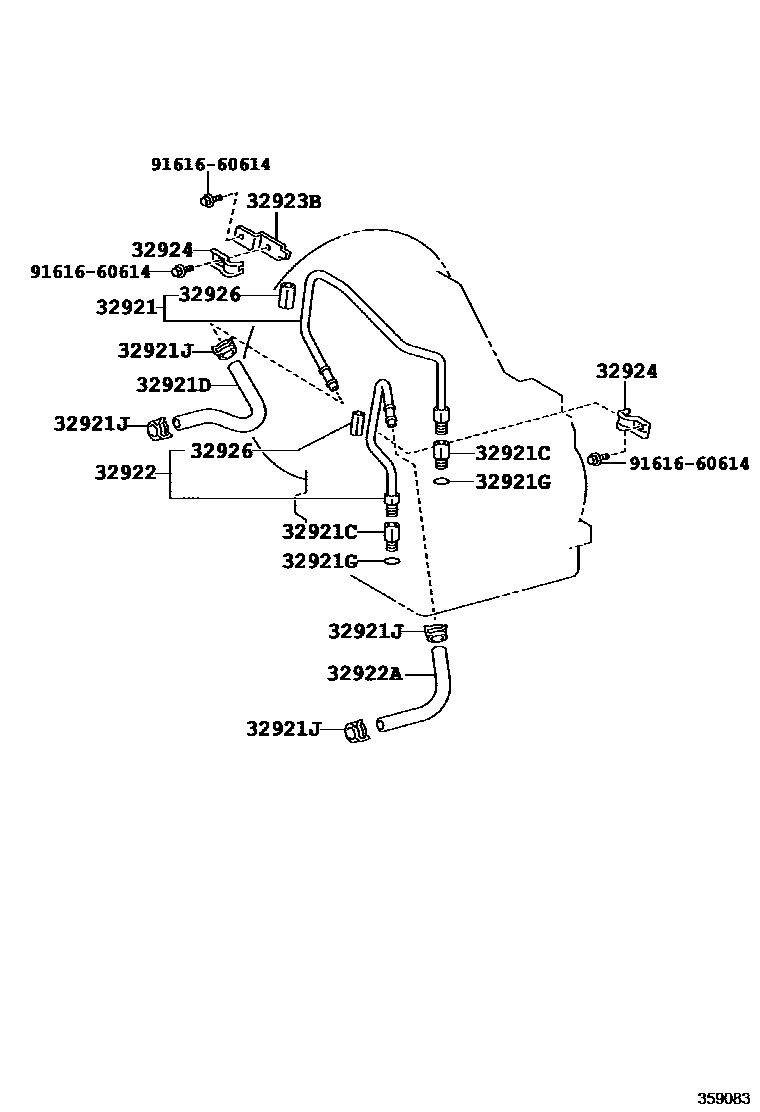

Toyota RAV4 EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-42010 · 32921-42020 · 32921-42030 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-32060 · 32918-32010 · 90404-16031 · 90404-16032 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-17069 · 90445-17096 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-42010 · 32922-42020 · 32922-42030 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17077 · 90445-17096 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-32060 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-12071 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-42010 · 32923-42020 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-20080 · 32924-20090 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 32923-32060 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-20010 |
