Toyota RAV4 离合器壳和变速器壳(MTM) — Figure 3302

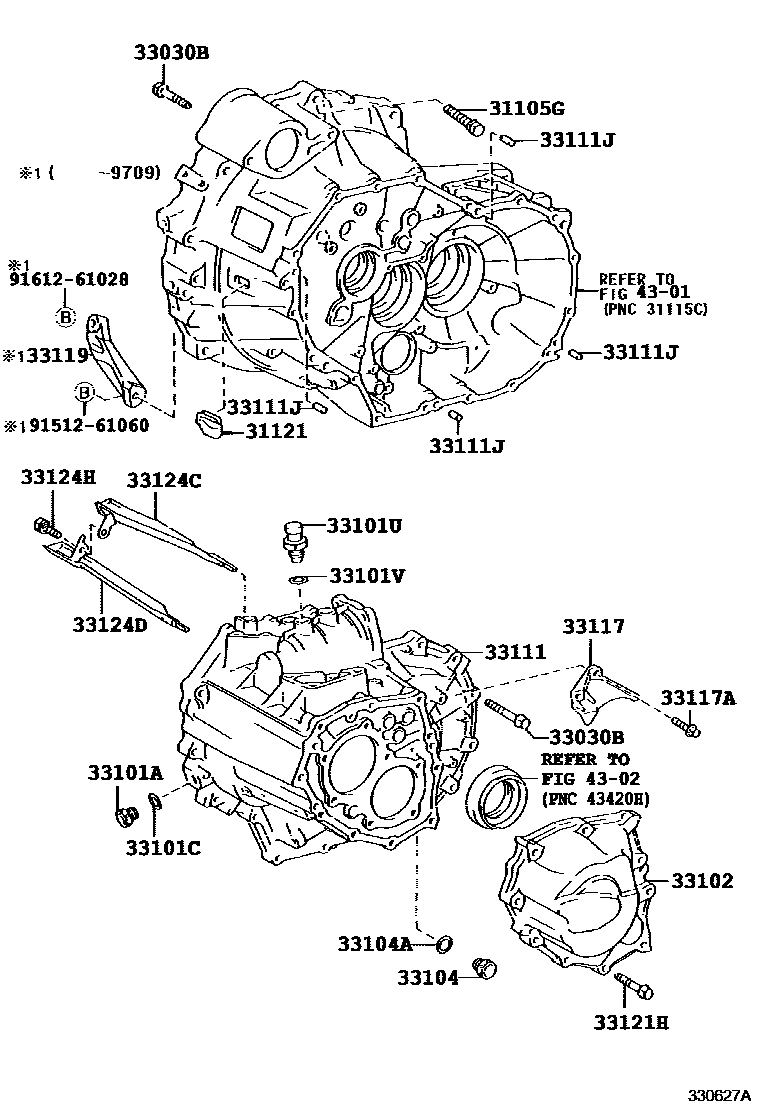

Toyota RAV4 EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-08040 · 90105-10077 · 90119-12168 · 91621-61020 |
| 31121 | No. 1 clutch housing cover | 31121-20010 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08126 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33101U | Breather plug (for manual transmission) | 90930-03111 · 90930-03148 |
| 33101V | Gasket (for manual transmission breather plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-12041 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-12170 · 33101-12171 · 33101-12172 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 · 90250-12005 |
| 33117 | manual transmission protector | 33117-20020 |
| 33117A | Bolts (for manual transmission guard) | 90105-08040 |
| 33119 | Left reinforcement plate (MTM) | 33119-20090 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-08630 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-12030 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-12041 |
| 33124H | Bolt (for oil collection pipe) | 90119-08648 |
