Toyota RAV4 vacuum tube — Figure 1708

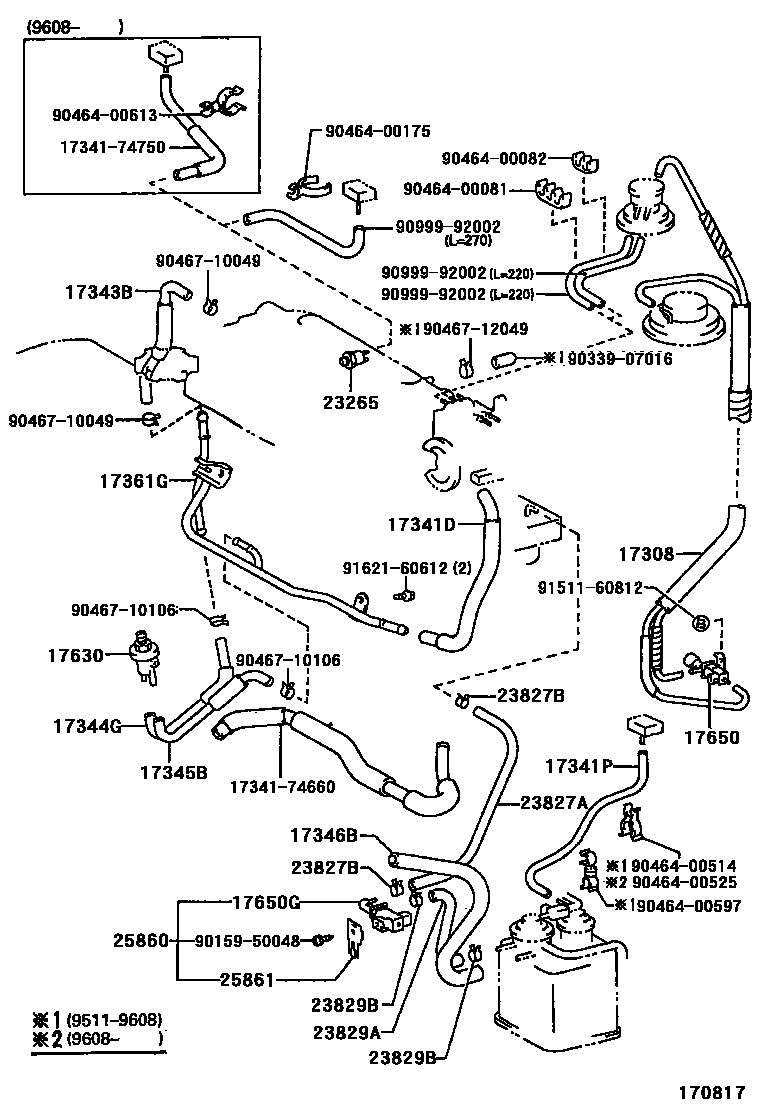

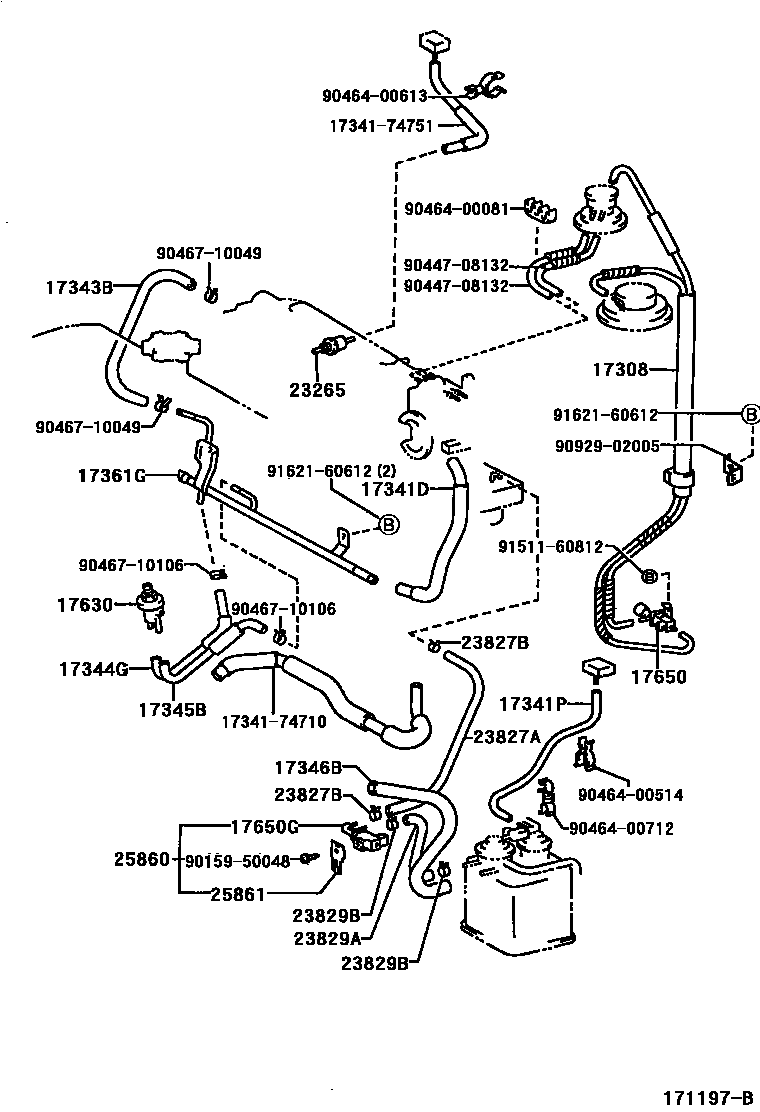

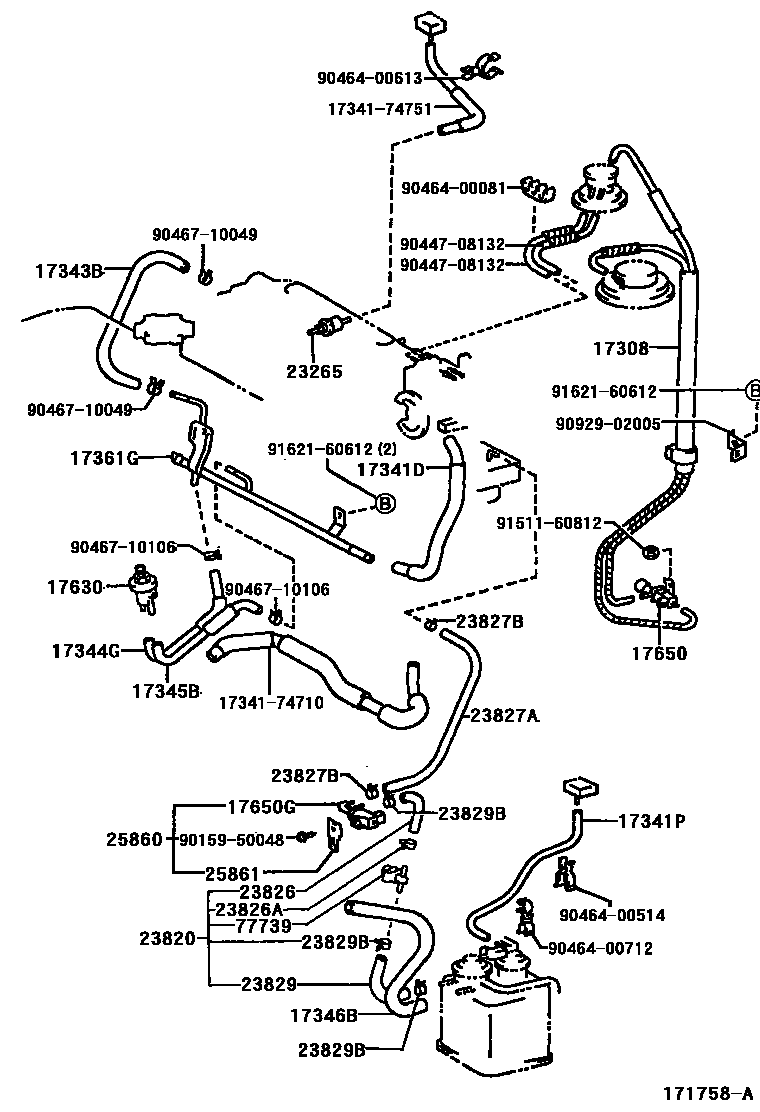

Toyota RAV4 EPC diagram 1708, vacuum tube, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-74501 · 17308-74600 · 17308-74630 |
| 17341D | No. 1 hose (for idle boost) | 17341-74340 · 17341-74550 · 17341-74860 |
| 17341P | air hose | 17341-74690 · 17341-74691 · 17341-74760 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-74141 · 17343-74160 |
| 17344G | No. 4 air hose | 17344-74080 |
| 17345B | No. 5 hose (for idle speed boost) | 17345-74080 |
| 17346B | No. 6 air hose | 17346-74110 · 17346-74111 |
| 17361G | Air pipe (for idle boost) | 17361-74170 · 17361-74220 |
| 17630 | Air control valve assembly | 17630-70020 |
| 17650 | Vacuum switch valve assembly | 90910-12100 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12149 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 · 90917-11037 · 90917-11039 · 90917-11042 |
| 23820 | Fuel vapor supply hose assembly | 23820-74070 |
| 23826 | No. 1 fuel vapor supply hose | 23826-74090 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-41100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-74050 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-41100 · 96132-51000 |
| 23829 | No. 3 fuel vapor supply hose | 23829-74070 |
| 23829A | Fuel vapor supply hose | 23829-74020 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-41100 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-74210 |
| 25861 | Vacuum switch valve bracket | 25861-74040 |
| 77739 | Steam service valve | 77739-33010 |
