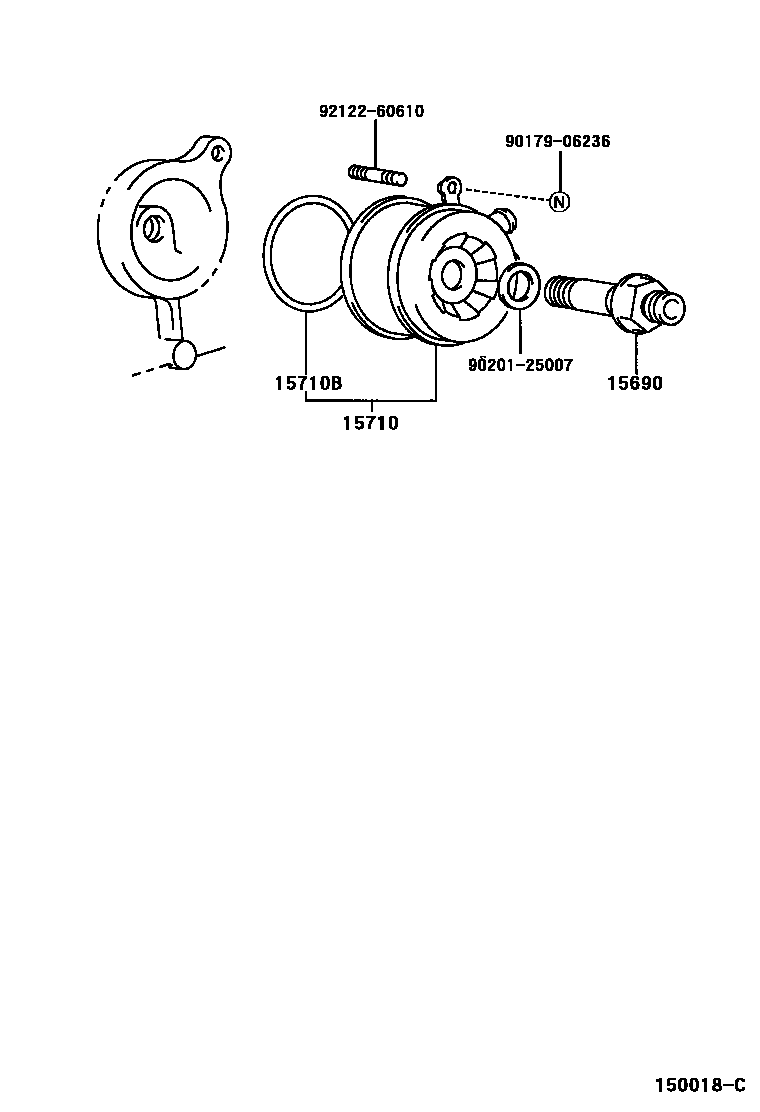

Toyota RAV4 Engine Oil Cooler — Figure 1503
Toyota RAV4 EPC diagram 1503, Engine Oil Cooler, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15690-74030 · 15695-74010 |
| 15710 | Oil cooler assembly | 15710-74040 · 15710-74050 |
| 15710B | O-ring (for oil cooler) | 90301-52006 · 90301-58002 |
| 15785 | oil cooler gasket | 15785-35010 |
