Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

Toyota RAV4 Ventilation Hose EPC diagram — 120050
Ventilation Hose — 120050 (199709 – 999999)

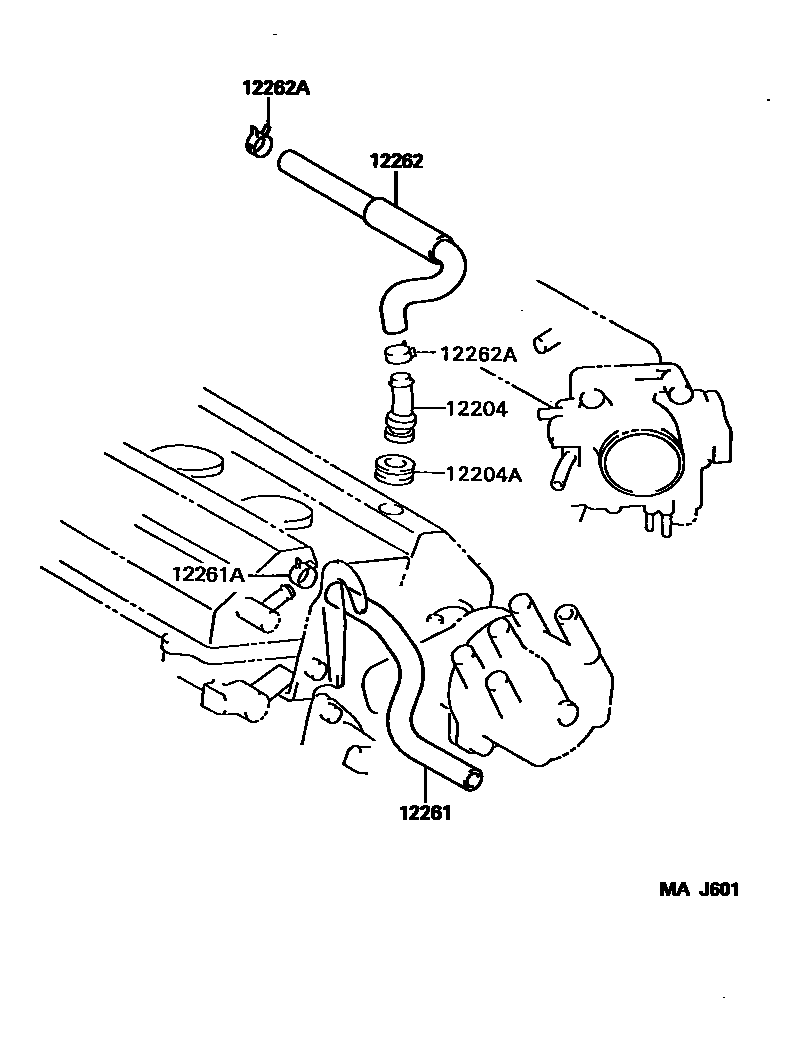

Toyota RAV4 Ventilation Hose EPC diagram — MAJ601
Ventilation Hose — MAJ601 (199511 – 199709)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-74020 · 12204-74030
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12260-74050 · 12261-74140 · 12261-74141
12261AClip or clip (for vent hose)90467-14043 · 90467-15022
12262Ventilation hose No. 212262-74080 · 12262-74081 · 12262-74100
12262AClamp (for vent hose No. 2)90467-14043 · 90467-15022
