Toyota RAV4 挡风玻璃清洗器 — Figure 8503

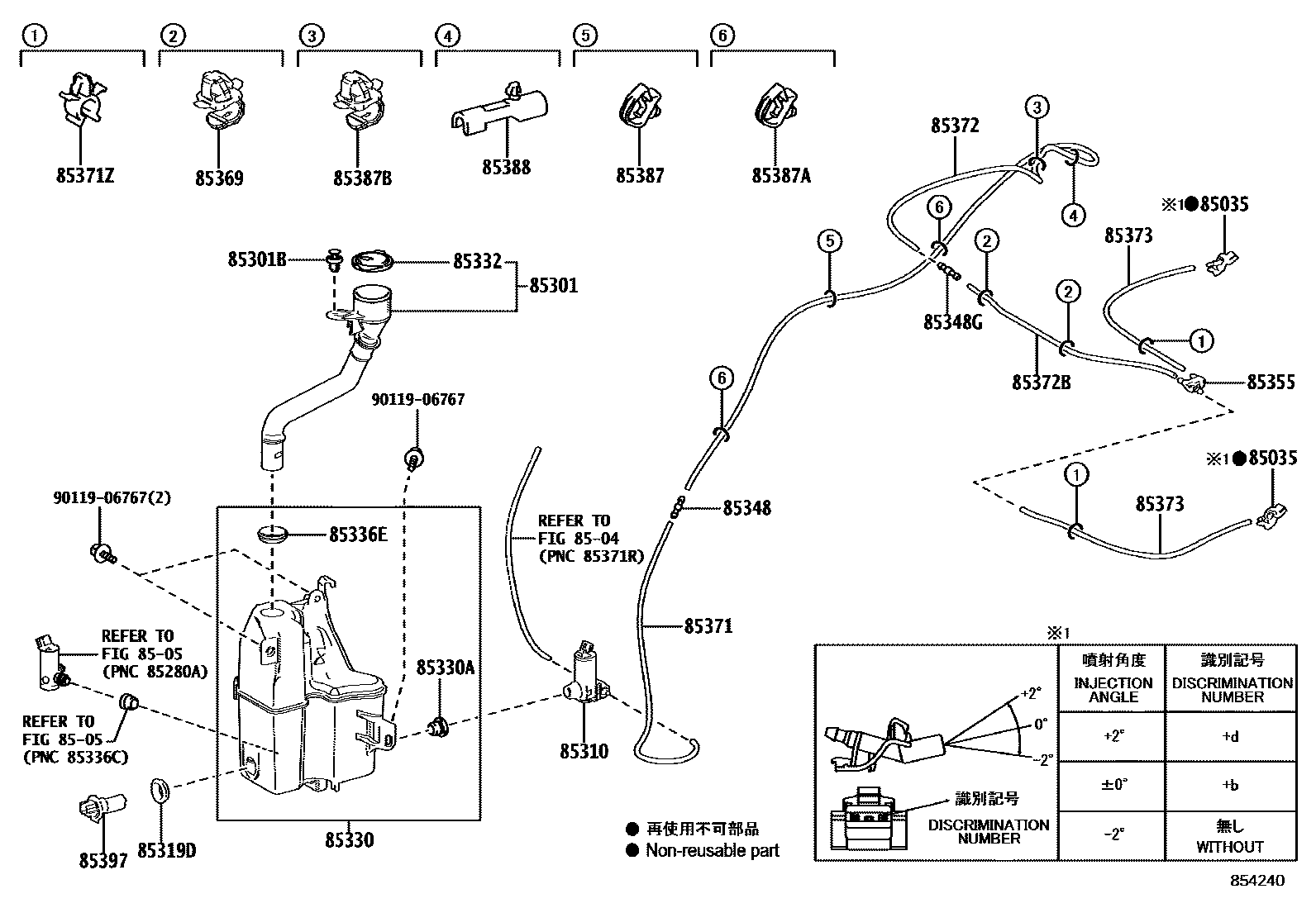

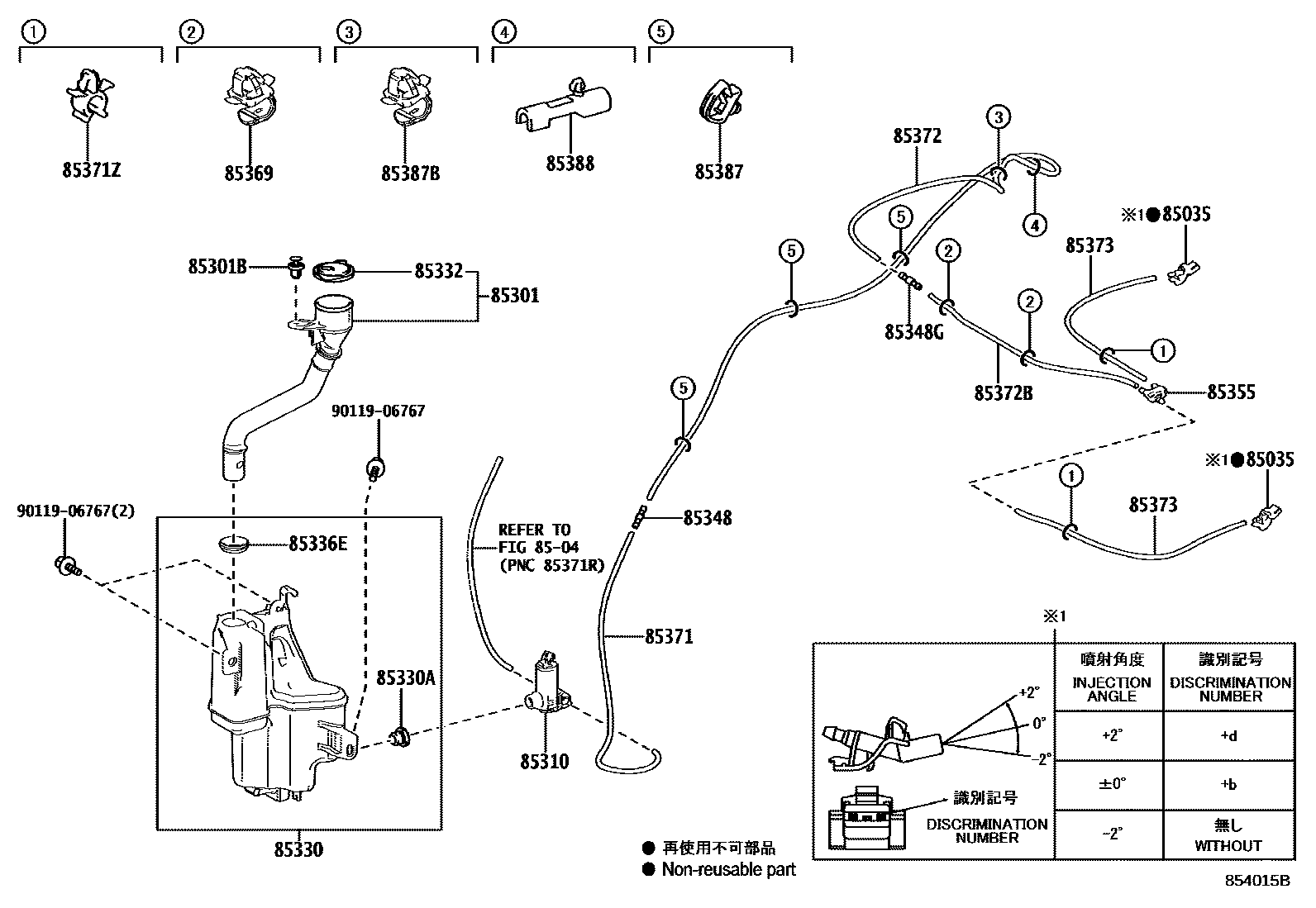

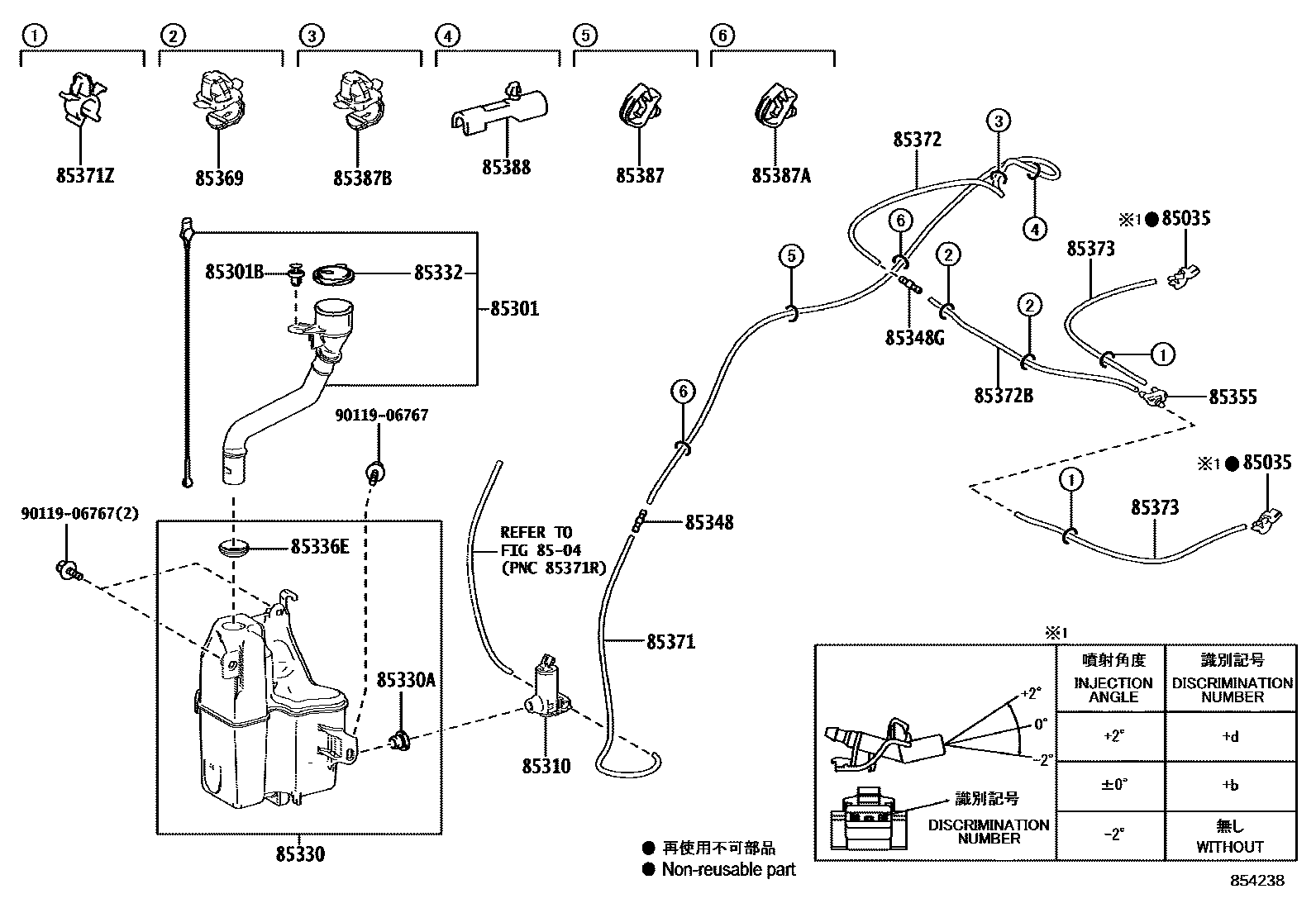

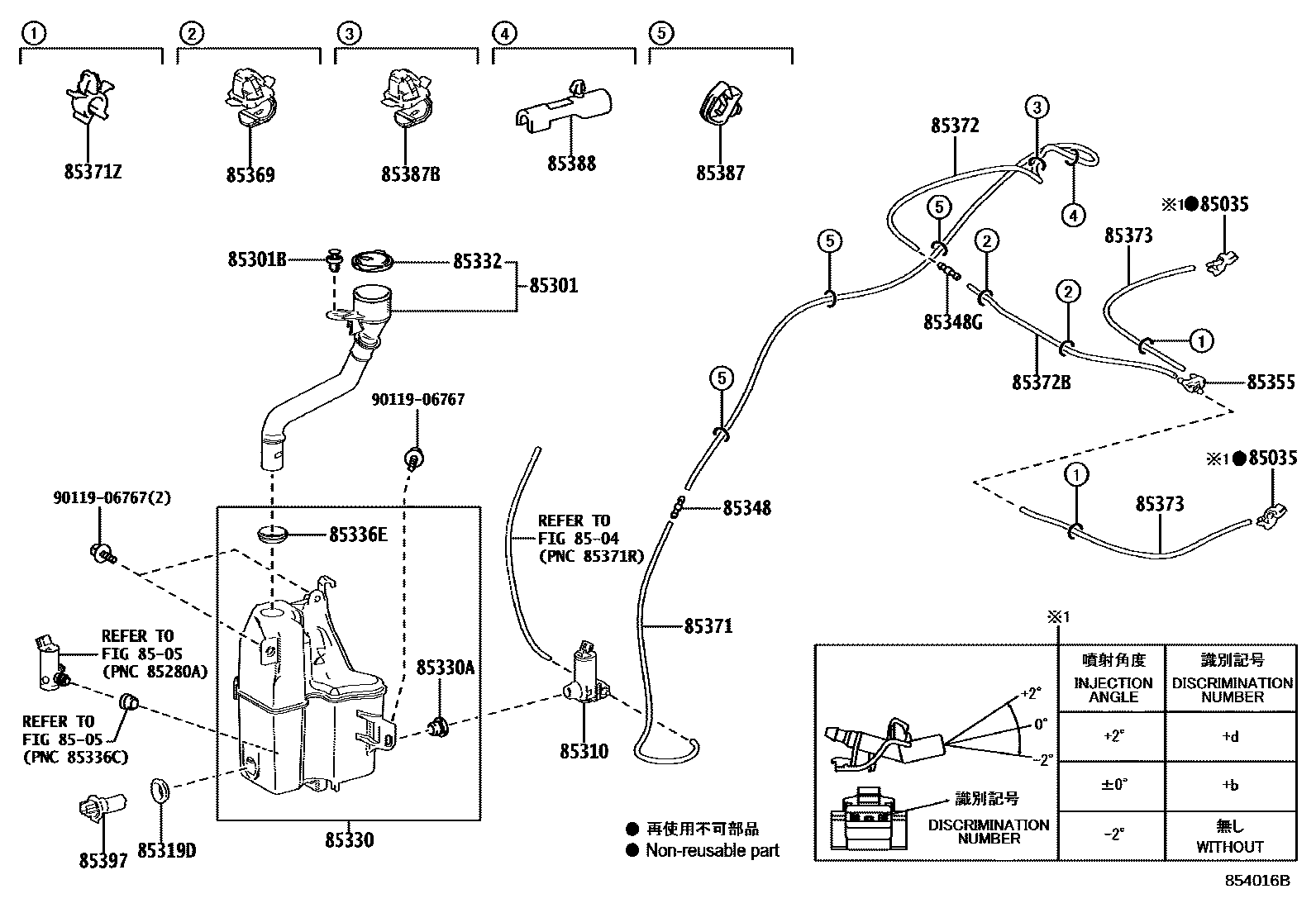

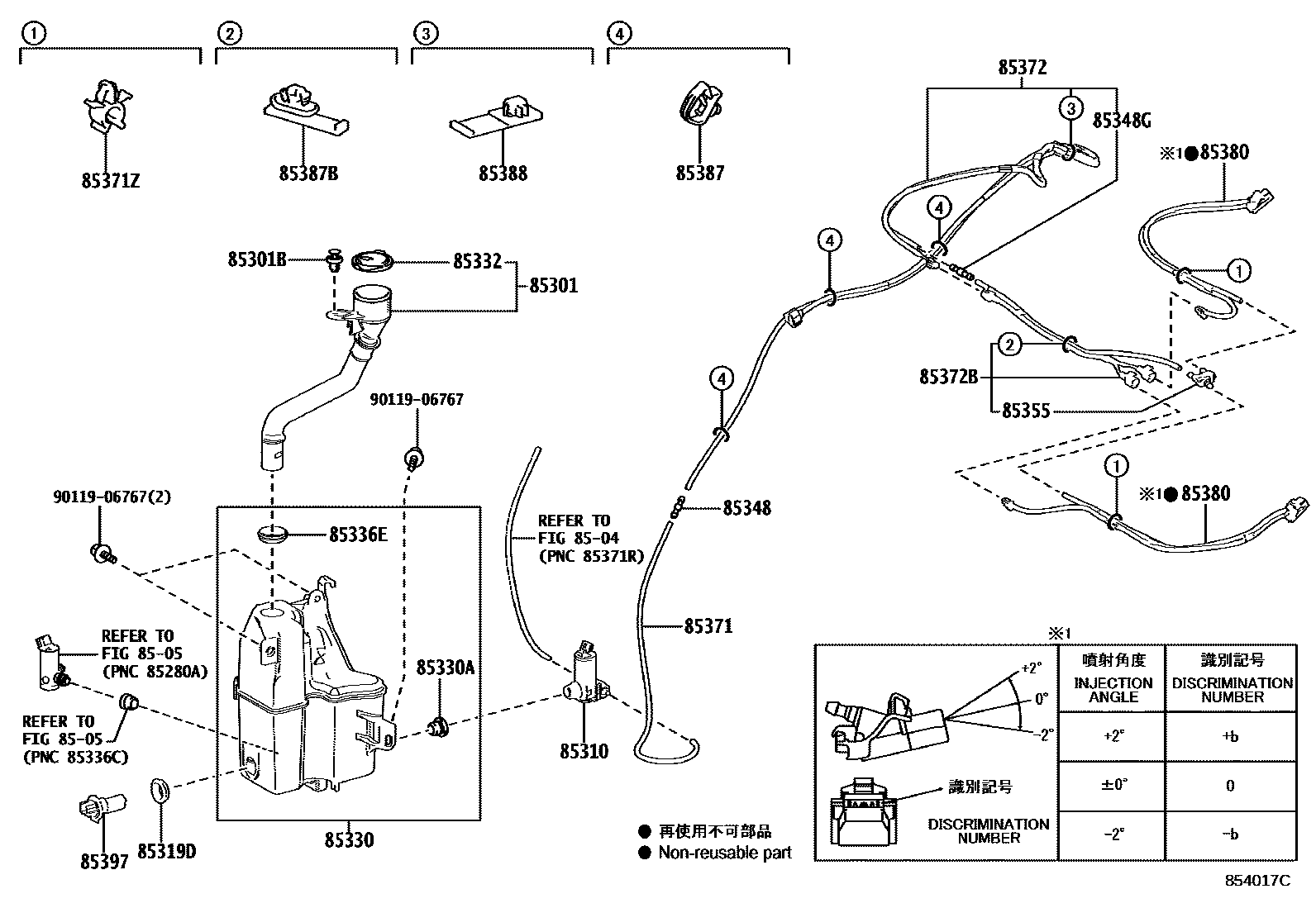

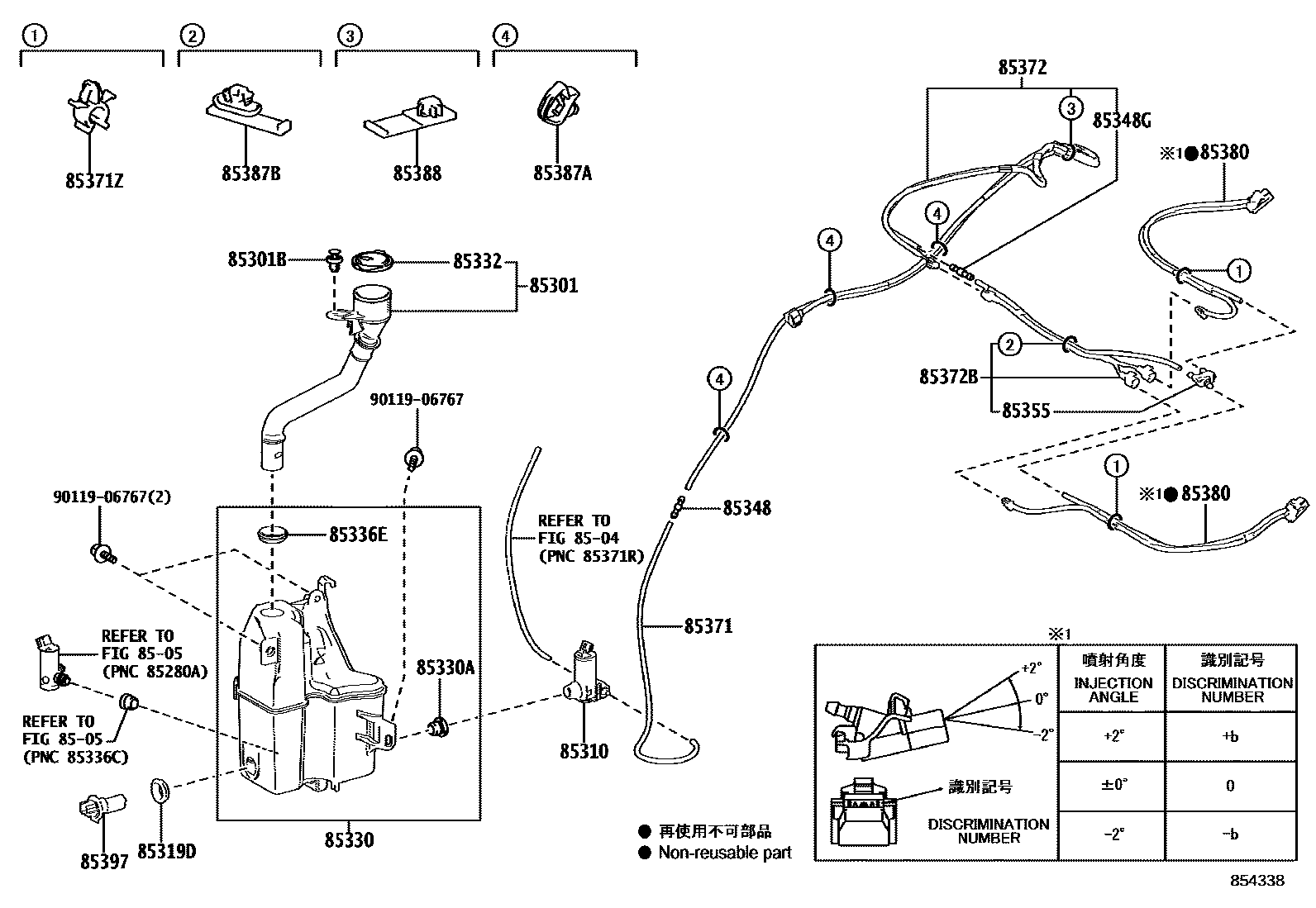

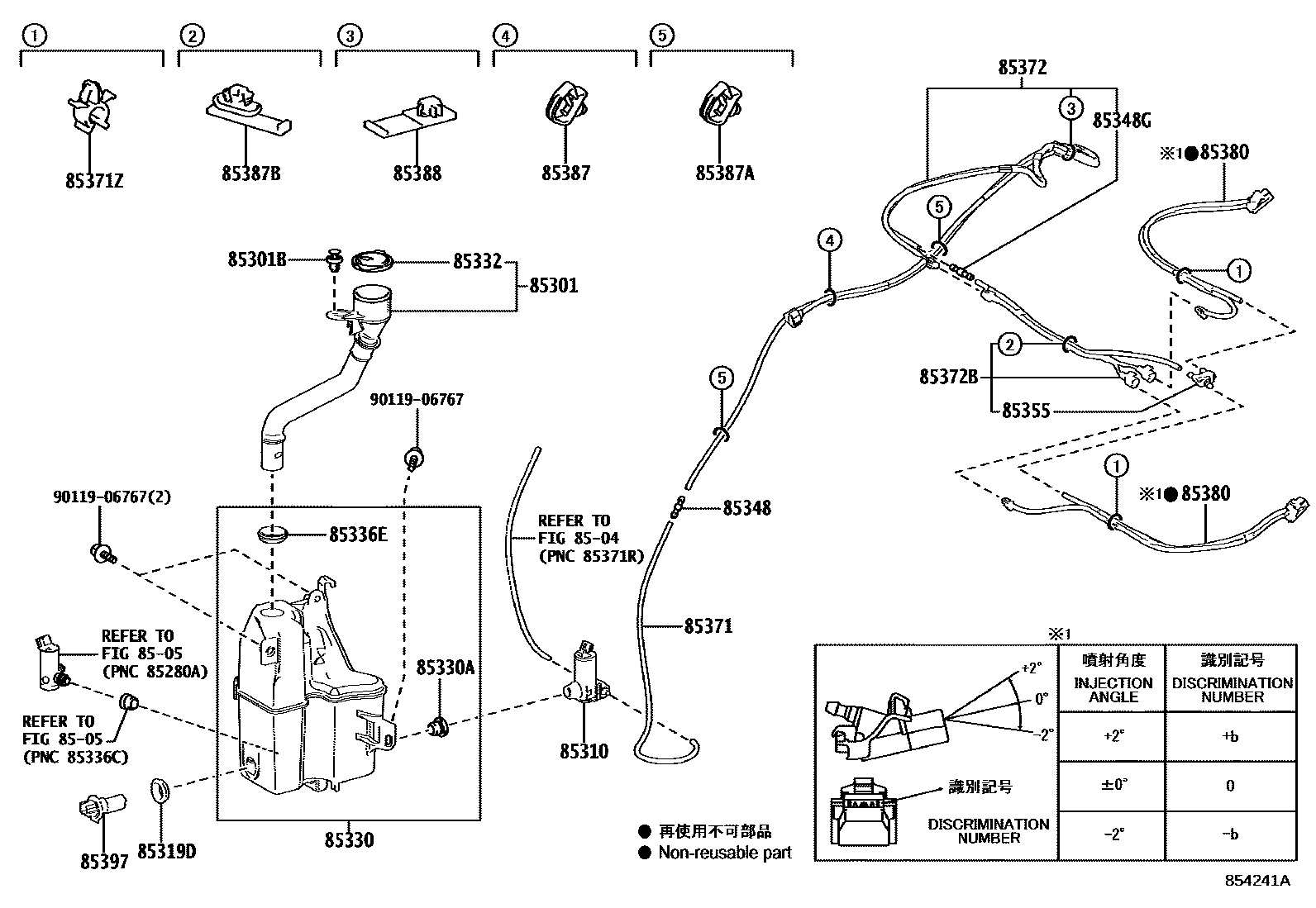

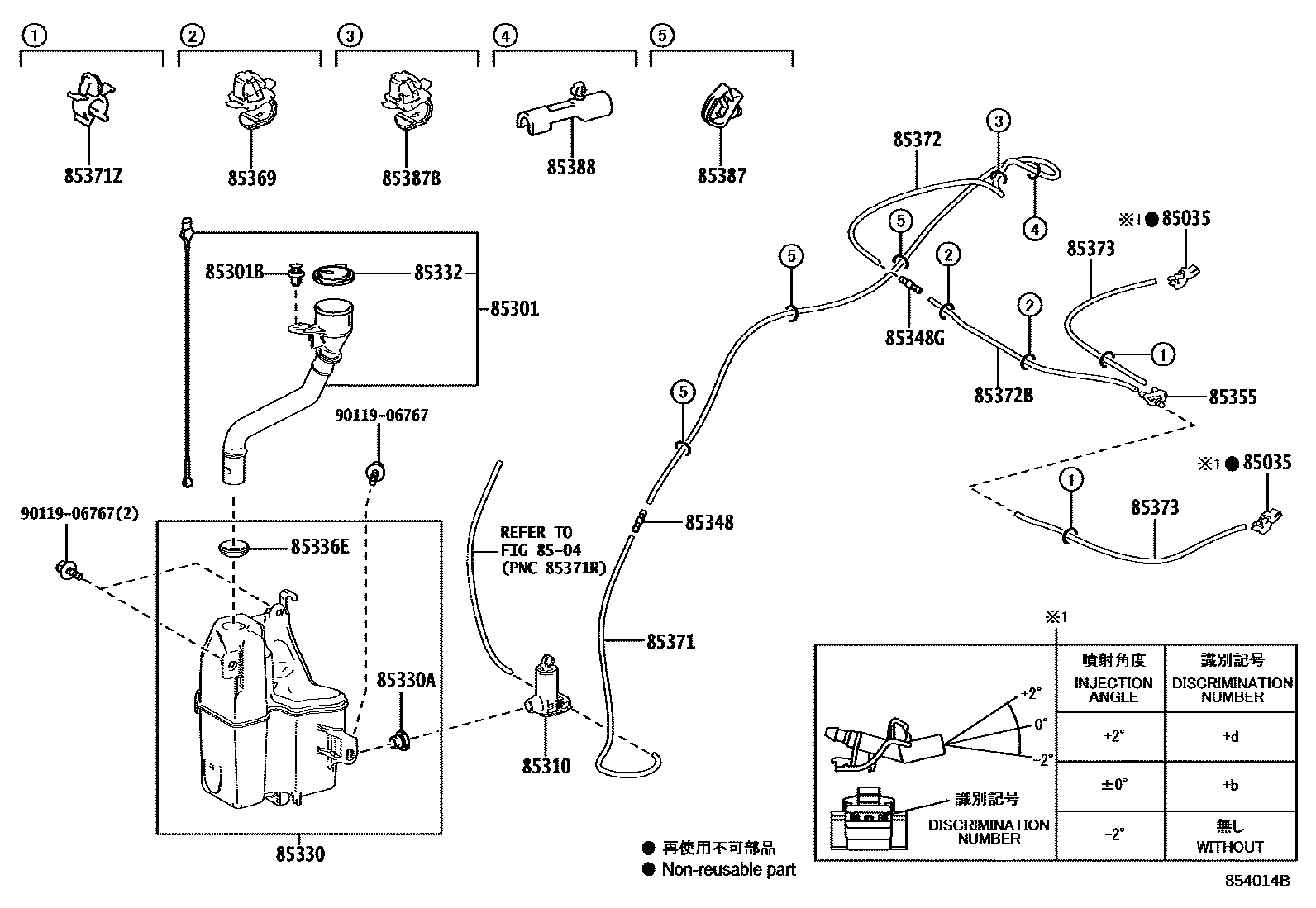

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 9 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85301-42030 · 85301-42031 · 85301-42040 · 85301-42041 |
| 85301B | ATTACHE, RONDELLE | 90467-07215 |
| 85310 | Windshield washer motor and pump assembly | 85330-47100 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-42460 · 85315-42470 · 85355-42190 · 85355-42191 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-42030 · 85316-42031 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348G | Windshield washer hose connector No. 2 | 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85369 | card holder | 85371-12040 |
| 85371Z | COLLIER, FLEX LAVE-VITRE | 90469-07011 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85370-42320 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 85370-42330 |
| 85380 | Front washer nozzle and hose assembly | 85380-42210 · 85380-42220 · 85380-42230 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-35520 |
| 85387A | Cleaner clip No. 2 | 82711-16790 |
| 85387B | No. 3 cleaner clip | 82711-52090 · 85371-12040 |
| 85388 | Clip No. 2 (for windshield washer) | 82711-3A540 · 85387-42280 |
| 85397 | Liquid level warning switch assembly | 85397-30400 |
