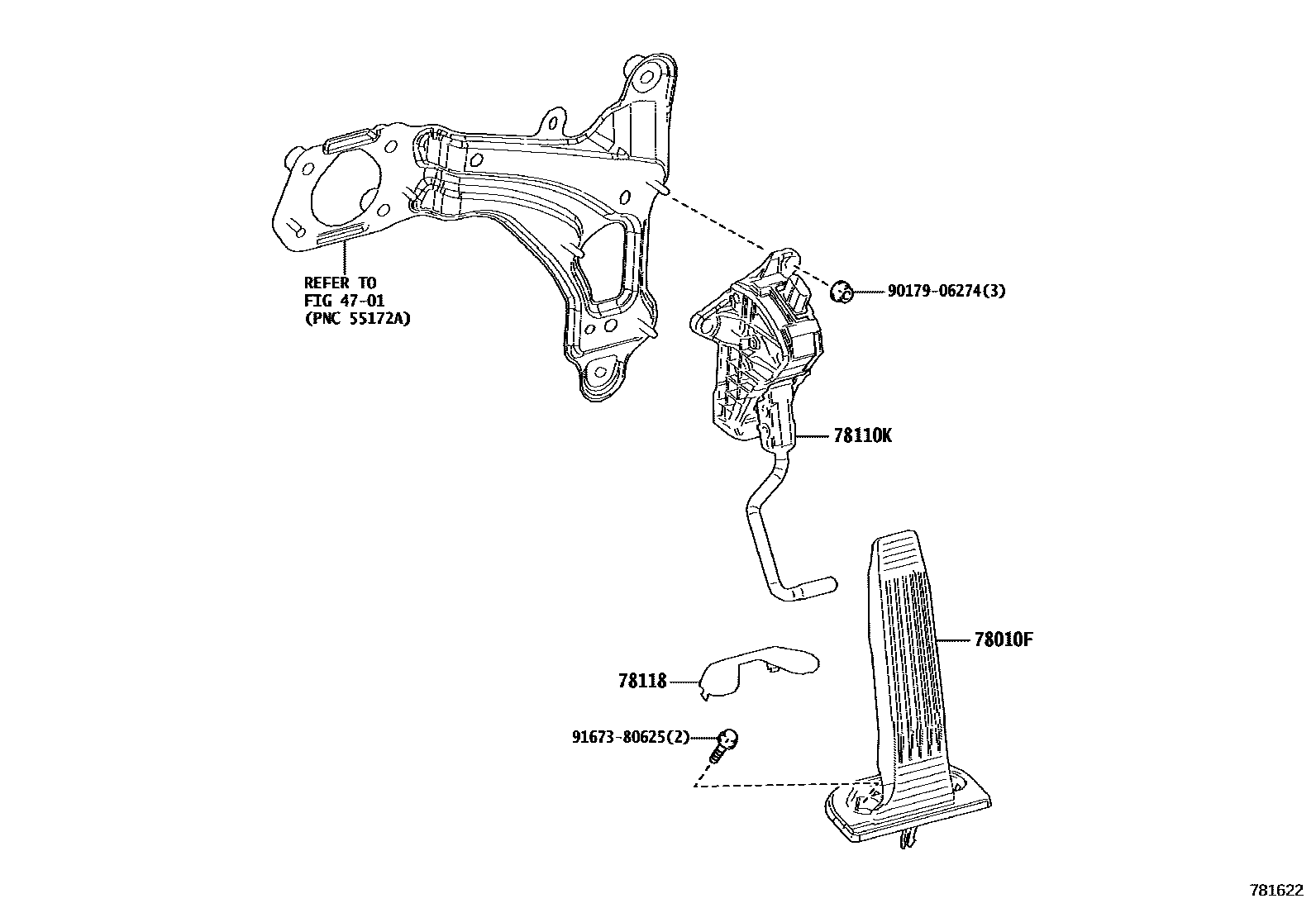

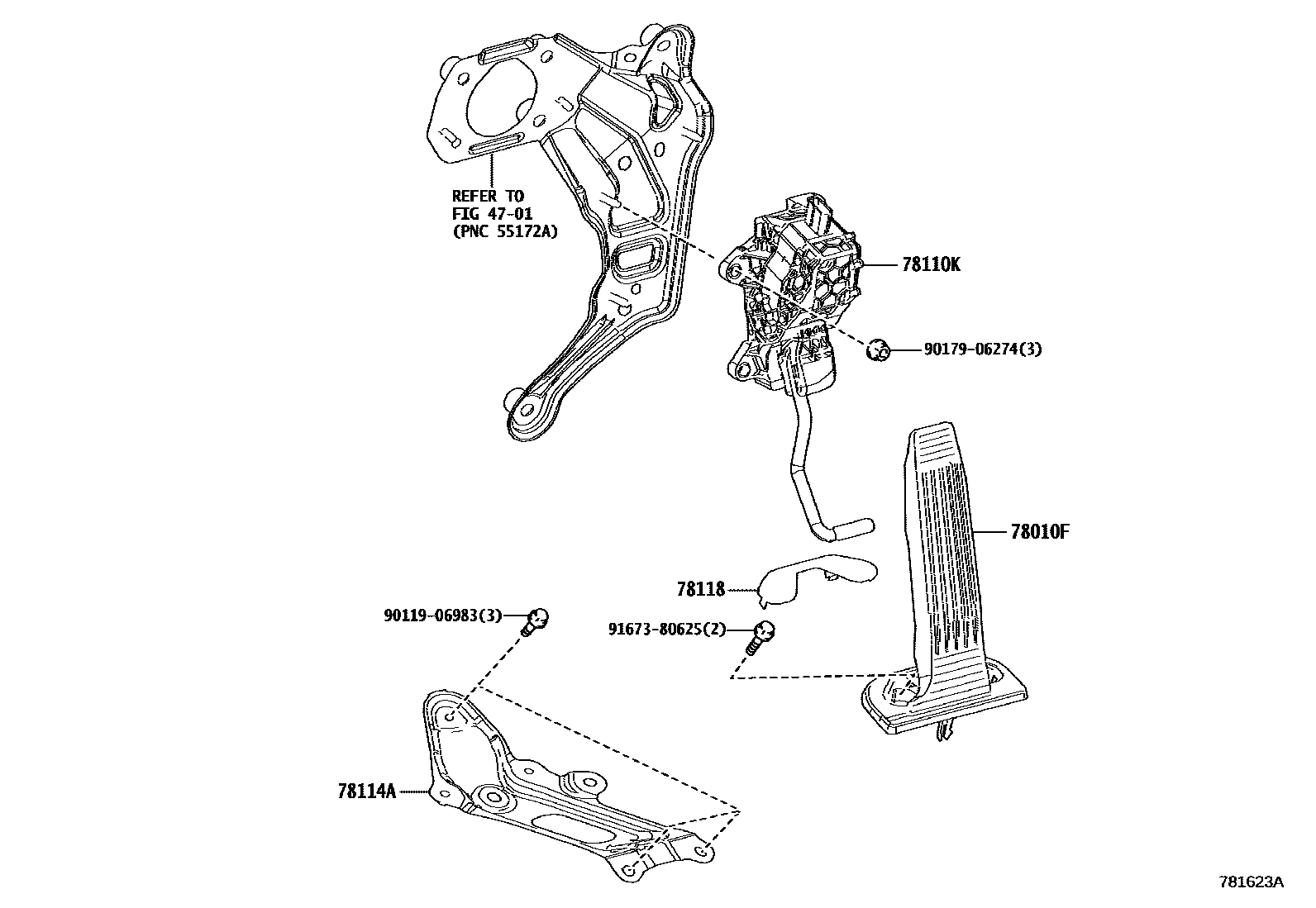

Toyota RAV4 accelerator pedal connecting rod — Figure 7851
Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78101-33060 · 78101-33061 |
| 78110K | Accelerator pedal sensor assembly | 78110-06121 · 78110-06122 · 78110-06131 · 78110-06132 · 78110-33130 · 78110-33131 · 78110-33140 · 78110-33141 · 78110-42060 · 78110-42061 · 78110-42070 · 78110-42071 |
| 78114A | accelerator pedal bracket | 78114-42030 |
| 78118 | accelerator pedal pad | 78117-33020 |
