Toyota RAV4 防护条 — Figure 7552

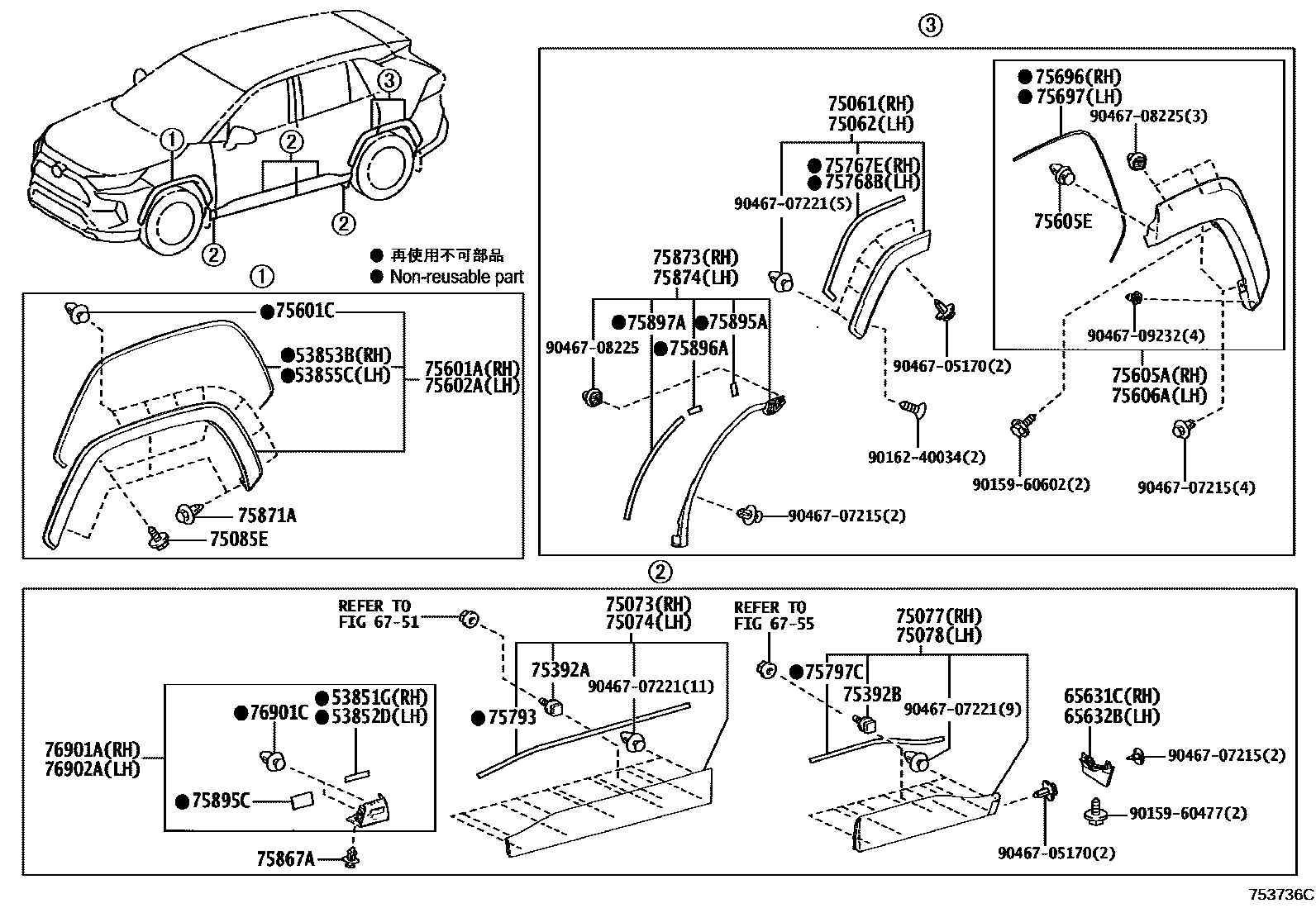

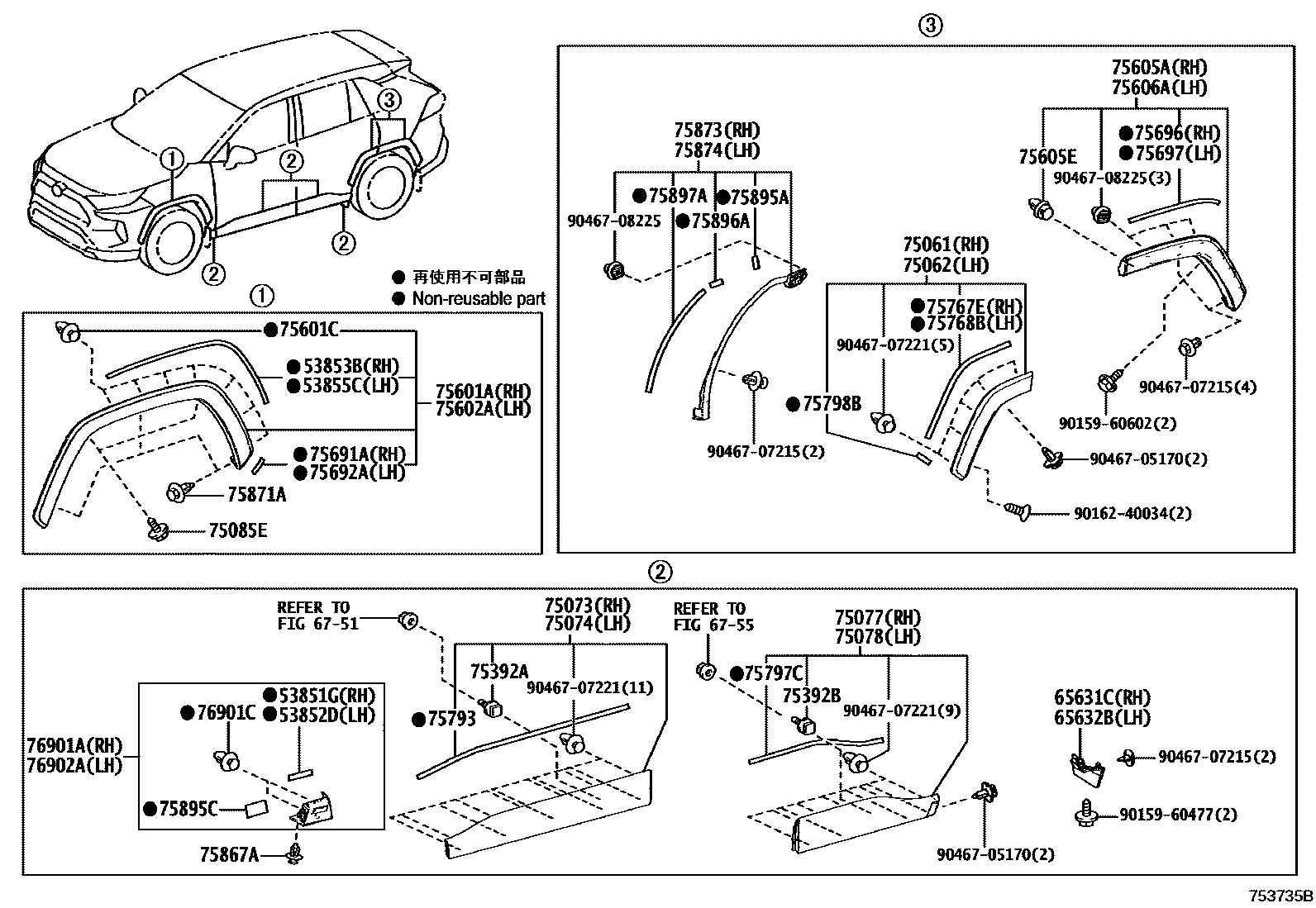

Toyota RAV4 EPC diagram 7552, 防护条, with 4 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851G | Right front fender outer panel pad | 53851-42280 |
| 53852D | Left front fender exterior panel pad | 53851-42280 |
| 53853B | No. 1 front fender outer panel pad | 53853-42040 · 53853-42050 · 53853-42120 |
| 53855C | REMB., EXTENSION OUVERTURE ROUE AV, NO.5 | 53853-42040 · 53853-42120 · 53855-42040 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-42030 · 60117-42031 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-42030 · 60118-42031 |
| 62791G | Protective strip on right corner window | 62791-42020 · 62791-42030 |
| 62792V | Protective strip on left corner window | 62792-42020 · 62792-42030 |
| 65631C | Right rear wheel house front panel | 65631-0R110 · 65631-42040 |
| 65632B | Left rear wheel house front panel | 65632-0R110 · 65632-42040 |
| 75061 | Outer protective strip components | 75061-42010 · 75061-42020-C0 · 75061-42030 |
| 75062 | JEU MOULURE, EXT, MG | 75062-42010 · 75062-42020-C0 · 75062-42030 |
| 75073 | SOUS-ENSEMBLE MOULURE, PORTE AVANT, INFERIEUR EXTERIEUR MD | 75073-42040 · 75073-42050-C0 |
| 75074 | SOUS-ENSEMBLE MOULURE, PORTE AVANT, INFERIEUR EXTERIEUR MG | 75074-42040 · 75074-42050-C0 |
| 75077 | Right rear door outer lower protective strip sub-assembly | 75077-42040 · 75077-42050-C0 |
| 75078 | Left rear door outer lower protective strip sub-assembly | 75078-42040 · 75078-42050-C0 |
| 75085E | VIS, NO.1 | 90159-60602 |
| 75392A | No. 1 outer protective strip fixings | 75392-33020 |
| 75392B | No. 1 outer protective strip fixings | 75392-33020 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-42050 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-42050 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-42050 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-42050 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52020 |
| 75601A | Right front fender protection strip sub-assembly | 75601-42160 · 75601-42170-C0 · 75601-42180 |
| 75601C | ATTACHE, MOULURE AILE AVANT | 75867-68010 |
| 75602A | Left front fender protection strip sub-assembly | 75602-42160 · 75602-42170-C0 · 75602-42180 |
| 75605A | Right side enclosure outer protective strip sub-assembly | 75605-42160 · 75605-42200-C0 · 75605-42220 |
| 75605E | CLIP, MOULURE EXT CUSTODE | 62217-13010 |
| 75606A | Left side enclosure outer protective strip sub-assembly | 75606-42150 · 75606-42160-C0 · 75606-42210 |
| 75691A | Right front fender outer protective strip liner | 75798-42030 |
| 75692A | Left front fender outer protective strip liner | 75798-42030 |
| 75696 | No. 1 body outer protective strip lining | 75696-42080 · 75696-42100 |
| 75697 | No. 2 body outer protective strip lining | 75696-42080 · 75697-42080 |
| 75711B | Right front door waistline protection strip | 75710-42050 |
| 75712B | Left front door waistline protection strip | 75720-42050 |
| 75721A | Right rear door waistline protection strip | 75730-42050 |
| 75722A | Left rear door waistline protection strip | 75740-42050 |
| 75753 | Protective strip on right front door window frame | 75071-42120 |
| 75754A | Protective strip on left front door window frame | 75072-42120 |
| 75755A | MOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT CTRL) | 75755-42020 |
| 75756D | MOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT CTRL) | 75756-42020 |
| 75761B | MOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT CTRL) | 75075-42090 |
| 75762B | MOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT CTRL) | 75076-42090 |
| 75763A | Protective strip on right rear door window frame | 75763-42010 |
| 75764A | Protective strip on left rear door window frame | 75764-42010 |
| 75765B | MOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT ARR) | 75765-42010 |
| 75766B | MOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT ARR) | 75766-42010 |
| 75767E | Right rear door protective strip lining | 75767-42030 · 75767-42040 |
| 75768B | Left rear door protective strip lining | 75767-42030 · 75767-42060 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75793 | Front door outer upper protective strip lining | 75793-42070 |
| 75797C | Rear door outer upper protective strip lining | 75797-42040 |
| 75798B | Rear door outer rear protective strip lining | 75798-42030 |
| 75850A | Right body door sill panel protective strip assembly | 75850-42030 · 75850-42031 |
| 75860A | Left body door sill panel protective strip assembly | 75860-42030 · 75860-42031 |
| 75867A | Door sill panel protective strip clip | 75867-33050 |
| 75867C | Door sill panel protective strip clip | 75867-30120 |
| 75867K | CLIP, MOULURE BAS DE CAISSE | 75867-30130 · 75867-68010 |
| 75871A | Clip (for No. 1 front fender protection strip) | 90467-07215 |
| 75873 | Right side panel wheel mouth protection strip | 75873-42010 |
| 75874 | Left side panel wheel mouth protection strip | 75874-42010 |
| 75895A | No. 1 protective strip tape | 75895-42020 |
| 75895C | No. 3 protective tape | 75895-42030 |
| 75896A | No. 2 protective strip tape | 75896-42040 |
| 75897A | No. 2 protective strip tape | 75897-42010 |
| 76901A | Right fender sub-assembly | 76901-42050 · 76901-42060-C0 |
| 76901C | CLIP, GARDE-BOUE PANNEAU AILE | 75867-68010 |
| 76902A | Left fender sub-assembly | 76902-42050 · 76902-42060-C0 |
| 76924H | No. 2 side fender fixings | 76924-52040 · 90467-22017 |
