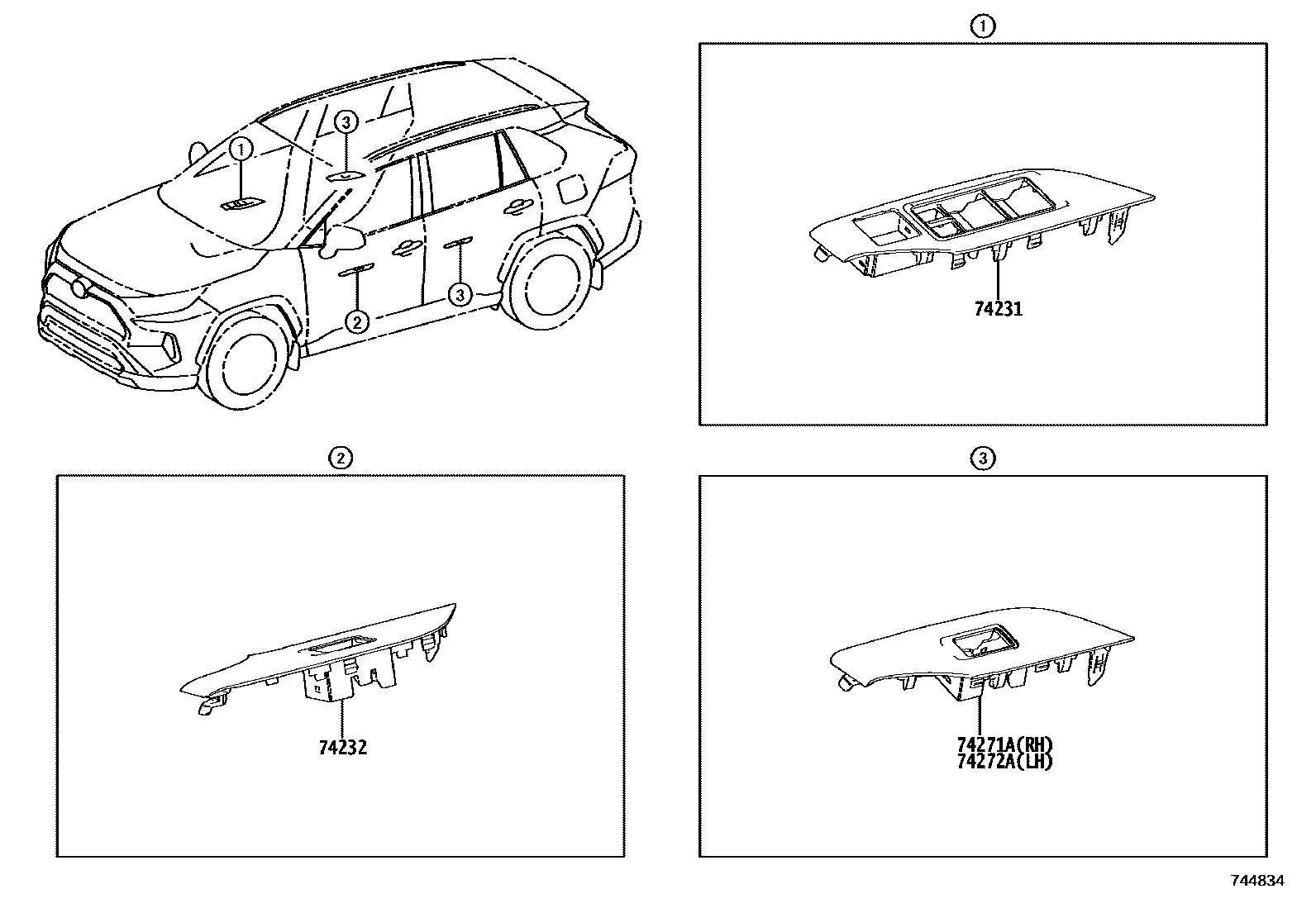

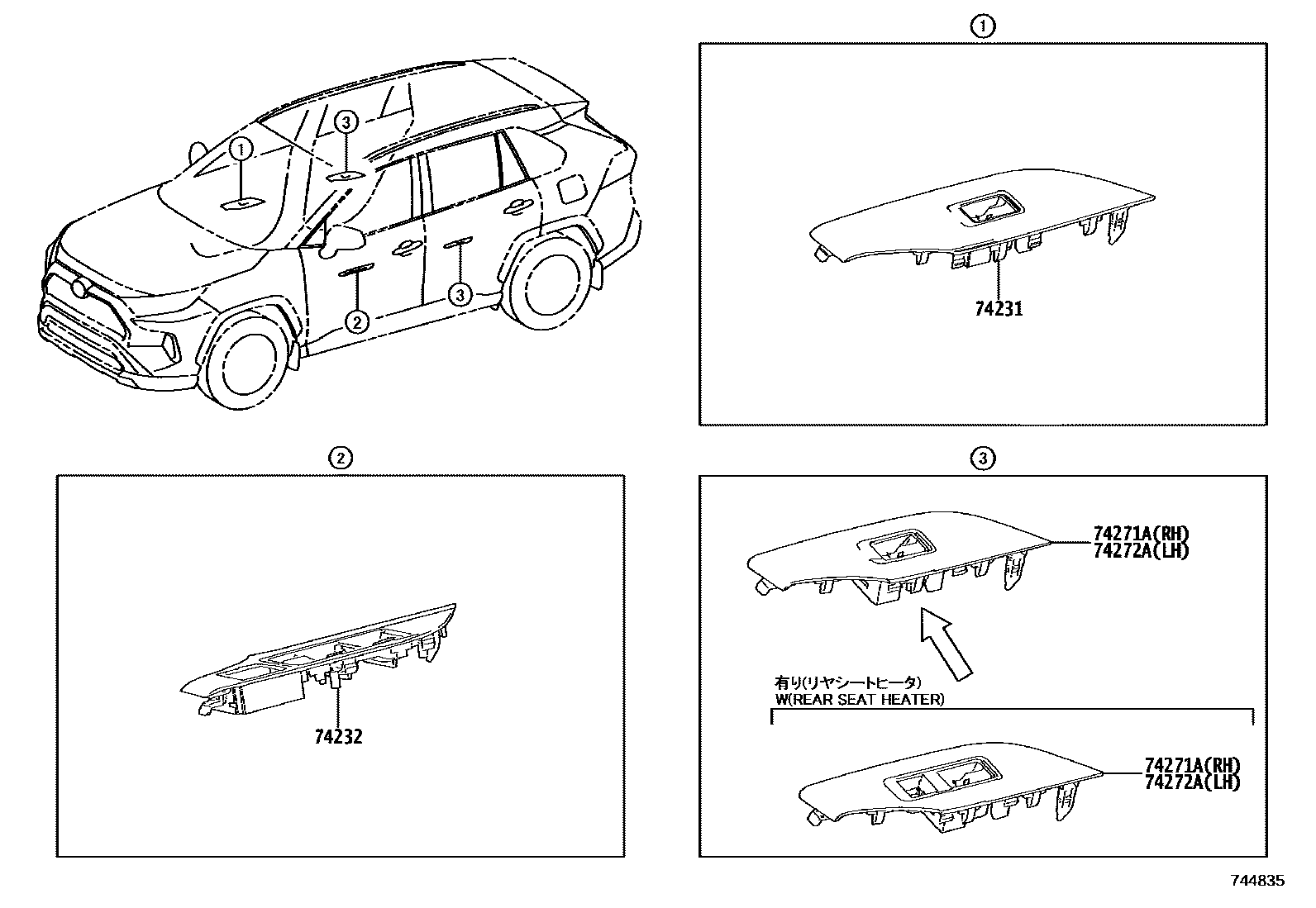

Toyota RAV4 扶手和遮阳板 — Figure 7451
Toyota RAV4 EPC diagram 7451, 扶手和遮阳板, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-42340 · 74231-42360 |
| 74232 | Left front armrest upper panel | 74232-42220 · 74232-42240 |
| 74271A | Right rear door armrest upper panel | 74271-42110 · 74271-42130 |
| 74272A | Left rear door armrest upper panel | 74272-42110 · 74272-42130 |
| 74310 | Right sun visor assembly | 74310-42661-B0 · 74310-42661-C0 · 74310-42681-B0 · 74310-42681-C0 · 74310-42701-B0 · 74310-42701-C0 |
| 74320 | Left sun visor assembly | 74320-42661-B0 · 74320-42661-C0 · 74320-42671-B0 · 74320-42671-C0 |
| 74348 | visor holder | 74348-47010-B3 · 74348-47010-C0 |
| 74610U | Auxiliary handle assembly | 74610-12140-B1 · 74610-12140-C0 |
| 74612 | Auxiliary handle cover | 74612-47070-B1 · 74612-47070-C2 |
| 74614A | Auxiliary handle locking plate | 74614-12020 |
| 74620C | Right rear auxiliary handle assembly | 74610-12170-B1 · 74610-12170-C0 |
| 74630E | Left rear auxiliary handle assembly | 74610-12180-B1 · 74610-12180-C0 |
