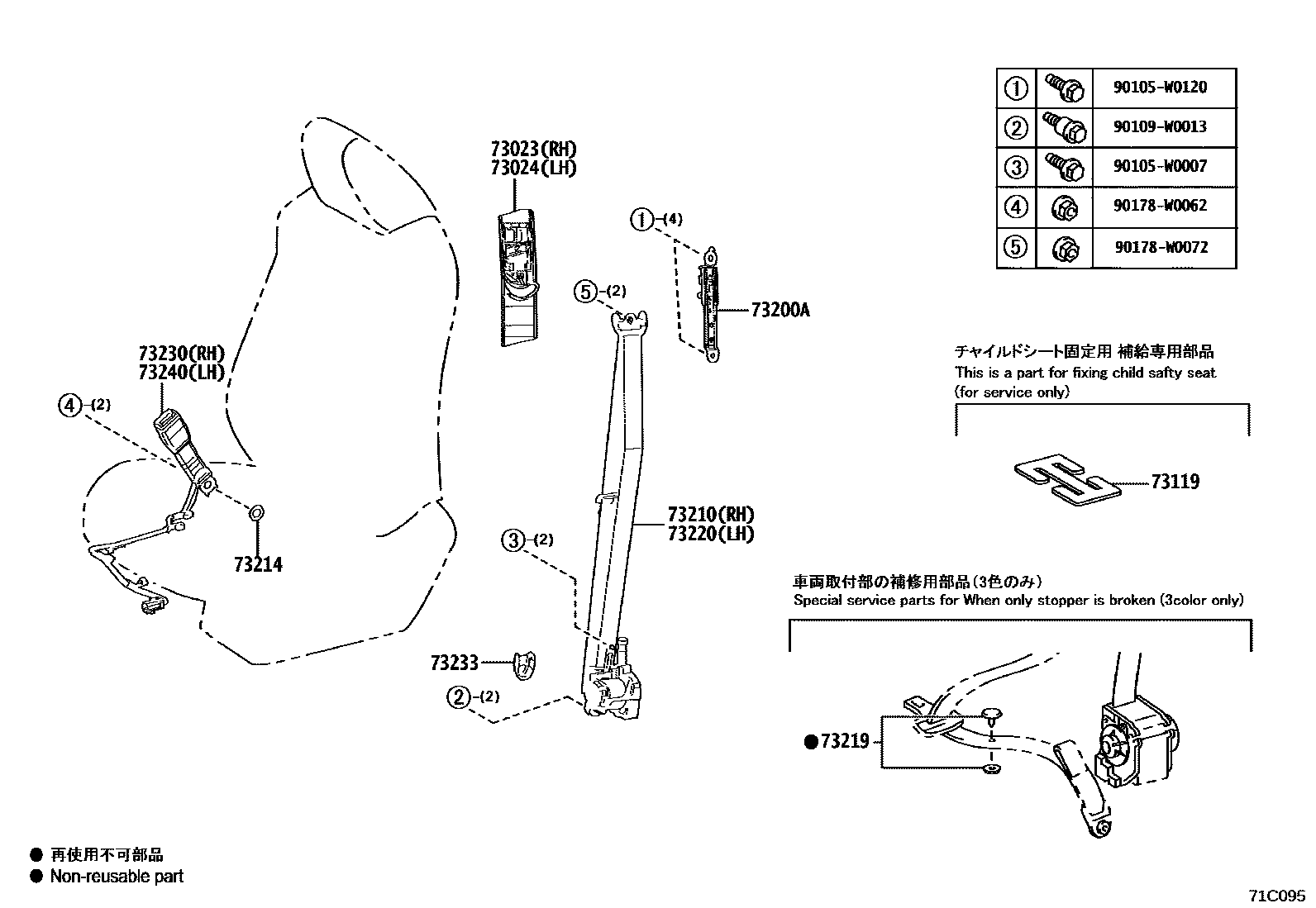

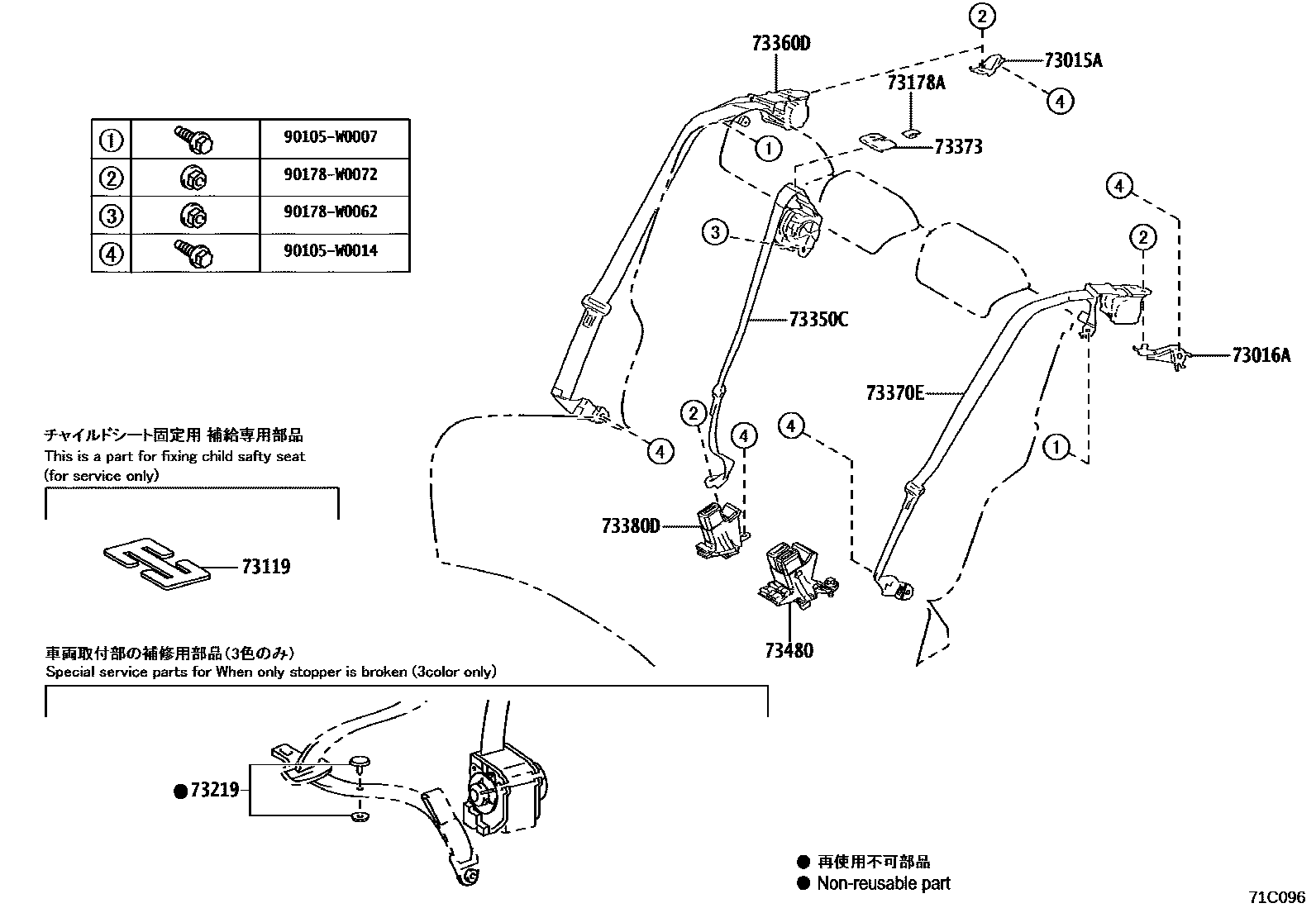

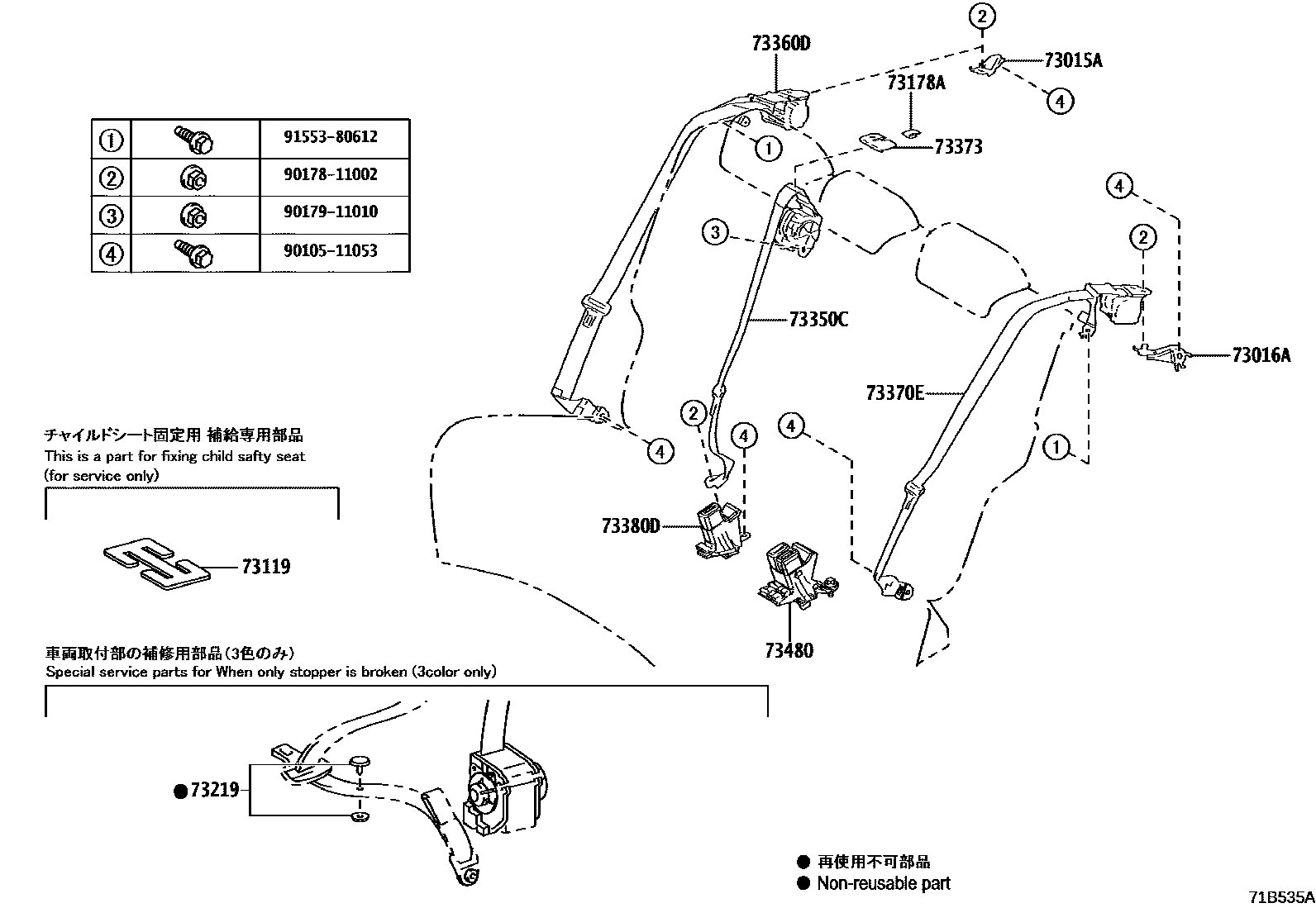

Toyota RAV4 seat belt — Figure 7152
Toyota RAV4 EPC diagram 7152, seat belt, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015A | Right seat belt outer anchor bracket sub-assembly | 73015-42010 |
| 73016A | Left side seat belt outer anchor bracket sub-assembly | 73016-42010 |
| 73023 | Front right shoulder safety belt anchor plate sub-assembly | 73023-12030-B0 · 73023-12030-C0 |
| 73024 | Front left shoulder safety belt anchor plate sub-assembly | 73024-12020-B0 · 73024-12020-C0 |
| 73119 | seat belt clip | 73119-22010 |
| 73178A | Seat belt anchor cover | 73178-48010-C1 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-12070 · 73200-42020 · 73200-F4010 |
| 73210 | Front right seat outer seat belt assembly | 73210-02690-C0 · 73210-47281-C7 · 73210-47282-C7 |
| 73214 | Front seat belt anchor plate | 73214-75010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73220 | Front left seat outer seat belt assembly | 73220-02630-C0 · 73220-47221-C7 · 73220-47222-C7 |
| 73230 | Front right seat inner seat belt assembly | 73230-0R330-C0 · 73230-42260-C0 · 73230-42270-C0 · 73230-42280-C0 · 73230-42340-C0 |
| 73233 | Lap belt outer anchor cover | 73233-02040-C2 · 73233-60020-C1 |
| 73240 | Front left seat inner seat belt assembly | 73230-0R340-C0 · 73230-0R350-C0 · 73230-42260-C0 · 73230-42270-C0 · 73230-42280-C0 · 73230-42350-C0 |
| 73350C | Rear center seat outer seat belt assembly | 73350-0R050-C0 · 73350-42020-C1 · 73350-42060-C0 |
| 73360D | ENS. CEINTURE, SIEGE ARR, EXT MD | 73360-0R120-C0 · 73360-42320-C1 · 73360-42321-C1 · 73360-42340-C0 · 73360-42430-C0 · 73360-42440-C0 |
| 73370E | ENS. CEINTURE, SIEGE ARR, EXT MG | 73370-0R120-C0 · 73370-42230-C1 · 73370-42231-C1 · 73370-42250-C0 · 73370-42340-C0 · 73370-42350-C0 |
| 73373 | Rear seat shoulder belt covers | 73373-48080-C1 |
| 73380D | Seat belt assembly in rear seat | 73380-0R120-C0 · 73380-42140-C0 · 73380-42150-C0 · 73380-42160-C0 · 73380-42190-C0 |
| 73480 | Rear left seat center inner seat belt assembly | 73480-0R060-C0 · 73480-42060-C0 · 73480-42070-C0 · 73480-42080-C0 · 73480-42100-C0 |
