Toyota RAV4 前门板和前门玻璃 — Figure 6751

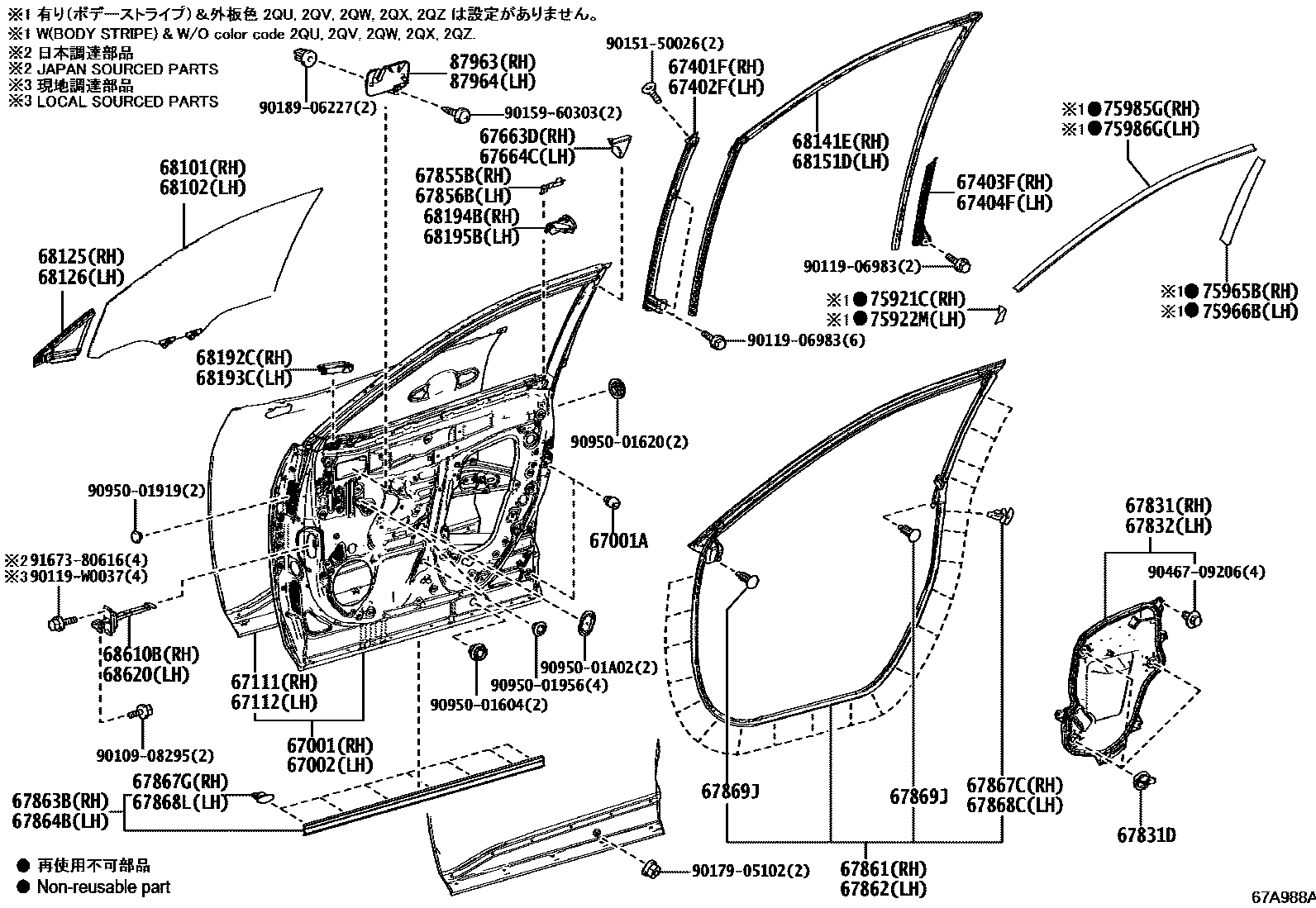

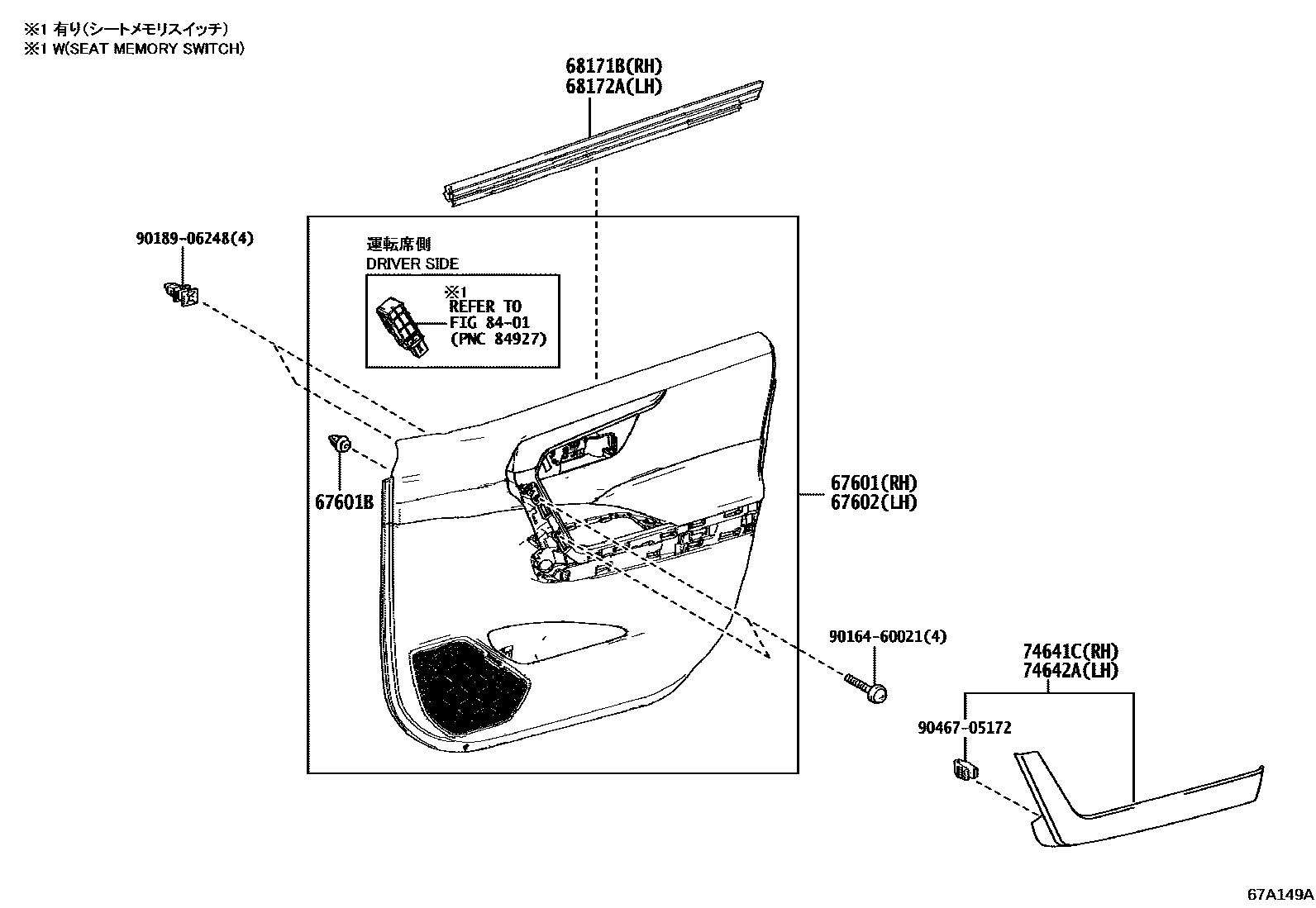

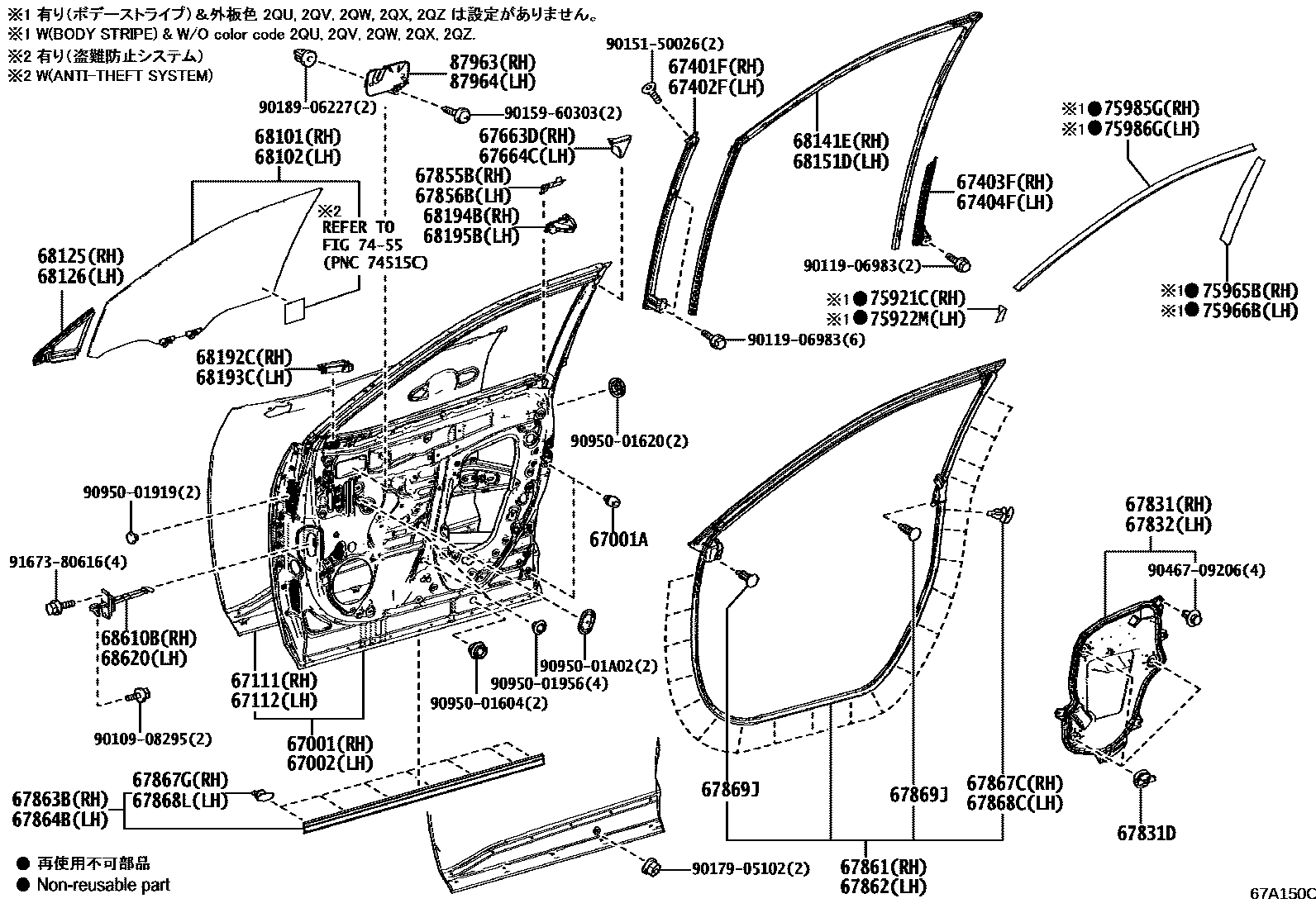

Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 3 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0R120 · 67001-0R121 · 67001-42160 · 67001-42161 |
| 67001A | Front door panel cushion | 90541-09137 |
| 67002 | Left front door panel sub-assembly | 67002-0R140 · 67002-0R141 · 67002-42180 · 67002-42181 |
| 67111 | Outer right front door panel | 67111-0R100 · 67111-42080 |
| 67112 | Outer left front door panel | 67112-0R100 · 67112-42080 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-42030 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-42030 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-42050 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-42050 |
| 67601 | Right front door decorative panel sub-assembly | 67610-0R160-C0 · 67610-0R161-C0 · 67610-0R260-C0 · 67610-0R261-C0 · 67610-0R341-C0 · 67610-42C50-C7 · 67610-42C50-C8 · 67610-42C50-C9 · 67610-42C60-C7 · 67610-42C60-C8 · 67610-42C70-C7 · 67610-42C70-C8 · 67610-42C70-C9 · 67610-42C80-C5 · 67610-42C80-C6 · 67610-42C90-C3 · 67610-42C90-C5 · 67610-42C90-C6 · 67610-42C90-C8 · 67610-42C90-C9 · 67610-42D00 · 67610-42D00-20 · 67610-42D00-C3 · 67610-42D00-C5 · 67610-42D00-C6 · 67610-42D00-C7 · 67610-42D00-C8 · 67610-42D00-C9 · 67610-42D10-C2 · 67610-42D10-C3 · 67610-42D10-C4 · 67610-42D10-C5 · 67610-42G30-C1 · 67610-42G40-C1 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67602 | Left front door decorative panel sub-assembly | 67620-0R270-C0 · 67620-0R271-C0 · 67620-0R280-C0 · 67620-0R281-C0 · 67620-0R290-C0 · 67620-0R292-C0 · 67620-42C50-C7 · 67620-42C50-C8 · 67620-42C50-C9 · 67620-42C60-C7 · 67620-42C60-C8 · 67620-42C70-C3 · 67620-42C70-C5 · 67620-42C70-C6 · 67620-42C80-C7 · 67620-42C80-C8 · 67620-42C80-C9 · 67620-42C90-C5 · 67620-42C90-C6 · 67620-42D00-C3 · 67620-42D00-C5 · 67620-42D00-C6 · 67620-42D00-C7 · 67620-42D00-C8 · 67620-42D00-C9 · 67620-42D30 · 67620-42D30-C2 · 67620-42D30-C3 · 67620-42D30-C4 · 67620-42D30-C5 · 67620-42D30-C6 · 67620-42G10-C1 · 67620-42G20-C1 |
| 67663D | Right door frame decorative strip | 67663-42030 |
| 67664C | Left door frame decorative strip | 67664-42030 |
| 67831 | Right front door access hole cover | 67831-42090 |
| 67831D | Catch (for front door access hole cover) | 67869-42010 · 67869-47010 |
| 67832 | Left front door access hole cover | 67832-42040 |
| 67855B | Right front door panel protector | 67855-0R040 · 67855-42030 |
| 67856B | Left front door panel protector | 67856-0R040 · 67856-42030 |
| 67861 | Right front door seal | 67861-42120 |
| 67862 | Left front door seal | 67862-42120 |
| 67863B | Right front door seal No. 2 | 67863-42040 |
| 67864B | Left front door seal No. 2 | 67864-42030 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-26050 |
| 68101 | Right front door glass sub-assembly | 68101-0R090 · 68101-42260 · 68101-42280 · 68101-42290 · 68101-42300 · 68101-42310 · 68101-42311 · 68101-42340 |
| 68102 | Left front door glass sub-assembly | 68102-0R090 · 68102-42270 · 68102-42290 · 68102-42300 · 68102-42310 · 68102-42320 · 68102-42321 · 68102-42350 |
| 68125 | Right front door fixed window glass | 68125-0R040 · 68125-42010 · 68125-42011 · 68125-42020 · 68125-42040 |
| 68126 | Left front door fixed window glass | 68126-0R040 · 68126-42010 · 68126-42011 · 68126-42020 · 68126-42040 |
| 68141E | Right front door glass lift channel | 68141-42120 · 68141-42121 |
| 68151D | Left front door glass lift channel | 68151-42120 · 68151-42121 |
| 68171B | Right front door glass inner sealing strip | 68171-42070 |
| 68172A | Left front door glass inner sealing strip | 68172-42070 |
| 68192C | Right front door beltline front seal | 68192-0R040 · 68192-42010 |
| 68193C | Left front door beltline front seal | 68193-0R040 · 68193-42010 |
| 68194B | Right front door beltline rear seal | 68194-0R040 · 68194-42010 |
| 68195B | Left front door beltline rear seal | 68195-0R040 · 68195-42010 |
| 68610B | Right front door opening limiter assembly | 68610-42060 |
| 68620 | Left front door opening limiter assembly | 68610-42060 |
| 74641C | Right front door auxiliary handle cover | 74641-42070-C0 |
| 74642A | Left front door auxiliary handle cover | 74642-42070-C0 |
| 75921C | No. 1 right side light-shielding film | 75921-42050 |
| 75922M | No. 1 left shading film | 75922-42050 |
| 75965B | Right front door outer rear trim strip | 75965-42010 |
| 75966B | Left front door outer rear trim strip | 75966-42010 |
| 75985G | Right front door outer trim | 75985-42050 |
| 75986G | Left front door outer trim | 75986-42030 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-42010 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-42010 |
