Toyota RAV4 前地板和前地板梁 — Figure 5851

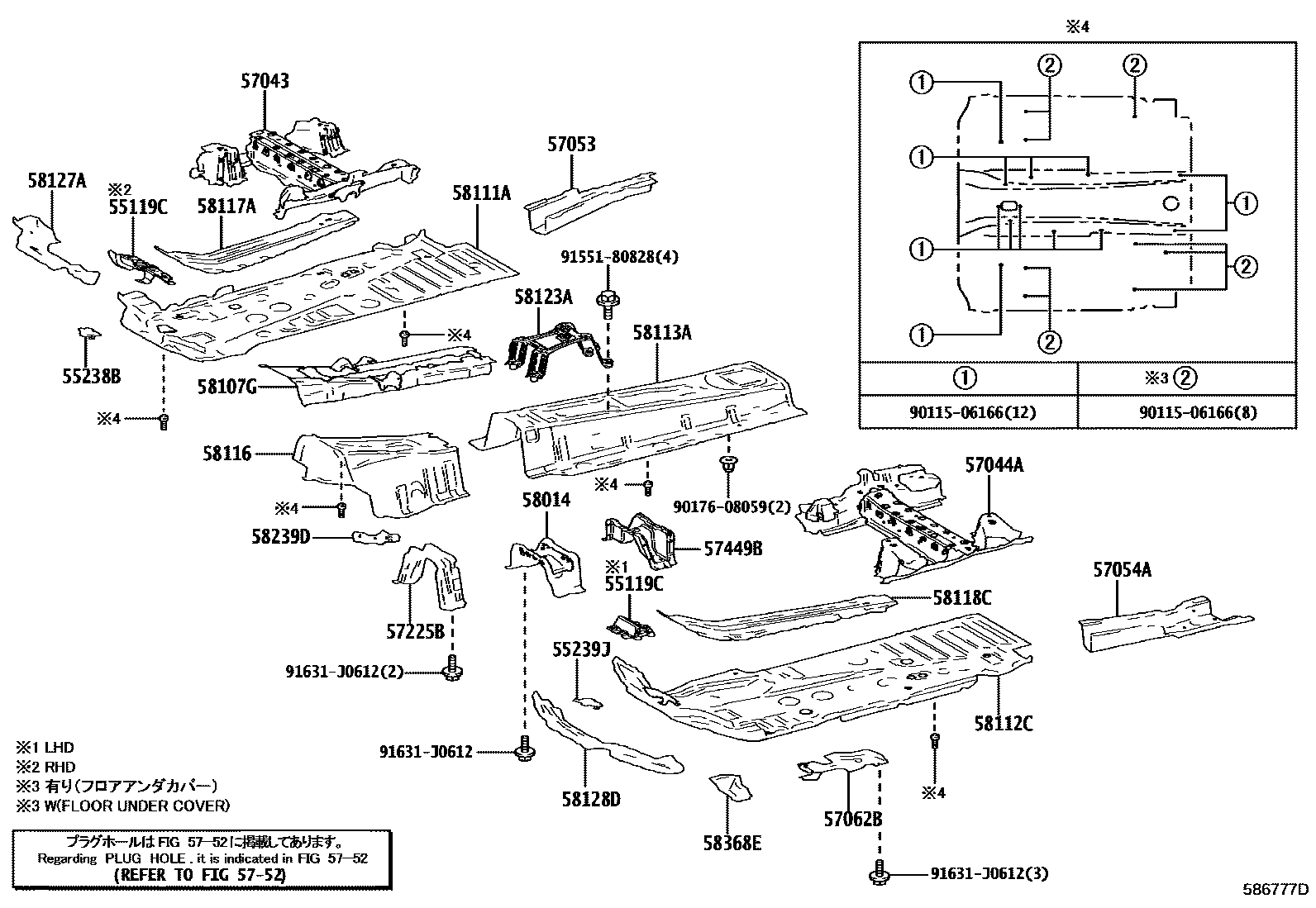

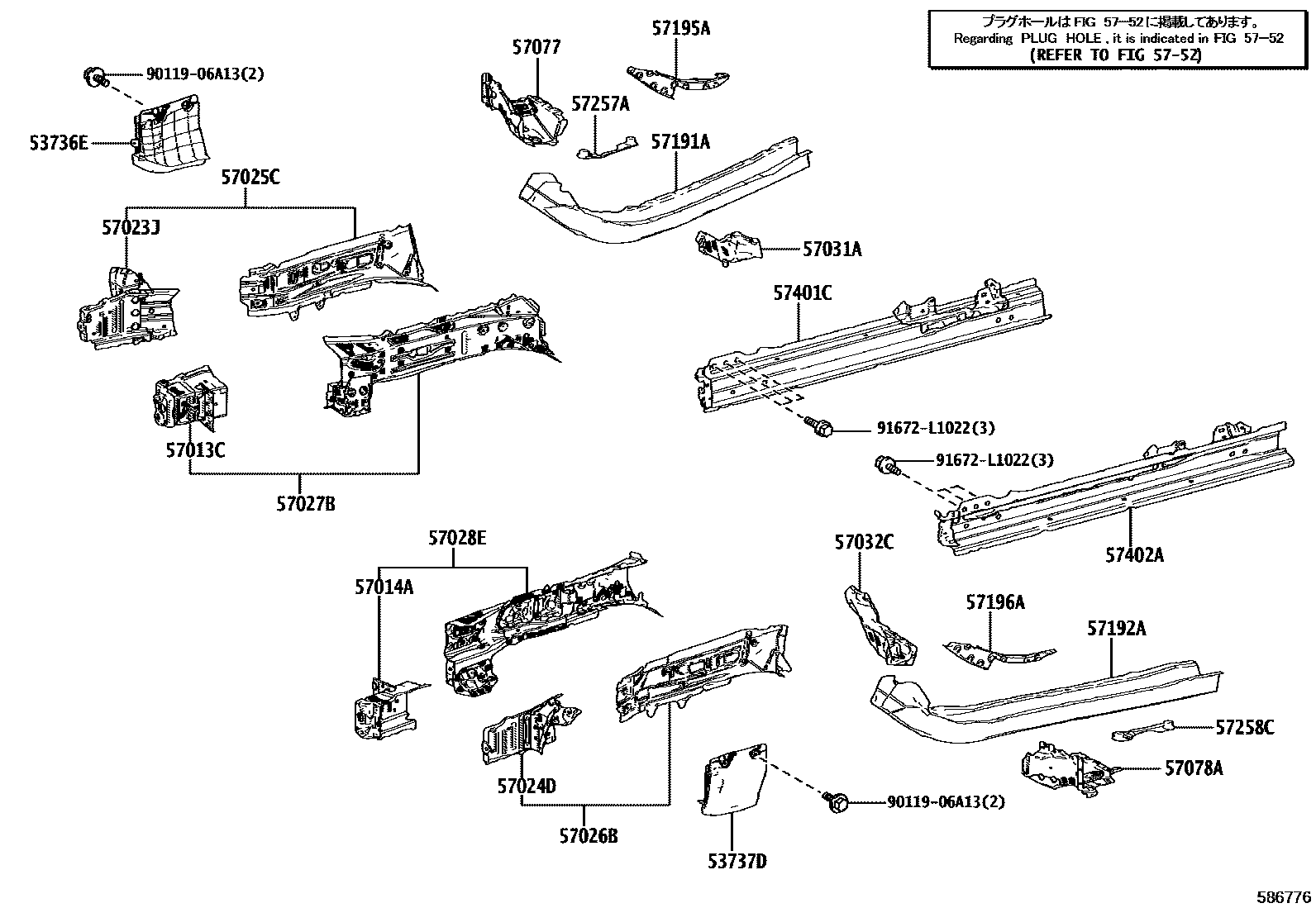

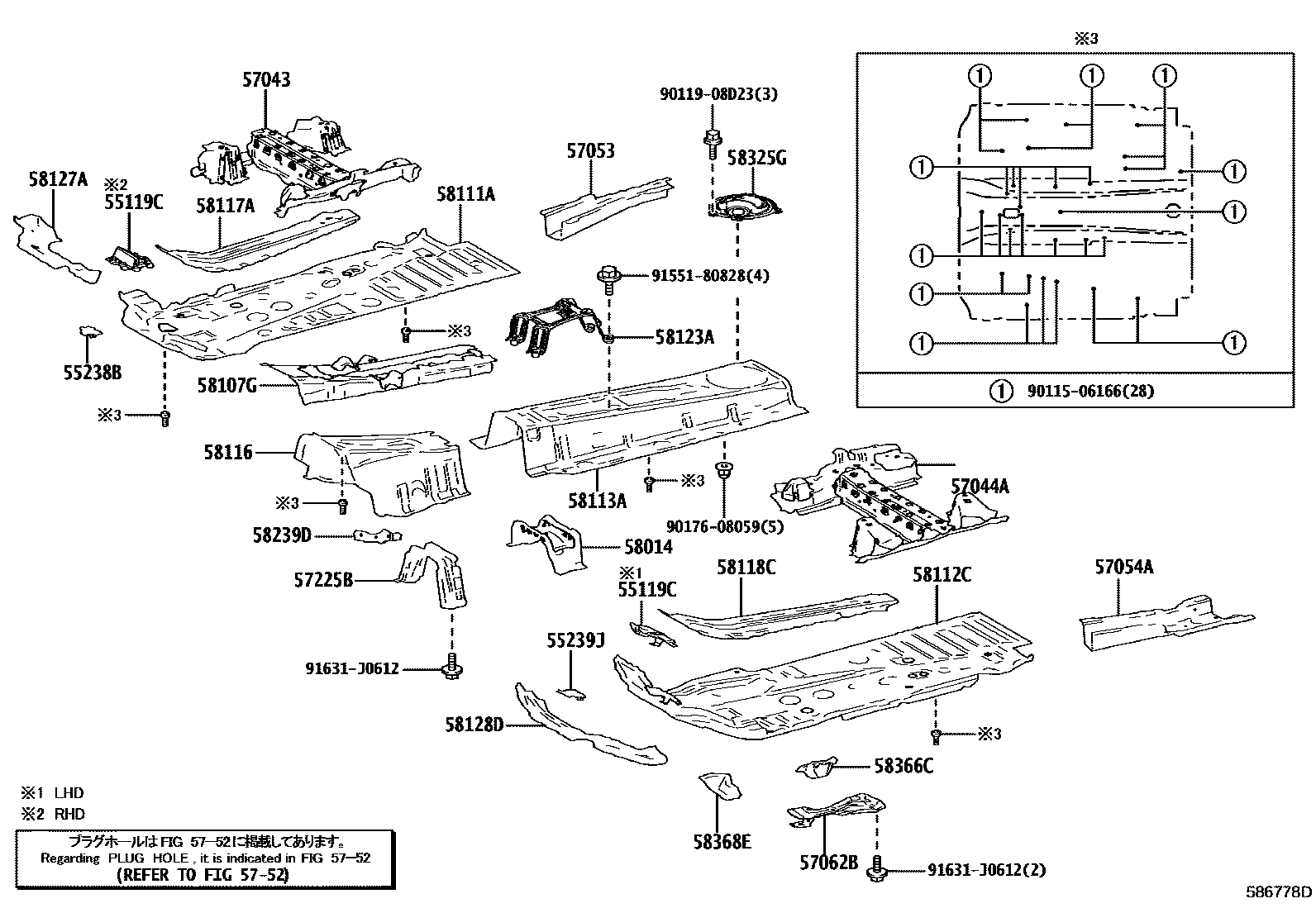

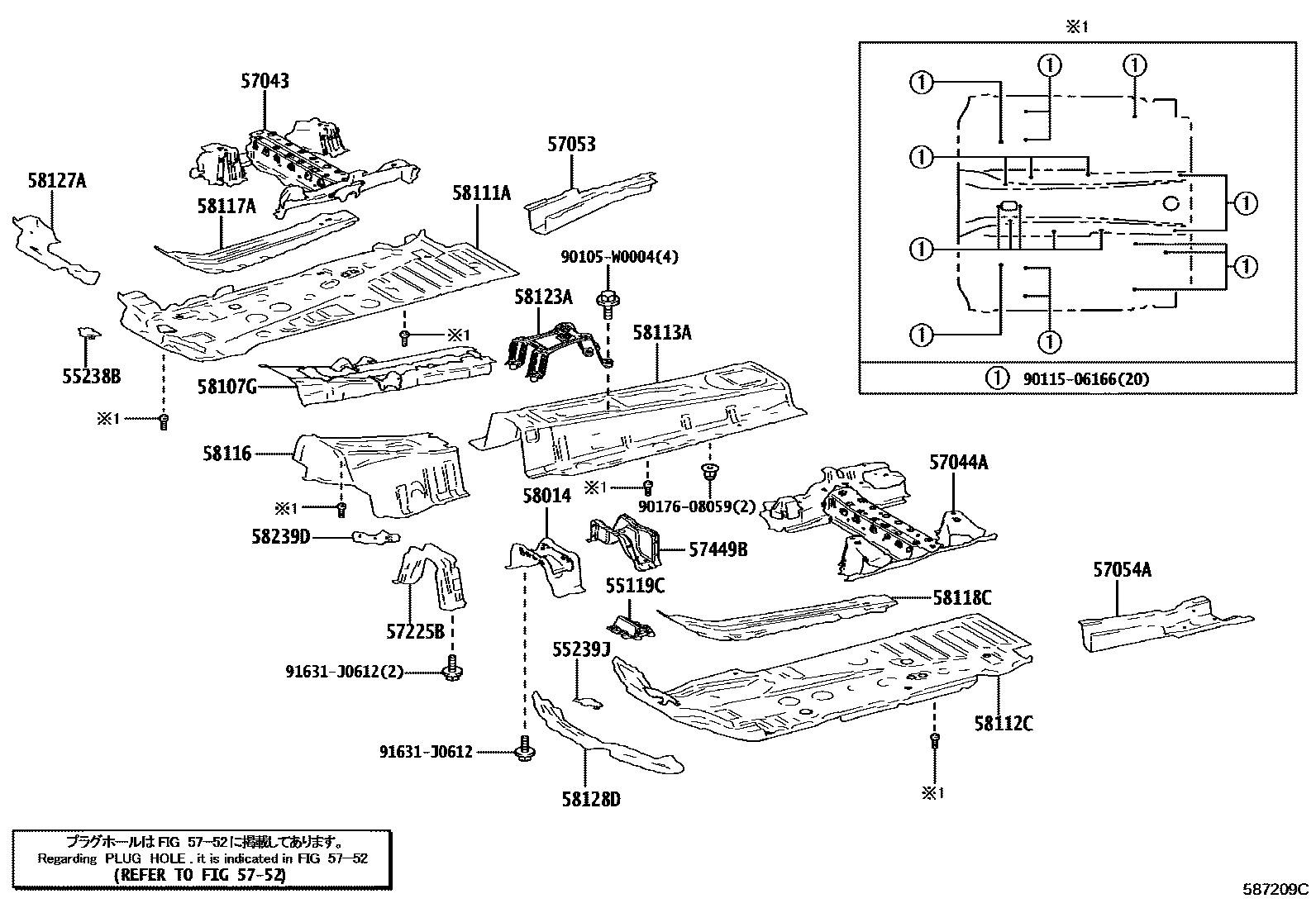

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 4 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53736E | Right front fender fender seal | 53736-0R070 · 53736-42050 |
| 53737D | Left front fender fender seal | 53737-0R040 · 53737-42010 |
| 55119C | SUPPORT, EMBRAYAGE AUX | 55119-42010 · 55119-42020 |
| 55238B | PLAQUE, ISOLANTE TABLEAU DE BORD, INF MD | 55238-42010 |
| 55239J | PLAQUE, ISOLANTE TABLEAU DE BORD, INF MG | 55239-42010 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-42010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-42010 |
| 57023J | SOUS-ENS. LONGERON, ARRIERE, MD | 57023-42010 |
| 57024D | SOUS-ENS. LONGERON, ARRIERE, MG | 57024-42010 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-0R050 · 57025-42010 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-0R050 · 57026-42020 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-0R040 · 57027-42020 |
| 57028E | SOUS-ENS. SUPPORT, SUPPORT CONVERTISSEUR | 57028-0R040 · 57028-42020 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-42010 |
| 57032C | SOUS-ENS. RENFORT, LONGERON AVANT, NO.2 MG | 57032-42010 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-42020 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-42020 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-42020 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-42020 · 57054-42030 |
| 57062B | SOUS-ENS. CONSOLE, SUPPORT RESERV CARB, MG | 57062-42020 · 57062-42030 · 57062-48050 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-42020 · 57077-42040 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-42020 · 57078-42040 |
| 57191A | Right rear longitudinal member inside front floor | 57191-42070 |
| 57192A | Left rear longitudinal member inside front floor | 57192-42070 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-42040 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-42030 |
| 57225B | RENFORT, SUPPORT FIXATION AVANT | 57225-42010 |
| 57257A | Engine rear suspension beam right bracket | 57257-42030 |
| 57258C | Engine rear suspension beam left bracket | 57258-42030 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-0R090 · 57401-42160 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-0R100 · 57402-42180 |
| 57449B | ARRETOIR, TRAVERSE PLANCHER CENTRALE, MG | 57449-42010 |
| 58014 | Front floor and rear lower panel sub-assembly | 58014-42010 |
| 58107G | SOUS-ENS. RENFORT, BASE FREIN STATIONNEMENT | 58107-42010 · 58107-42020 |
| 58111A | Front floor right bottom panel | 58111-0R080 · 58111-42220 |
| 58112C | Front floor left bottom panel | 58112-0R070 · 58112-42030 |
| 58113A | front floor center panel | 58113-42030 · 58113-42040 |
| 58116 | Shift cable mounting plate | 58116-42030 |
| 58117A | Front floor right reinforcement | 58117-42020 |
| 58118C | Front floor left reinforcement | 58118-42030 |
| 58123A | shift lever bracket | 58123-0R080 · 58123-42060 · 58123-42070 · 58123-42080 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-42010 · 58127-42011 |
| 58128D | RENFORT, TRAVERSE AVANT A ELEMENT PANNEAU AVANT, MG | 58128-42020 · 58128-42021 |
| 58239D | Cable clip bracket | 58239-42010 |
| 58325G | Rear floor access hole cover | 58325-42040 |
| 58366C | Fuel tank rear bracket reinforcement | 58366-42010 |
| 58368E | SUPPORT, TUYAU CARBURANT, NO.2 | 58368-42010 |
