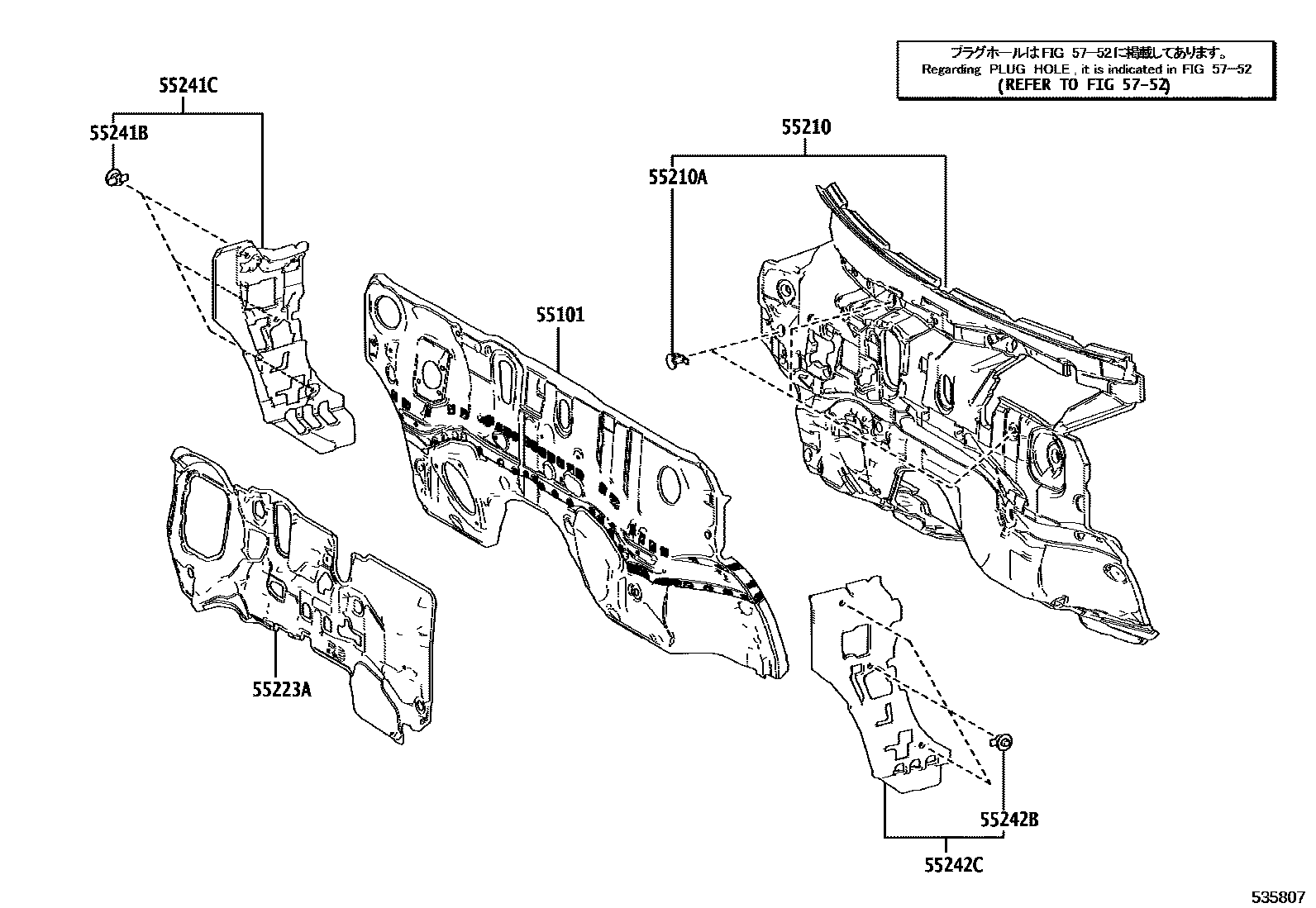

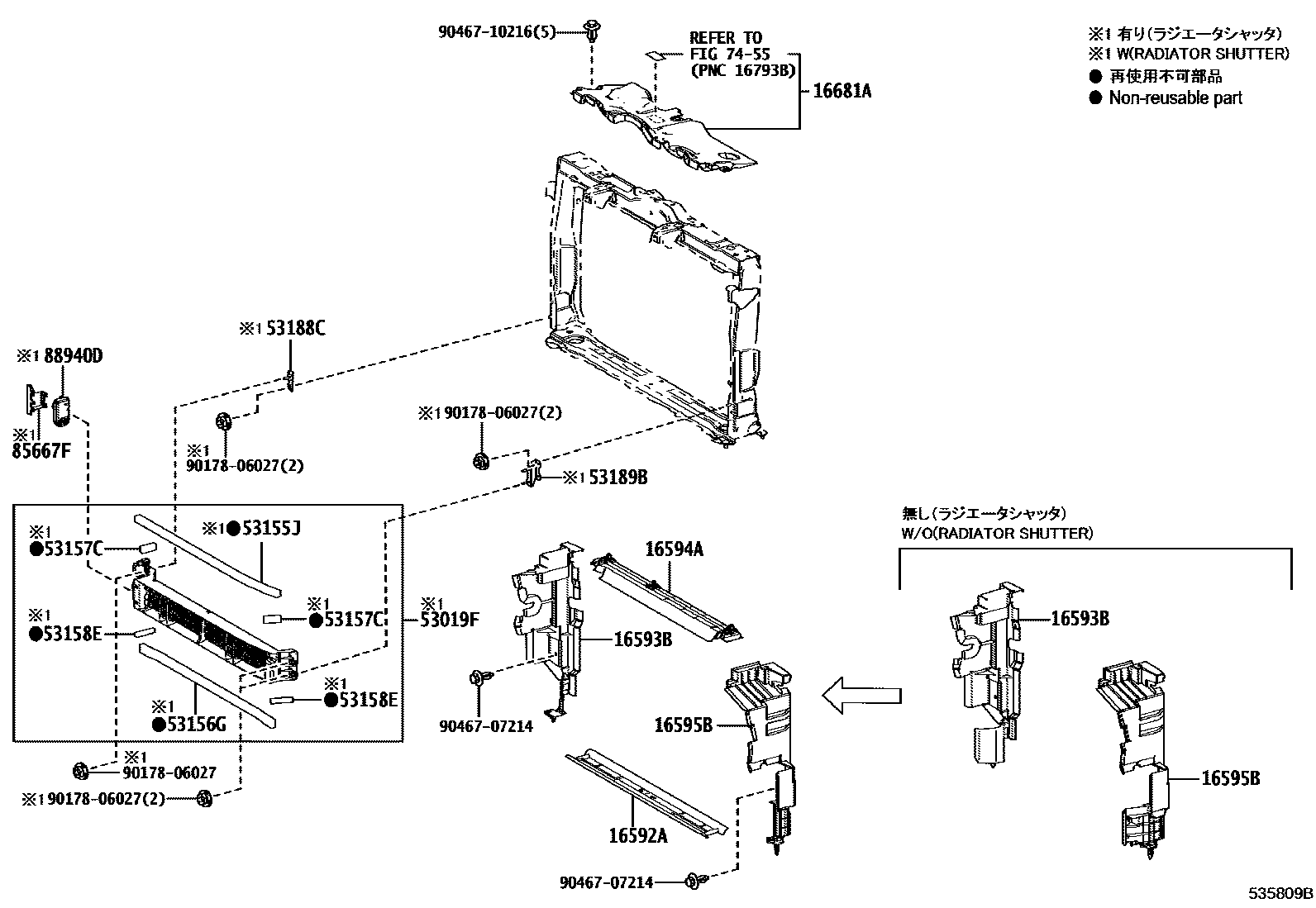

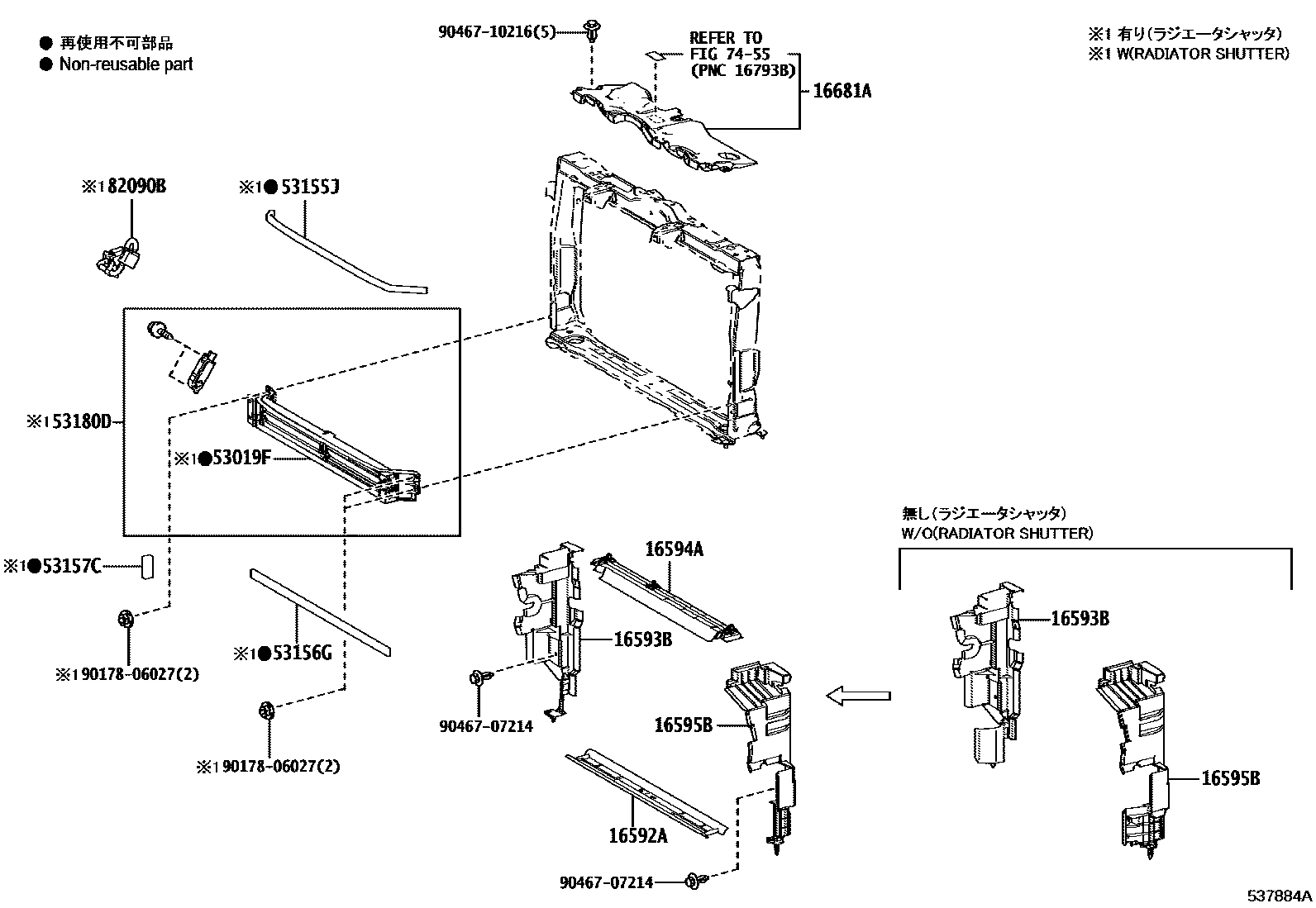

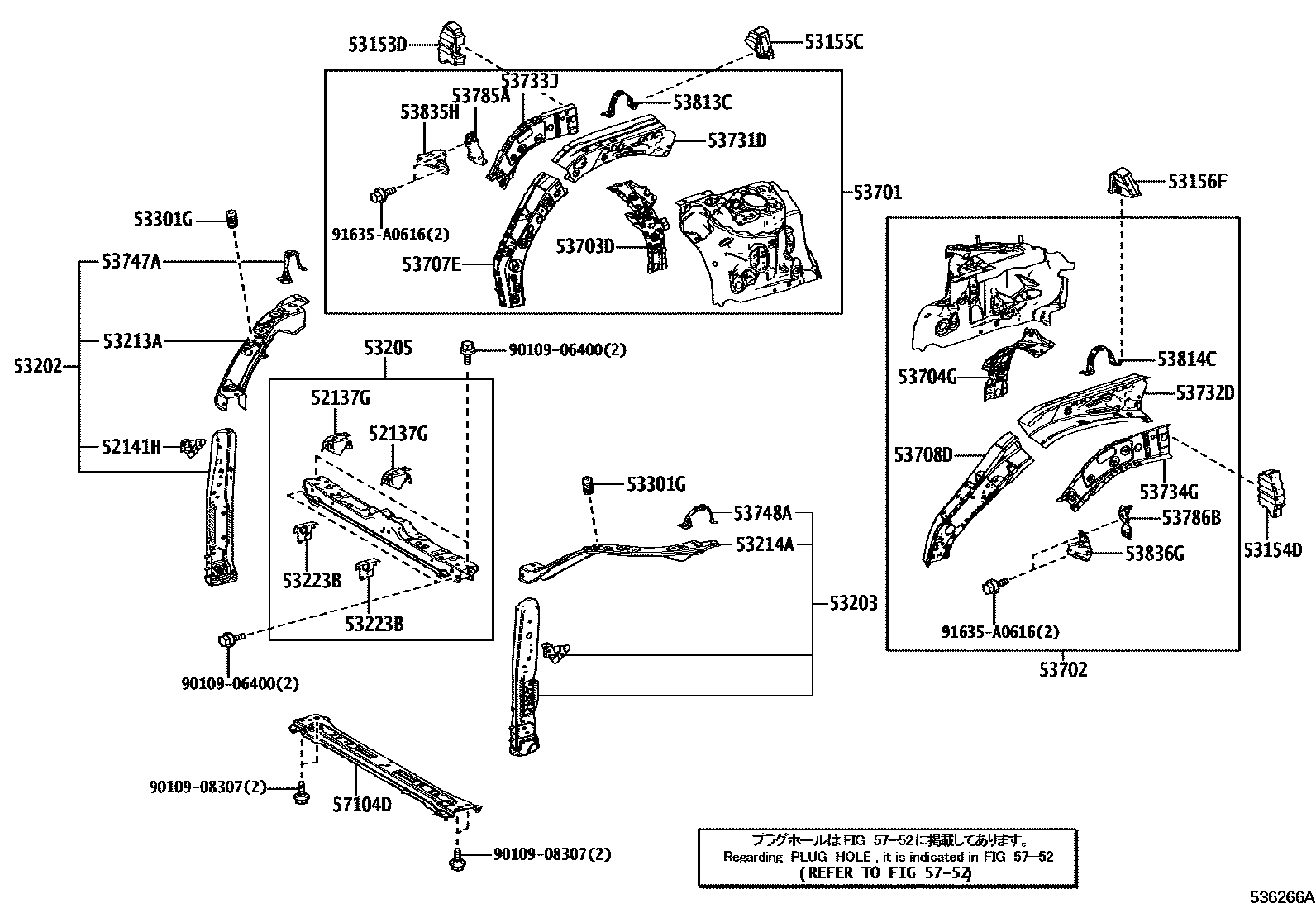

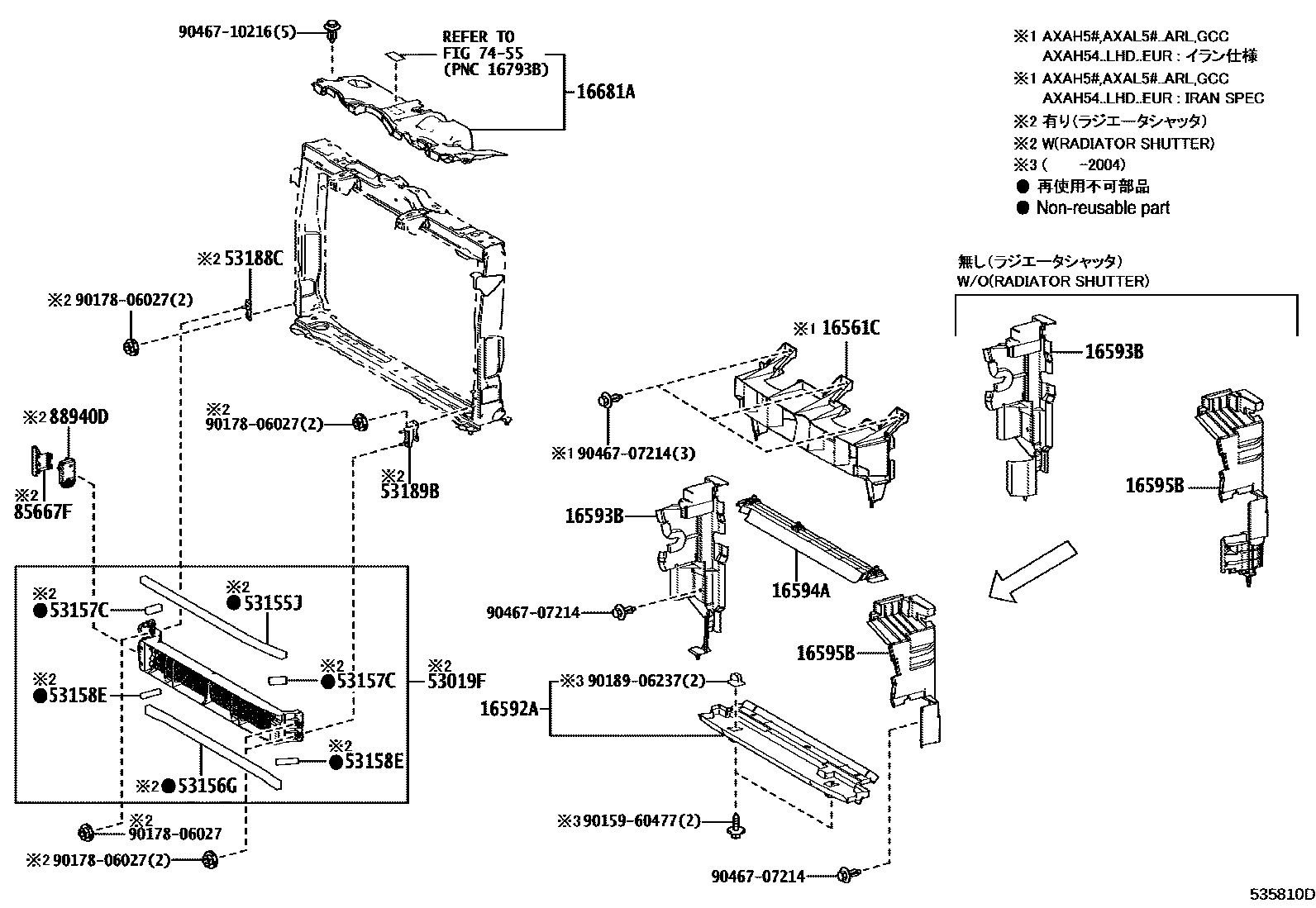

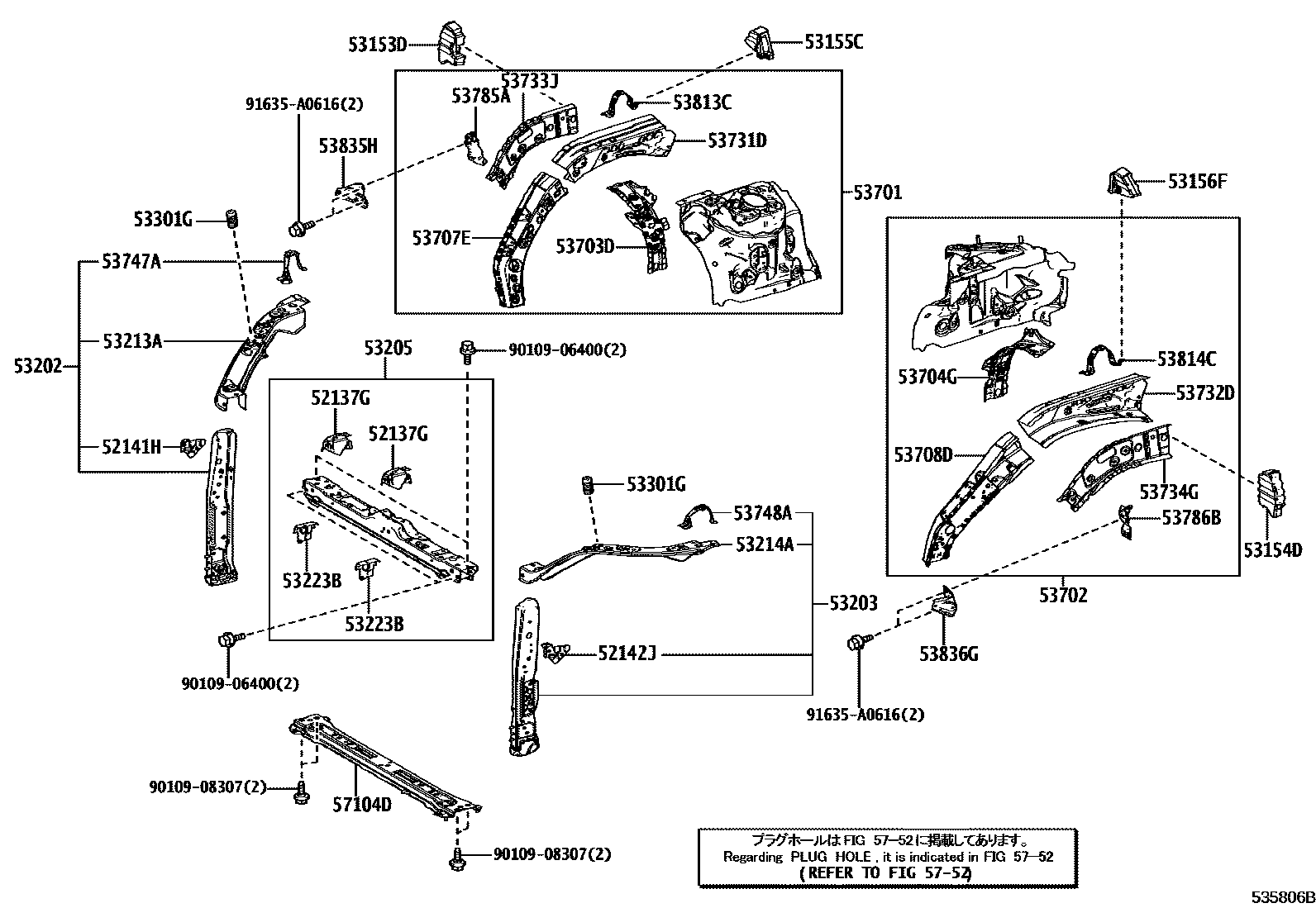

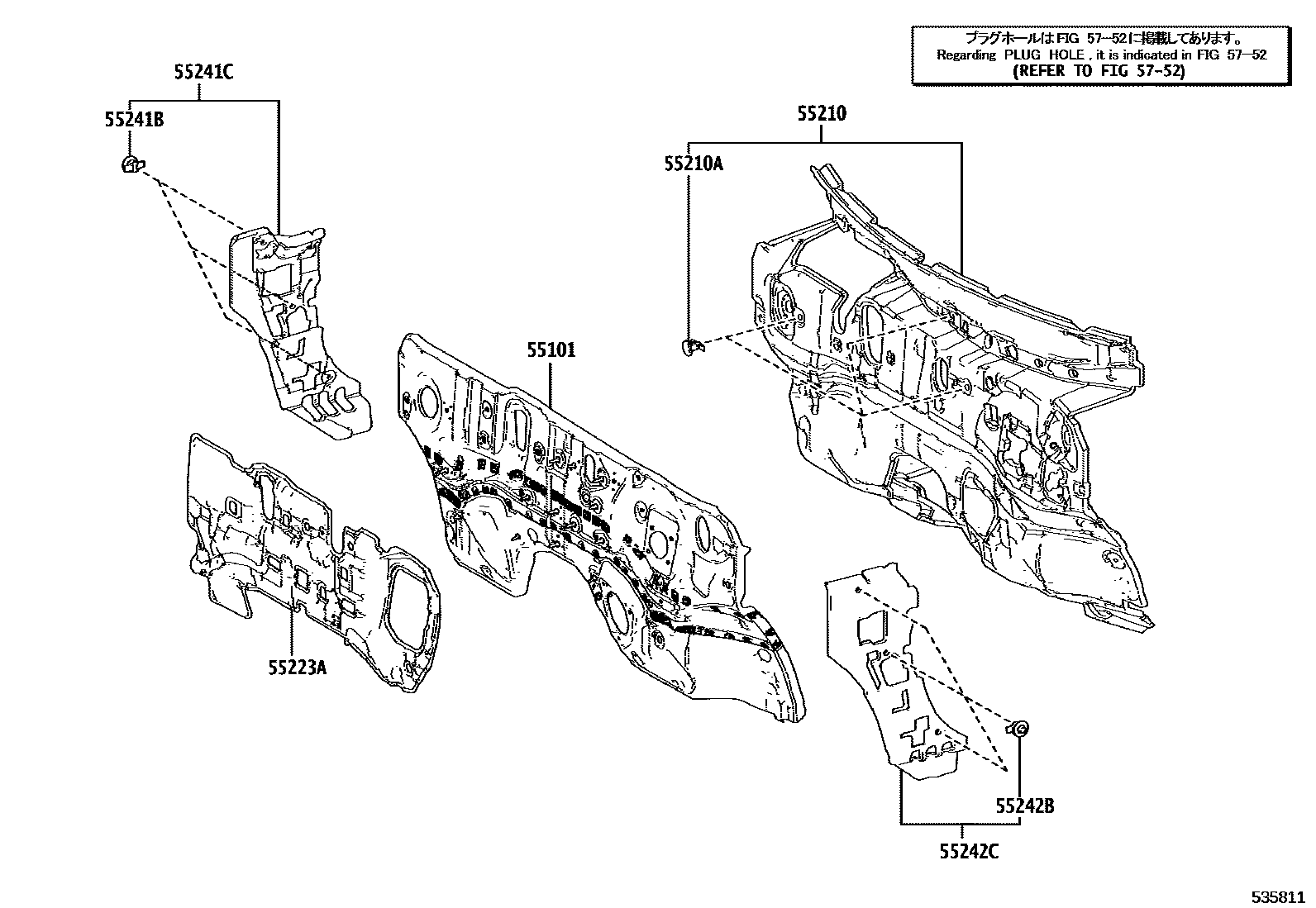

Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355
Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 7 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561C | JOINT, RADIATEUR AU SUPPORT, NO.1 | 16561-25020 |
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-25010 · 16592-25030 · 16592-25040 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-25110 · 16593-25120 · 16593-25280 · 16593-25290 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-25020 · 16594-25040 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-25100 · 16595-25110 · 16595-25120 · 16595-25270 · 16595-25280 |
| 16681A | PLATEAU, DIFFUSEUR D'AIR SUPERIEUR DU RADIATEUR | 16681-25010 · 16681-25020 |
| 52137G | SUPPORT, FIXATION BRAS PARE-CHOCS AV, NO.3 | 52137-42030 |
| 52141H | Front bumper right upper arm | 52141-42030 |
| 52142J | Front bumper left upper arm | 52142-42020 |
| 53019F | OBTURAT SS-ASS, RADIATEUR | 53019-42020 · 53019-42040 · 53019-42050 |
| 53153D | Radiator grille right deflector | 53153-0R060 · 53153-42020 |
| 53154D | Radiator grille left deflector | 53154-0R060 · 53154-42030 |
| 53155C | Radiator grille seal No. 1 | 53155-0R090 · 53155-42050 |
| 53155J | JOINT ETANCHEITE NO.1 CALANDRE RADIATEUR | 53155-42060 · 53155-48130 |
| 53156F | JOINT, GRILLE DE RADIATEUR, NO.2 | 53156-0R100 · 53156-42030 |
| 53156G | JOINT ETANCHEITE NO.2 CALANDRE RADIATEUR | 53156-42040 · 53156-42050 · 53156-42070 · 53156-48060 |
| 53157C | JOINT, GRILLE DE CALANDRE, NO.3 | 53157-42020 · 53157-42050 |
| 53158E | JOINT, GRILLE RADIATEUR, NO.4 | 53158-42010 |
| 53180D | ENS. DE VOLET DE RADIATEUR | 53180-42070 · 53180-42071 · 53180-42072 |
| 53188C | CONSOLE, SUPPORT VOLET RADIATEUR, MD | 53188-42020 |
| 53189B | CONSOLE, SUPPORT VOLET RADIATEUR, MG | 53189-42010 |
| 53202 | Radiator right side bracket sub-assembly | 53202-42900 · 53202-42901 |
| 53203 | Radiator left bracket sub-assembly | 53203-42900 · 53203-42901 |
| 53205 | Radiator upper bracket sub-assembly | 53205-42906 |
| 53213A | Radiator upper right bracket | 53213-42060 |
| 53214A | Radiator upper left bracket | 53214-42050 |
| 53223B | Radiator grille mounting bracket | 53223-42050 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-0R090 · 53701-42900 |
| 53702 | Left front fender fender sub-assembly | 53702-0R090 · 53702-42900 |
| 53703D | SOUS-ENS. TABLIER, AILE AVANT, NO.2 MD | 53703-42030 |
| 53704G | SOUS-ENS. TABLIER, AILE AVANT, NO.2 MG | 53704-42040 |
| 53707E | Fender right fender sub-assembly | 53707-42020 |
| 53708D | Fender left fender sub-assembly | 53708-42020 |
| 53731D | Right front fender to cowl side upper beam | 53731-42070 |
| 53732D | Left front fender to cowl side upper beam | 53732-42060 |
| 53733J | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD | 53733-42030 |
| 53734G | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG | 53734-42030 |
| 53747A | Fender fender right extension | 53747-42040 |
| 53748A | Fender fender left extension | 53748-42040 |
| 53785A | Right front fender corner plate | 53785-42010 |
| 53786B | Left front fender corner plate | 53786-42010 |
| 53813C | Right front fender extension | 53813-42040 |
| 53814C | Left front fender extension | 53814-42040 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-42050 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-42030 |
| 55101 | Front apron sub-assembly | 55101-0R150 · 55101-0R160 · 55101-42550 · 55101-42551 · 55101-42560 · 55101-42561 · 55101-42570 · 55101-42571 · 55101-42580 |
| 55210 | Front wall insulation pad assembly | 55210-0R090 · 55210-42240 · 55210-42250 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-0R070 · 55223-42100 · 55223-42110 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-10217 · 90467-13079 |
| 55241C | ISOLANT, LAT PANNEAU AVANT, NO.1 MD | 55241-0R040 · 55241-42010 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-10217 · 90467-13079 |
| 55242C | ISOLANT, LAT PANNEAU AVANT, NO.1 MG | 55242-0R040 · 55242-42010 |
| 57104D | Front cross member sub-assembly | 57104-42090 |
| 82090B | ENS. CABLE, EXTENSION | 82090-48040 |
| 85667F | COUV, MOTEUR | 85667-42010 |
| 88940D | ACTUAT ASS, GRILL ECHANG | 88940-12030 · 88940-12050 |
