Toyota RAV4 制动助力器和真空管 — Figure 4703

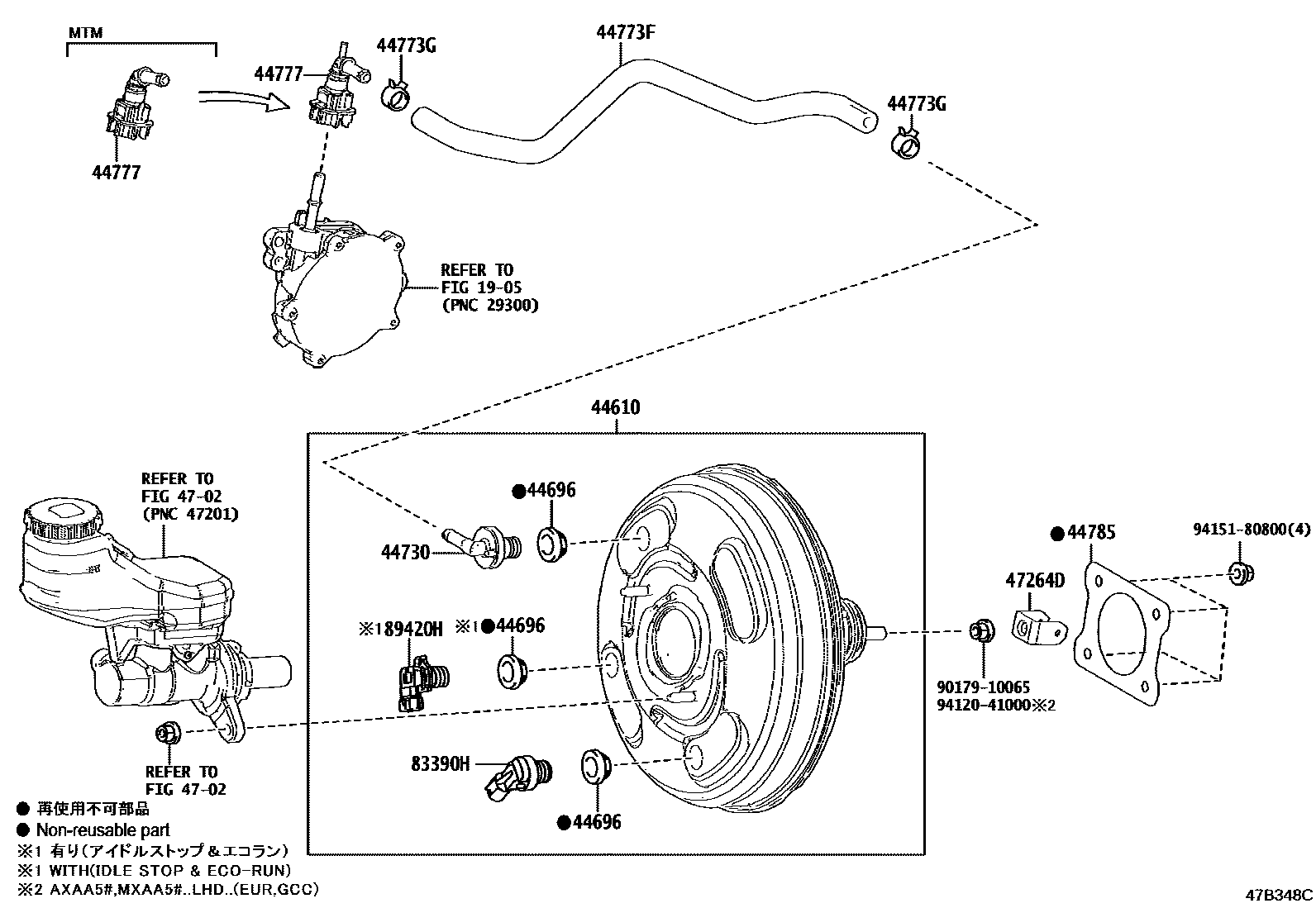

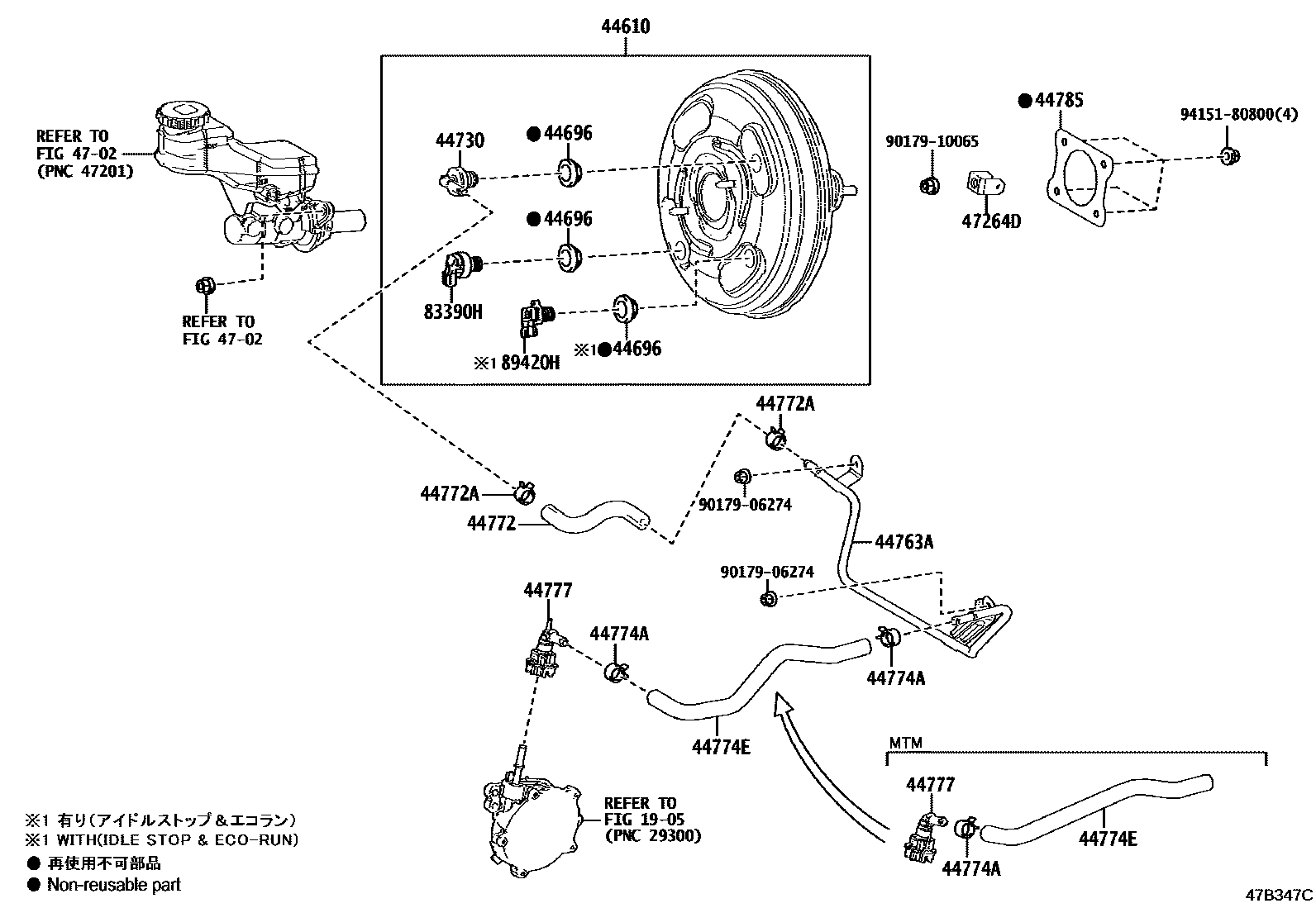

Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42460 · 44610-42470 · 44610-42471 · 44610-42490 · 44610-42491 · 44610-42500 · 44610-42520 · 44610-42530 · 44610-42531 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-42090 |
| 44772 | Hoses (check valve to connector tube) | 44772-42100 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44773-42200 · 44773-42220 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44774E | Hoses (joints to connector tubes) | 44774-42120 · 44774-42140 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-33010 · 44777-42020 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-42020 · 47264-52050 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 89420H | Vacuum sensor assembly | 89421-52020 · 89421-71040 |
