Toyota RAV4 前转向齿轮和连杆 — Figure 4505

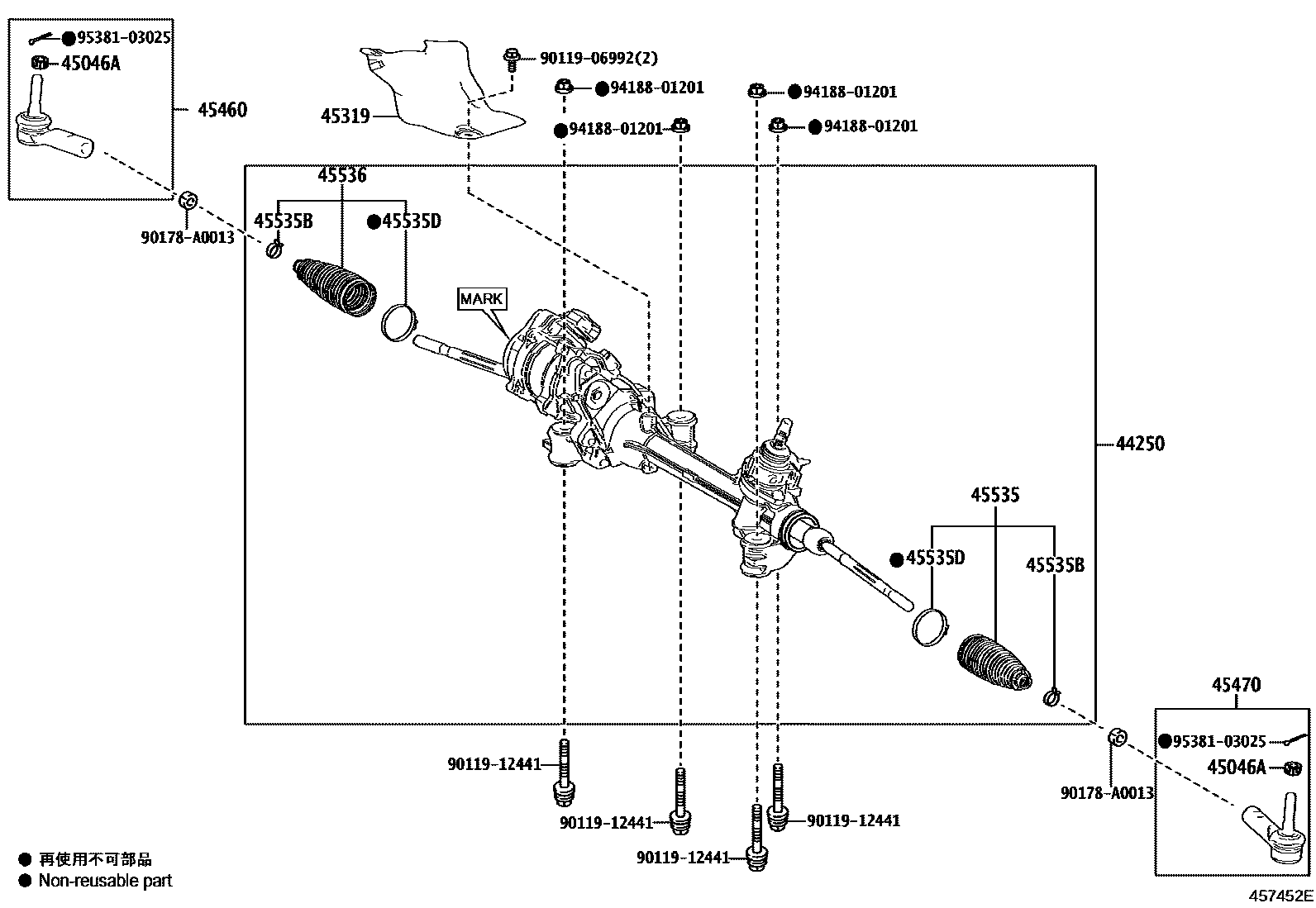

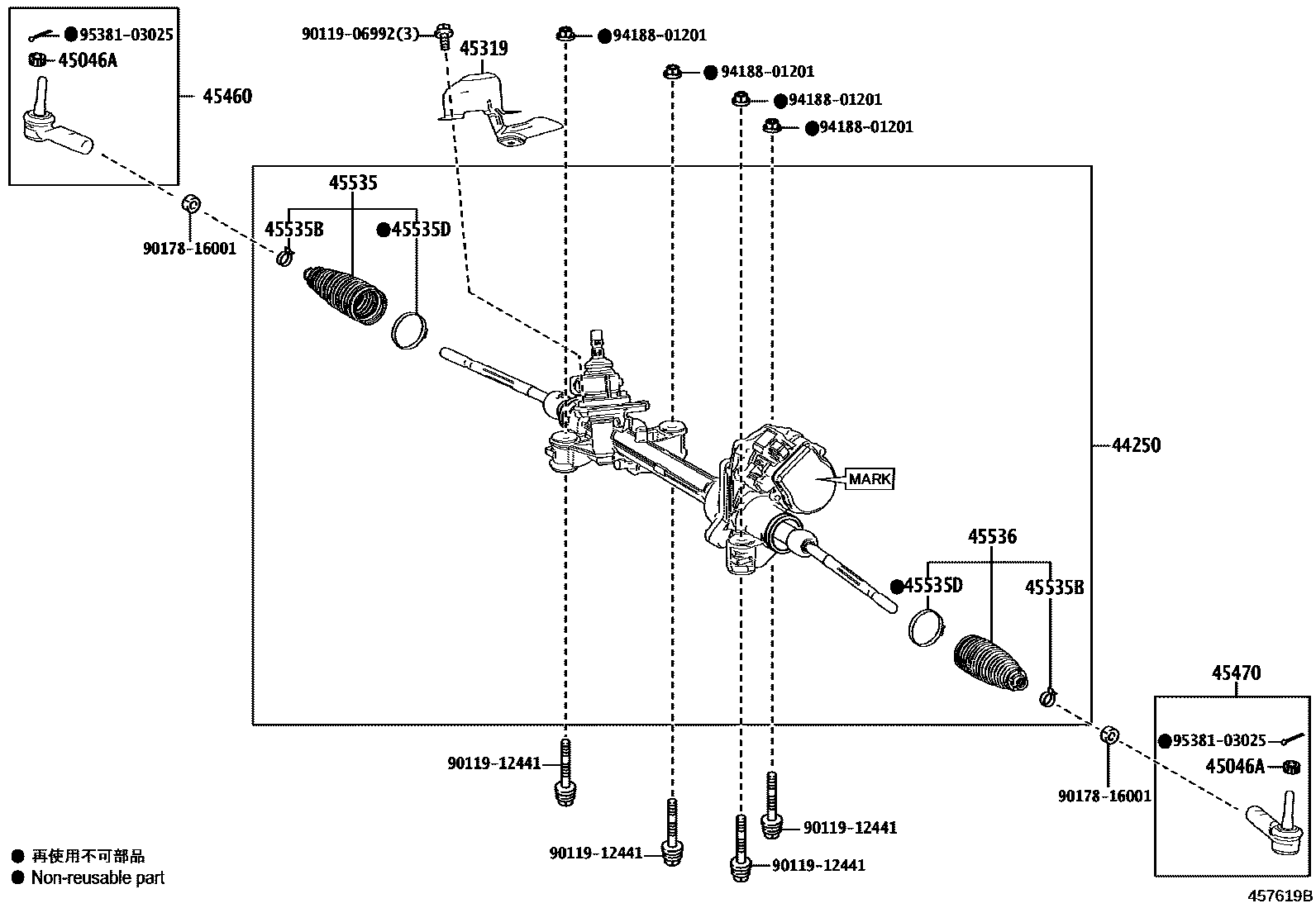

Toyota RAV4 EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-42150 · 44250-42160 · 44250-42170 · 44250-42180 · 44250-42190 · 44250-42191 · 44250-42200 · 44250-42201 · 44250-42210 · 44250-42220 · 44250-42230 · 44250-42231 · 44250-42240 · 44250-42241 · 44250-42250 · 44250-42251 · 44250-42420 · 44250-42430 · 44250-42440 · 44250-42450 · 44250-42520 · 44250-42530 · 44250-42540 · 44250-42550 · 44250-42730 · 44250-42740 · 44250-42780 · 44250-42790 · 44250-42800 · 44250-42810 · 44250-42820 · 44250-42830 · 44250-42840 · 44250-42850 · 44250-42860 · 44250-42870 · 44250-42880 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12015 · 90171-12016 |
| 45319 | Steering gear heat insulation pad | 45319-42020 · 45319-42030 |
| 45460 | Right tie rod assembly | 45460-49095 · 45460-49105 |
| 45470 | Left tie rod assembly | 45460-49095 · 45460-49105 |
| 45535 | No. 1 steering rack dust cover | 45535-29025 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-06030 |
| 45536 | No. 2 steering rack dust cover | 45535-29025 |
