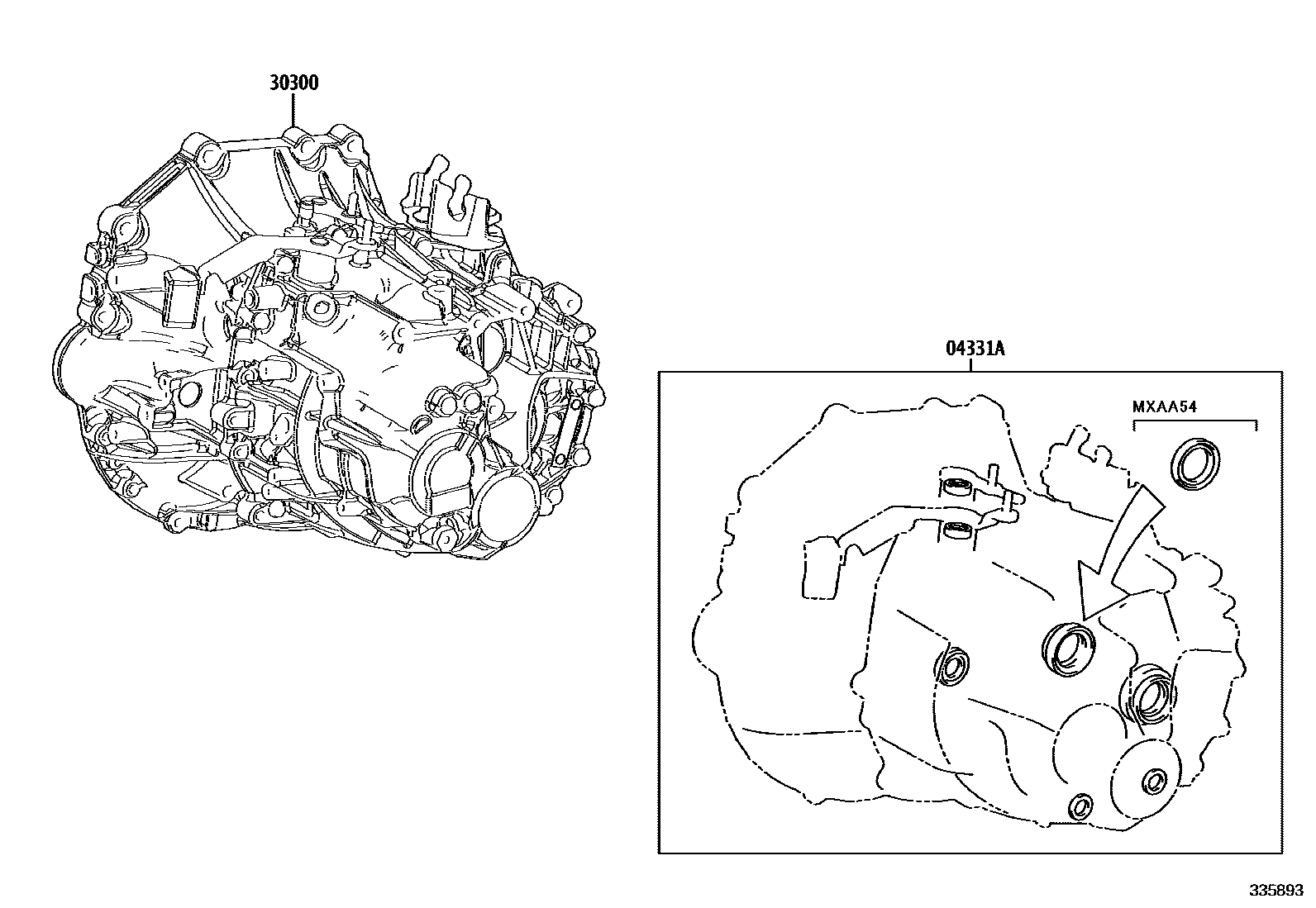

Toyota RAV4 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota RAV4 EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12840 · 04331-42170 |
| 30300 | Manual transmission axle assembly | 30300-42380 · 30300-42390 |
