Toyota RAV4 Alternator — Figure 1903

Toyota RAV4 EPC diagram 1903, Alternator, with 4 images and 14 PNC and OE references.

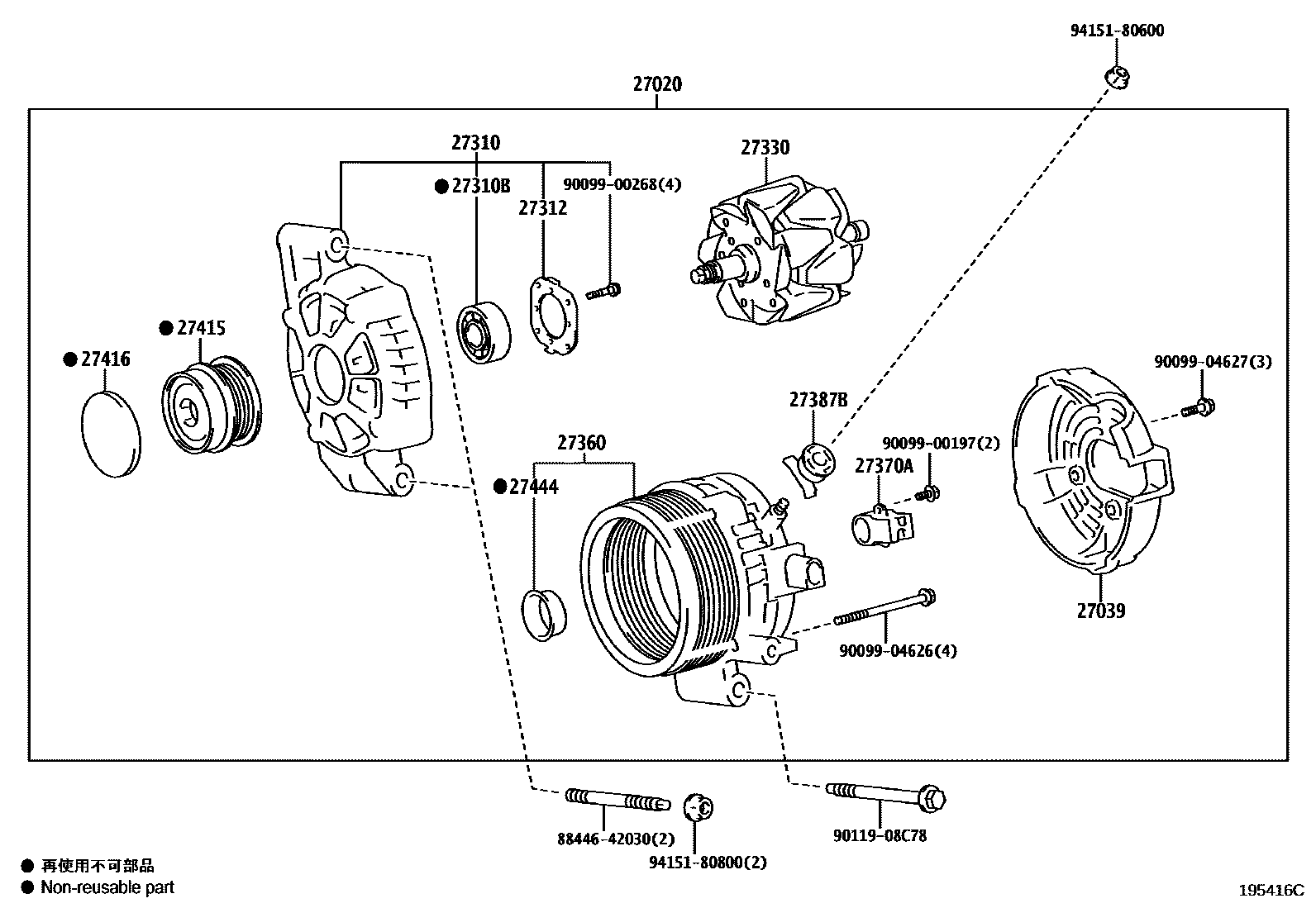

Toyota RAV4 Alternator EPC diagram — 195416C
Alternator — 195416C (201811 – 999999)

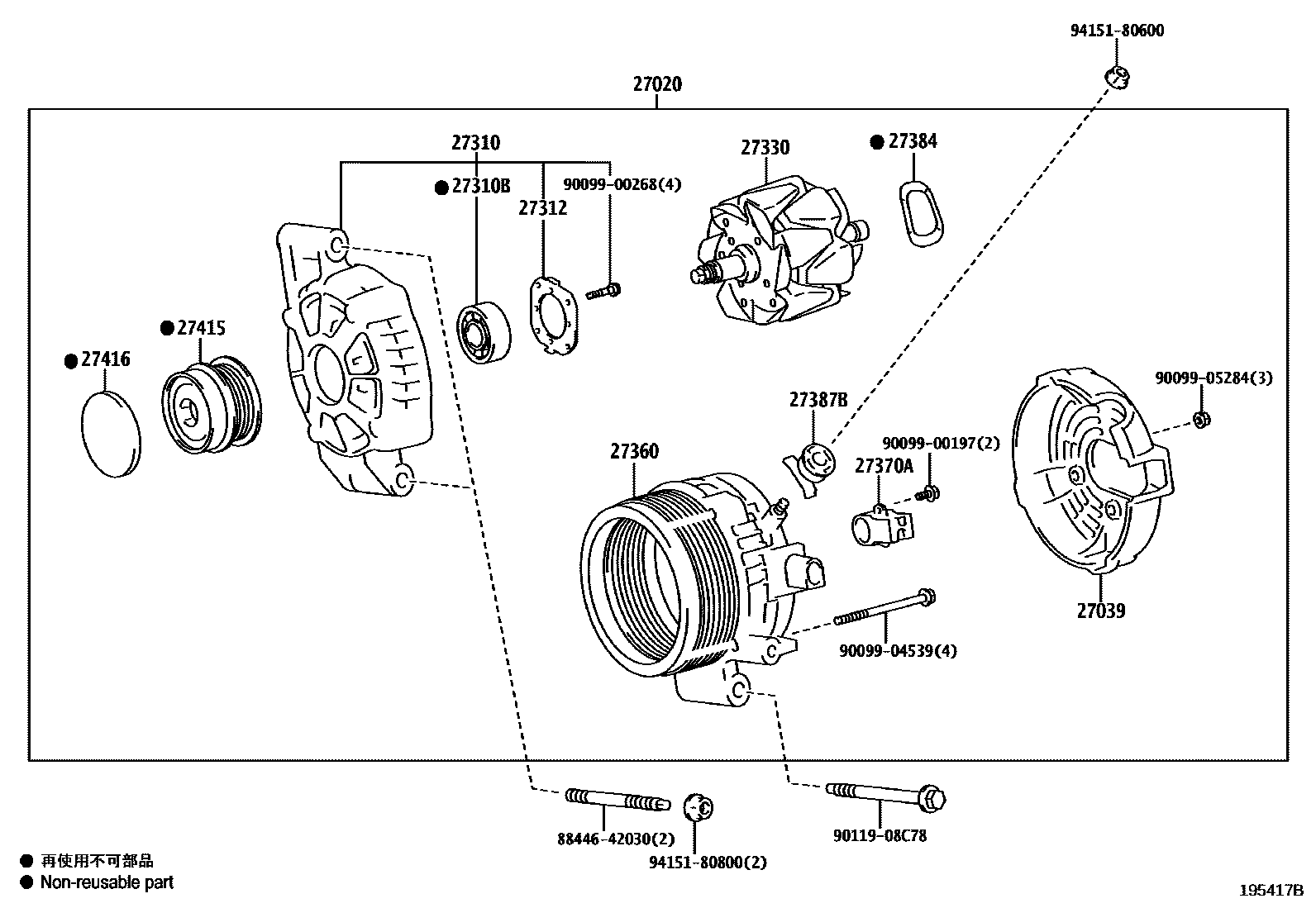

Toyota RAV4 Alternator EPC diagram — 195417B
Alternator — 195417B (201811 – 999999)

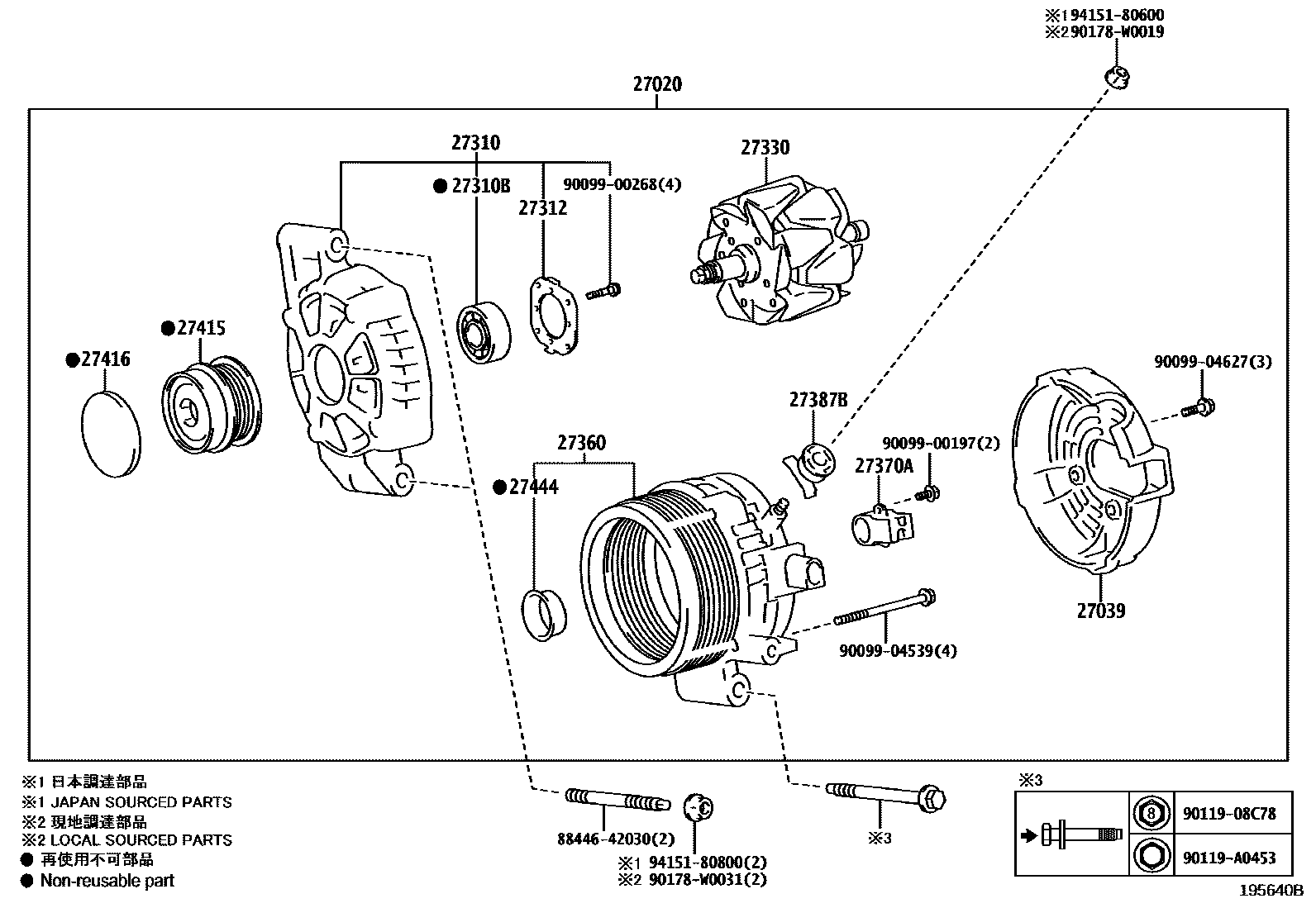

Toyota RAV4 Alternator EPC diagram — 195640B
Alternator — 195640B (201910 – 999999)

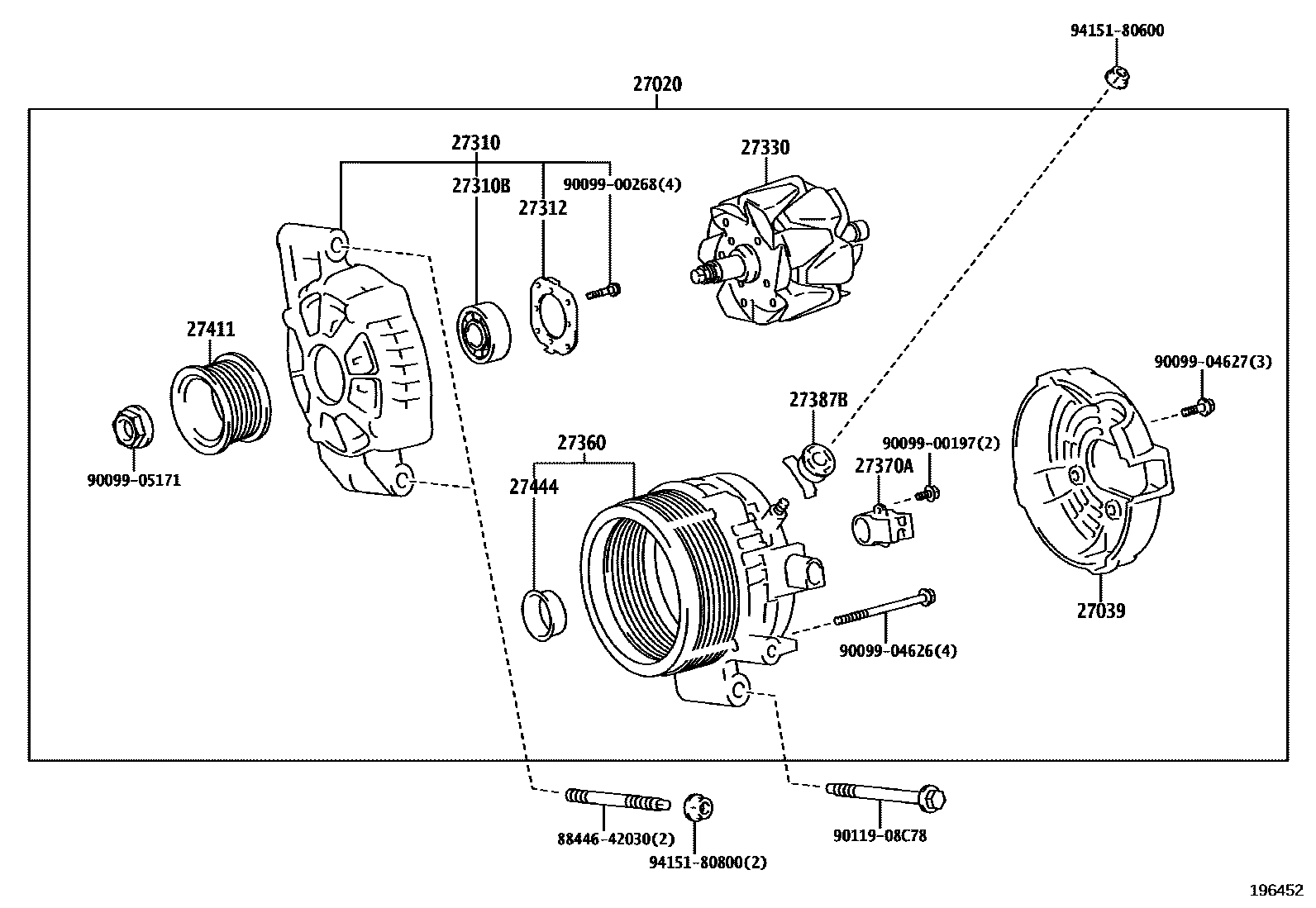

Toyota RAV4 Alternator EPC diagram — 196452
Alternator — 196452 (202305 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-24030 · 27060-24040 · 27060-24050 · 27060-24070 · 27060-24080 · 27060-25010 · 27060-25020 · 27060-25030 · 27060-F0060 · 27060-F2060 · 27060-F2070
27039Alternator Rear End Cover27039-0Y150 · 27039-31390 · 27039-37220
27310Alternator Drive End Frame Assembly27310-24130 · 27310-24150 · 27310-25030 · 27310-F0040 · 27310-F2050
27310BBearing (for Alternator Drive End Frame)90068-10033 · 90099-10223
27312Retainer Plate27312-0T300 · 27312-72100
27330Alternator Rotor Assembly27330-0A110 · 27330-0T350 · 27330-0V330 · 27330-37220 · 27330-47330 · 27330-58460
27360Alternator Stator Coil Assembly27360-24130 · 27360-24150 · 27360-25030 · 27360-F0040 · 27360-F2050 · 27360-F2060
27370AAlternator Brush Holder Assembly27370-0P020 · 27370-0Y150 · 27370-31220
27384Washer27384-0A020 · 27384-50030
27387BGenerator terminal insulation pad27387-0V060 · 27387-0Y150 · 27387-20130
27411Alternator Pulley27411-50190
27415PULLEY, ALTERNATOR W/CLUTCH27415-0W190 · 27415-24010 · 27415-F0010
27416Generator pulley cover27416-0W050 · 27416-47010
27444Generator bearing cap seals27444-0T300 · 27444-21190
