Toyota RAV4 vacuum tube — Figure 1708

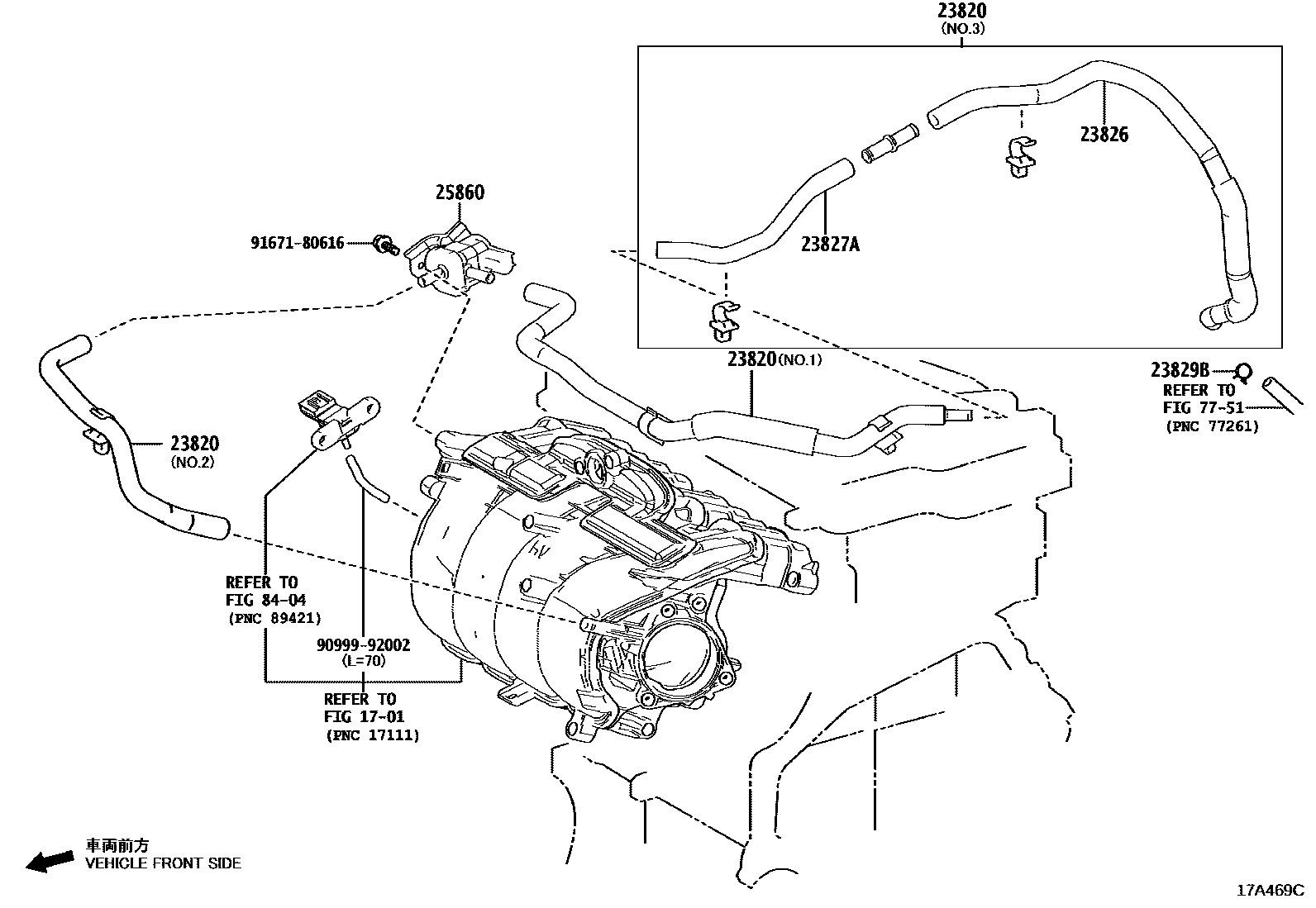

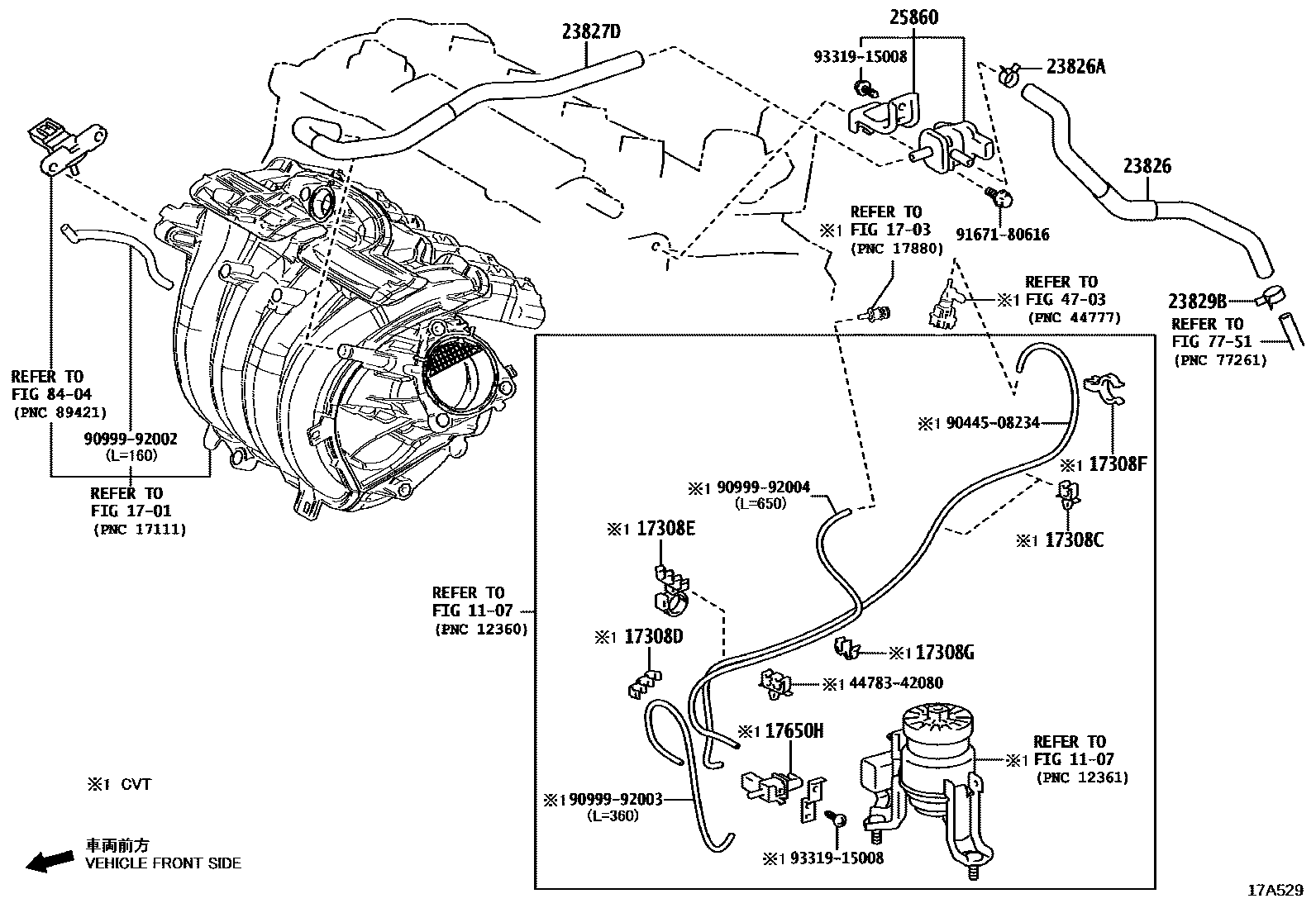

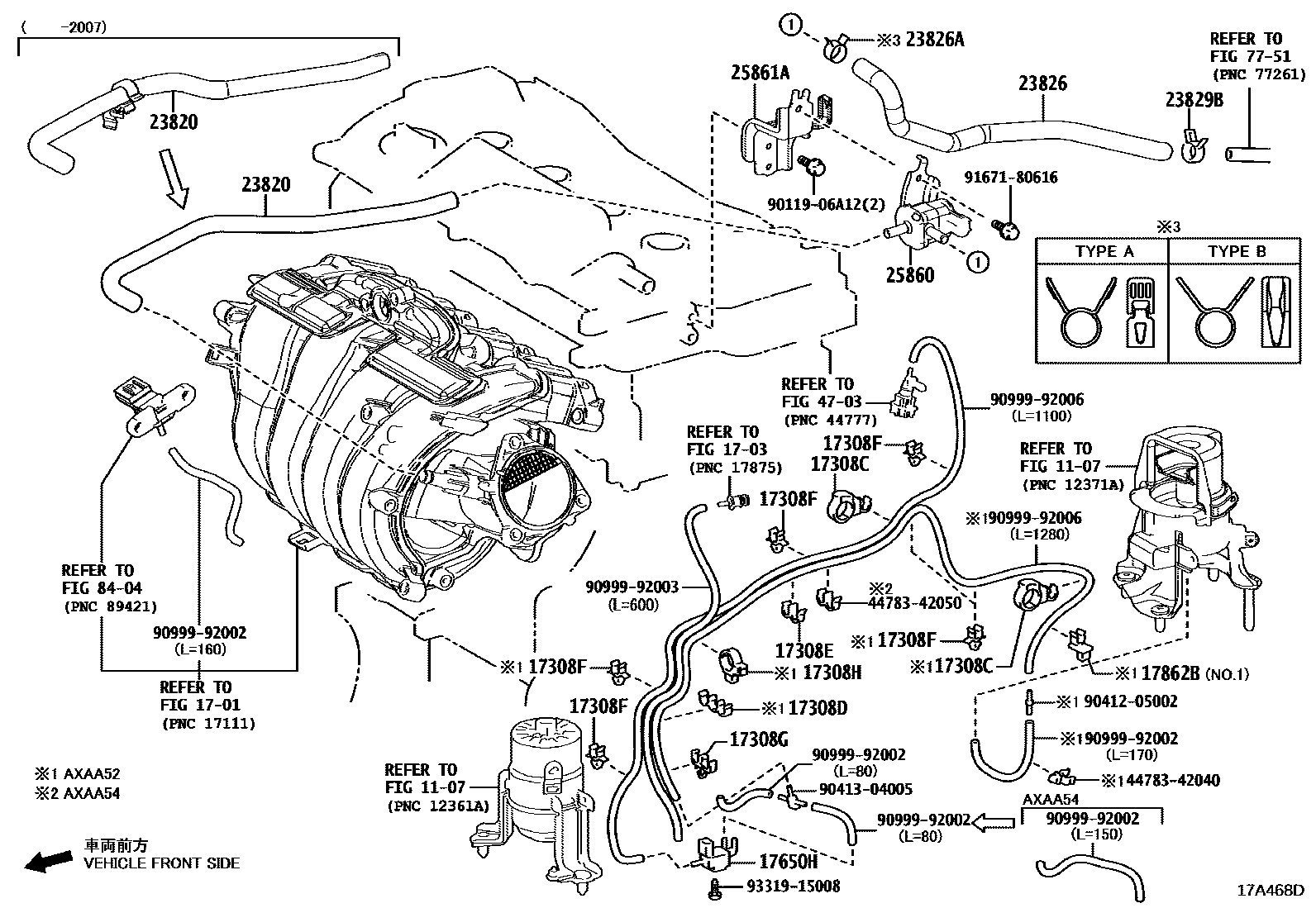

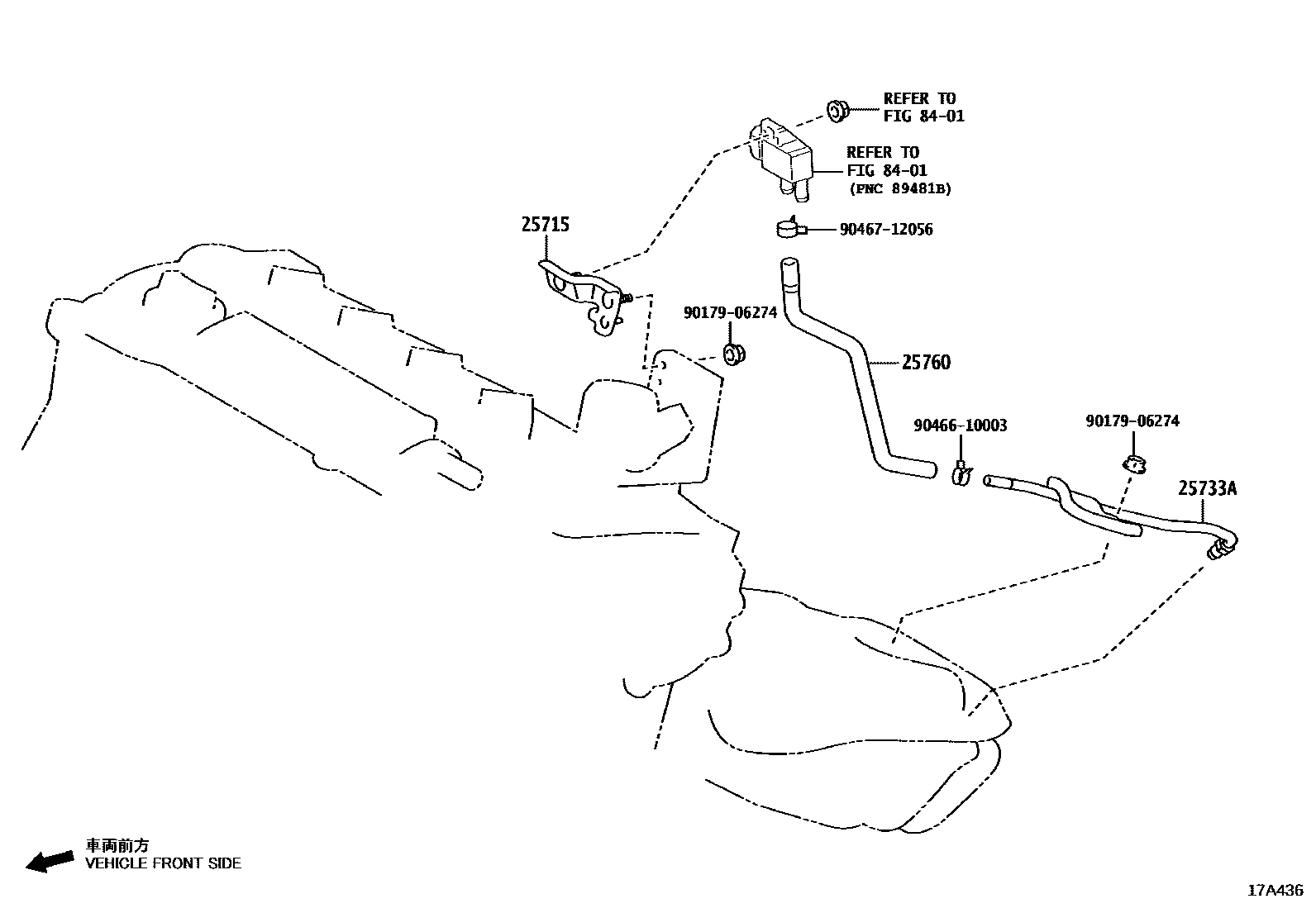

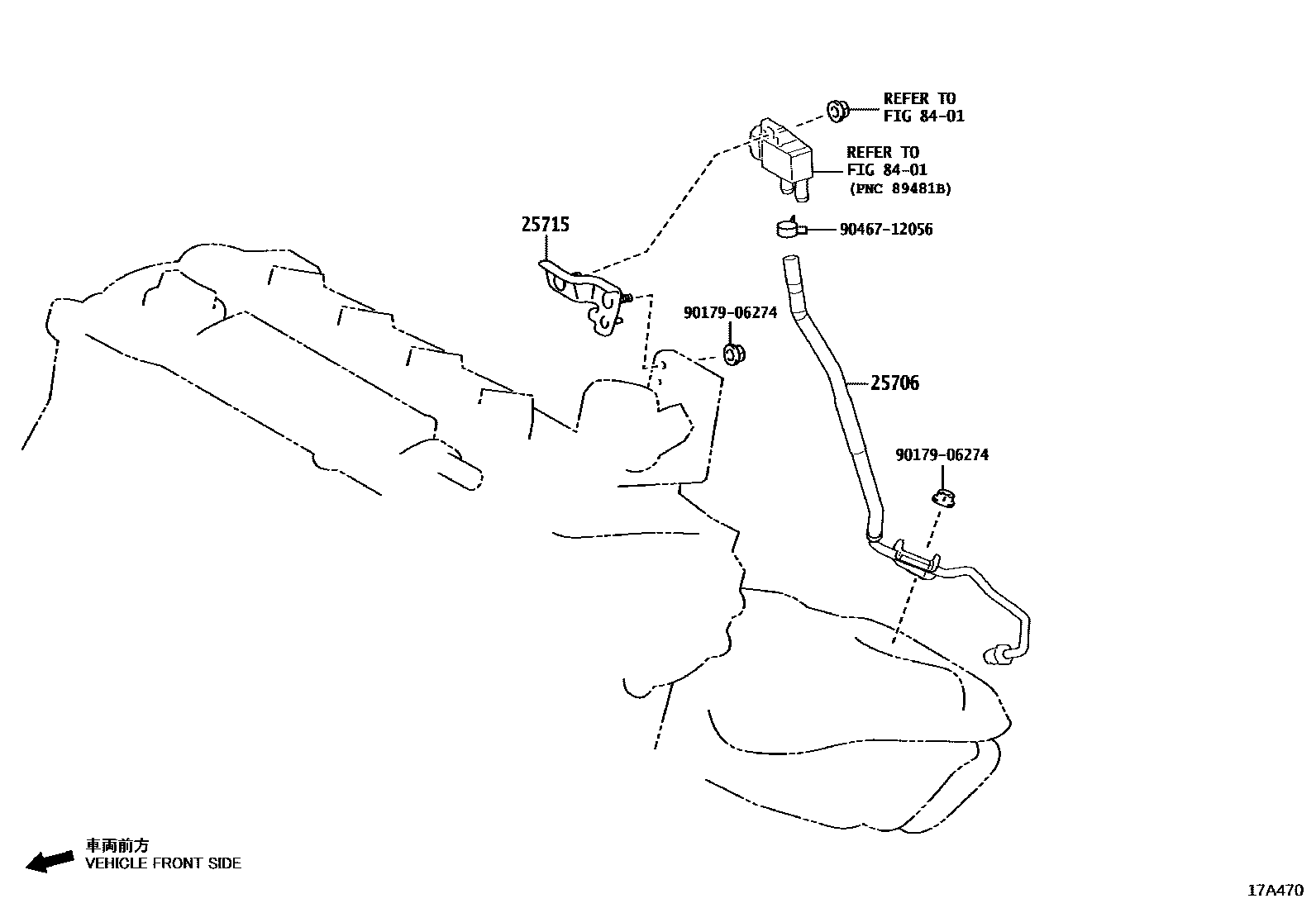

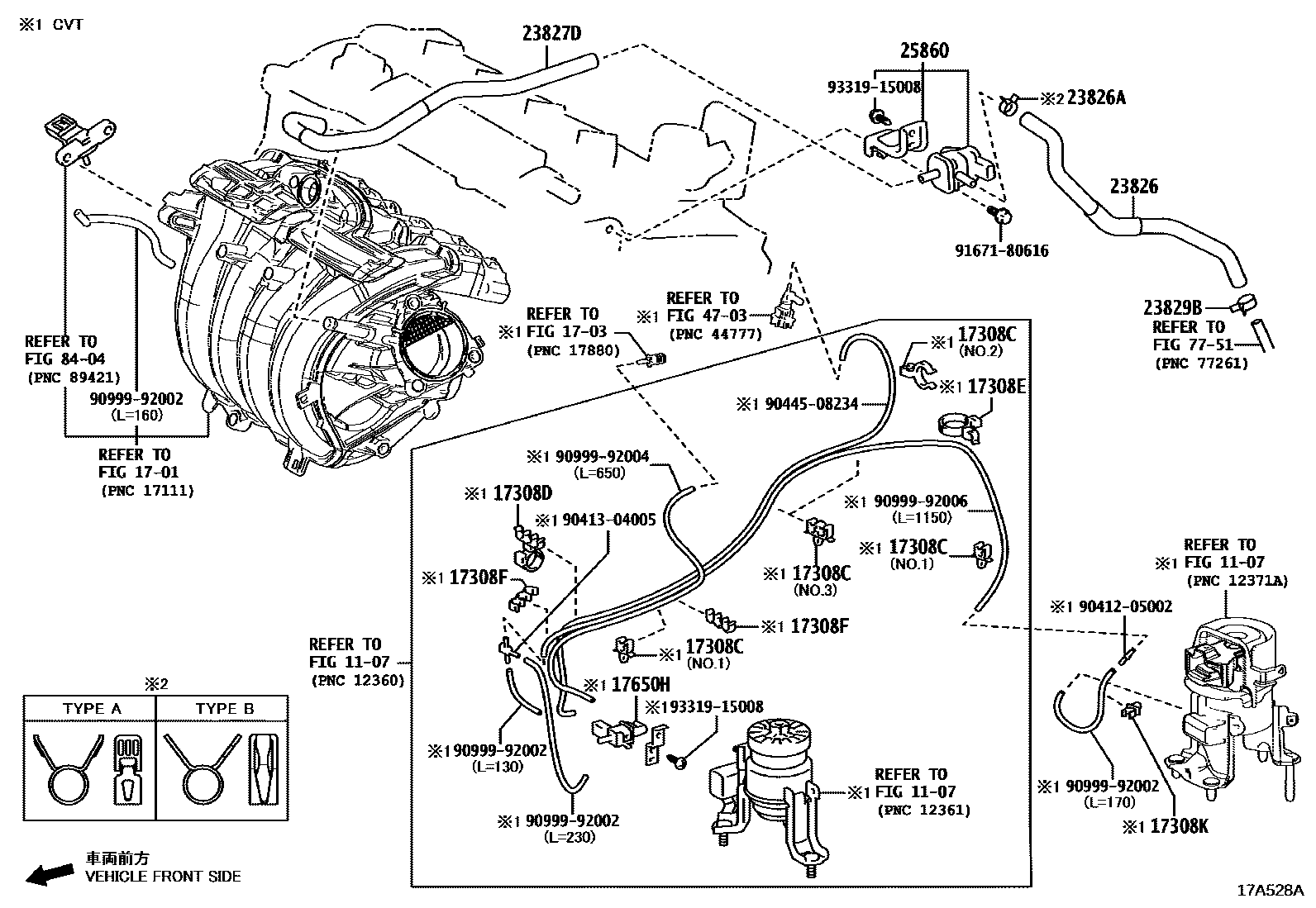

Toyota RAV4 EPC diagram 1708, vacuum tube, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308C | Clamp (for vacuum hose) | 44783-33060 · 44783-42040 · 44783-42070 · 44783-42080 |
| 17308D | Clamp No. 2 (for vacuum hose) | 44783-42100 · 90464-00074 |
| 17308E | Clamp No. 3 (for vacuum hose) | 44783-42080 · 44783-42090 · 44783-42100 |
| 17308F | No. 4 clamp (for vacuum hose) | 44783-42040 · 44783-42070 · 90464-00074 |
| 17308G | No. 5 clamp (for vacuum hose) | 90464-00082 · 90469-07012 |
| 17308H | Clamp No. 6 (for vacuum hose) | 90959-01434 |
| 17308K | COLLIER, NO.7(POUR FLEX DEPRESSION) | 44783-42040 |
| 17650H | Vacuum switch valve | 90910-12059 |
| 17862B | hose clamp | 44783-42060 |
| 23820 | Fuel vapor supply hose assembly | 23820-25051 · 23820-25070 · 23820-25071 · 23820-25100 · 23820-25110 · 23820-25120 · 23820-25130 · 23820-25150 · 23820-25160 · 23820-25180 · 23820-25190 · 23820-25380 · 23820-25390 · 23820-25400 · 23820-25410 · 23820-25420 |
| 23826 | No. 1 fuel vapor supply hose | 23826-24040 · 23826-25130 · 23826-25150 · 23826-25200 · 23826-25210 · 23826-25220 · 23826-25400 · 23826-25410 · 23826-25420 · 23826-25430 · 23826-25460 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-13005 |
| 23827A | No. 2 fuel vapor supply hose | 23827-25100 · 23827-25110 |
| 23827D | No. 2 fuel vapor supply hose | 23826-24020 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-15004 · 96133-41501 · 96136-41801 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-25010 |
| 25715 | Emission control valve bracket | 25715-25010 |
| 25733A | No. 1 vacuum tube | 25733-24040 |
| 25760 | Vacuum transfer hose assembly | 25760-24020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24020 · 25860-25020 · 25860-25040 · 25860-25070 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-25011 |
