Toyota RAV4 Exhaust Pipe — Figure 1702

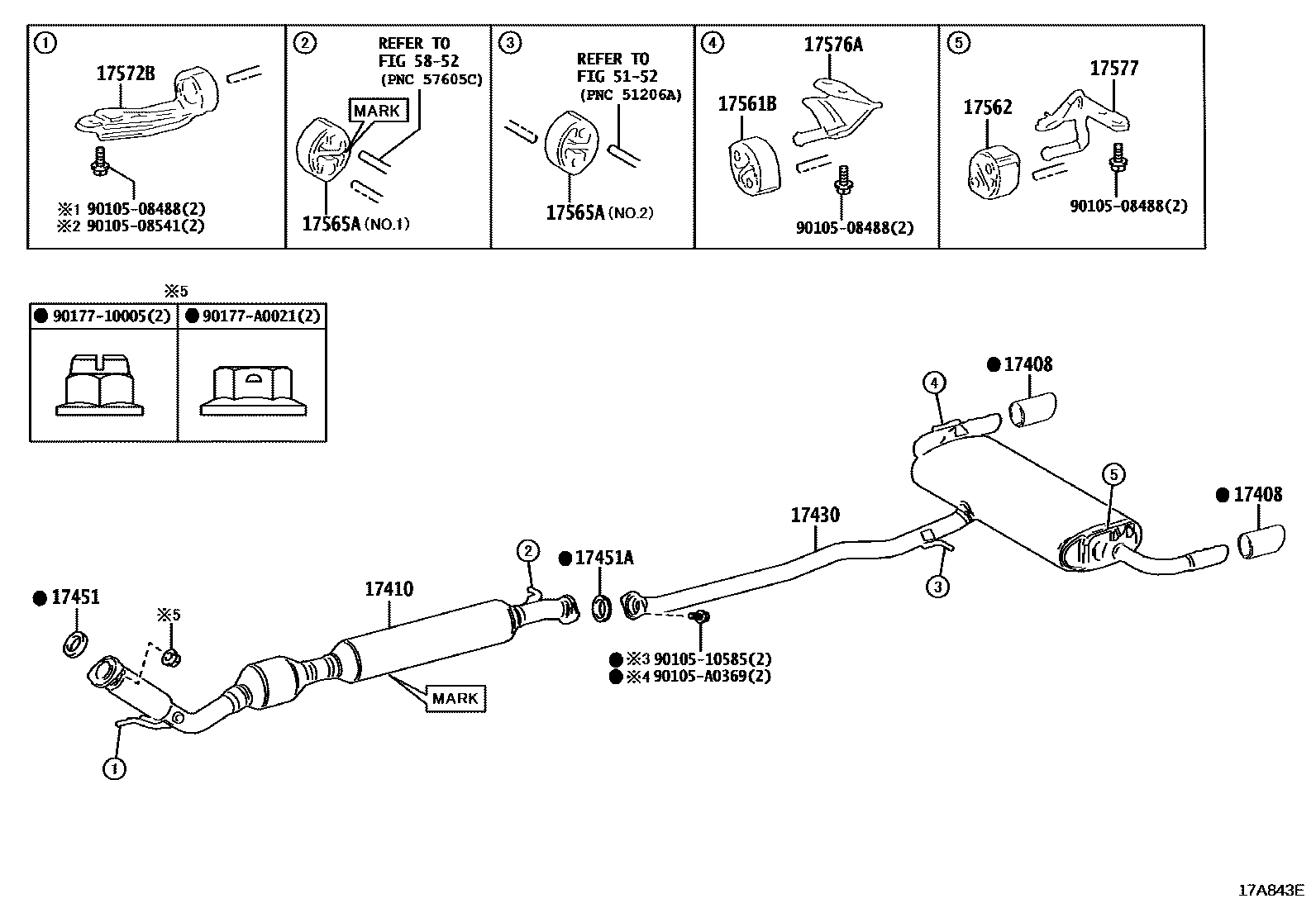

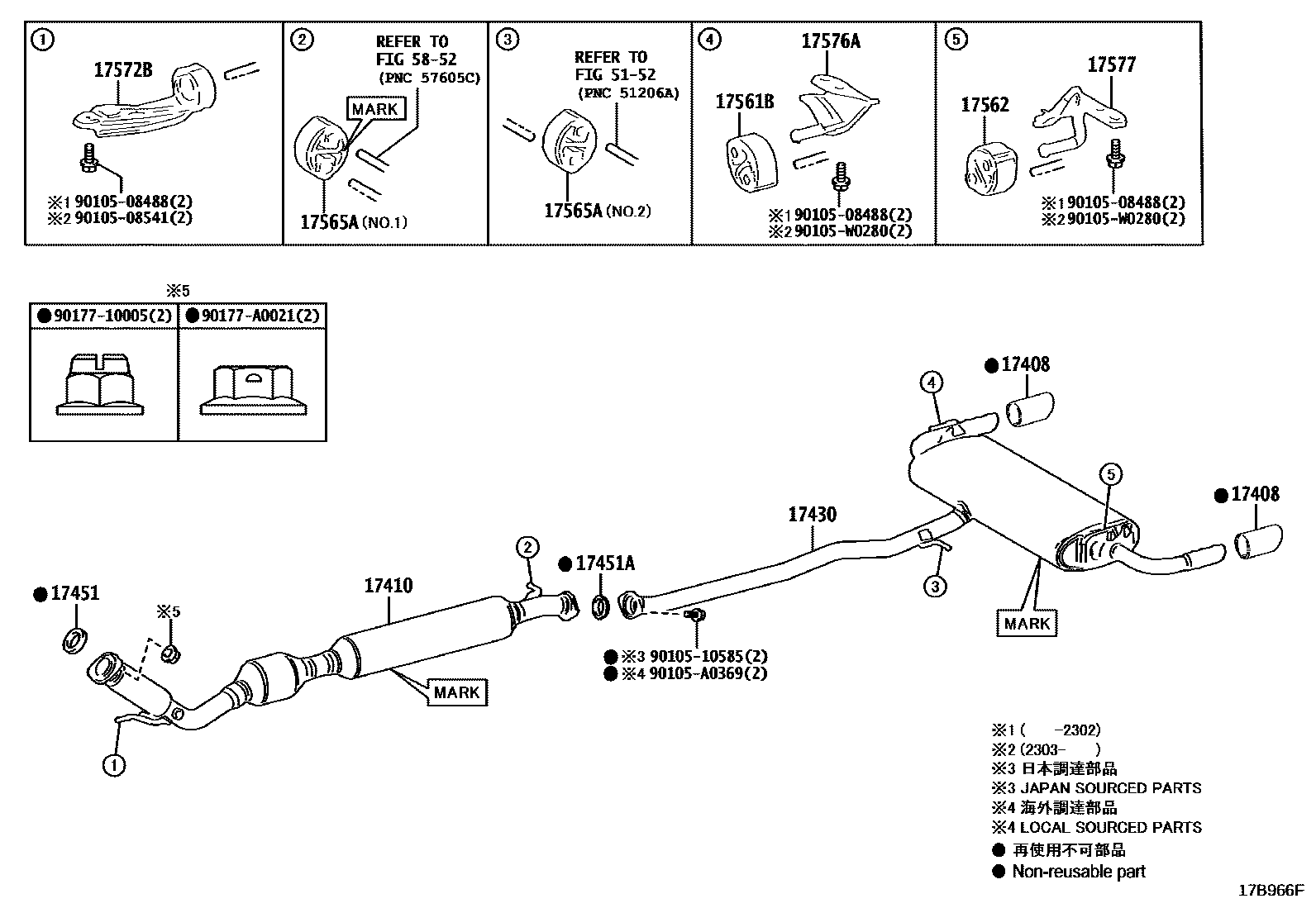

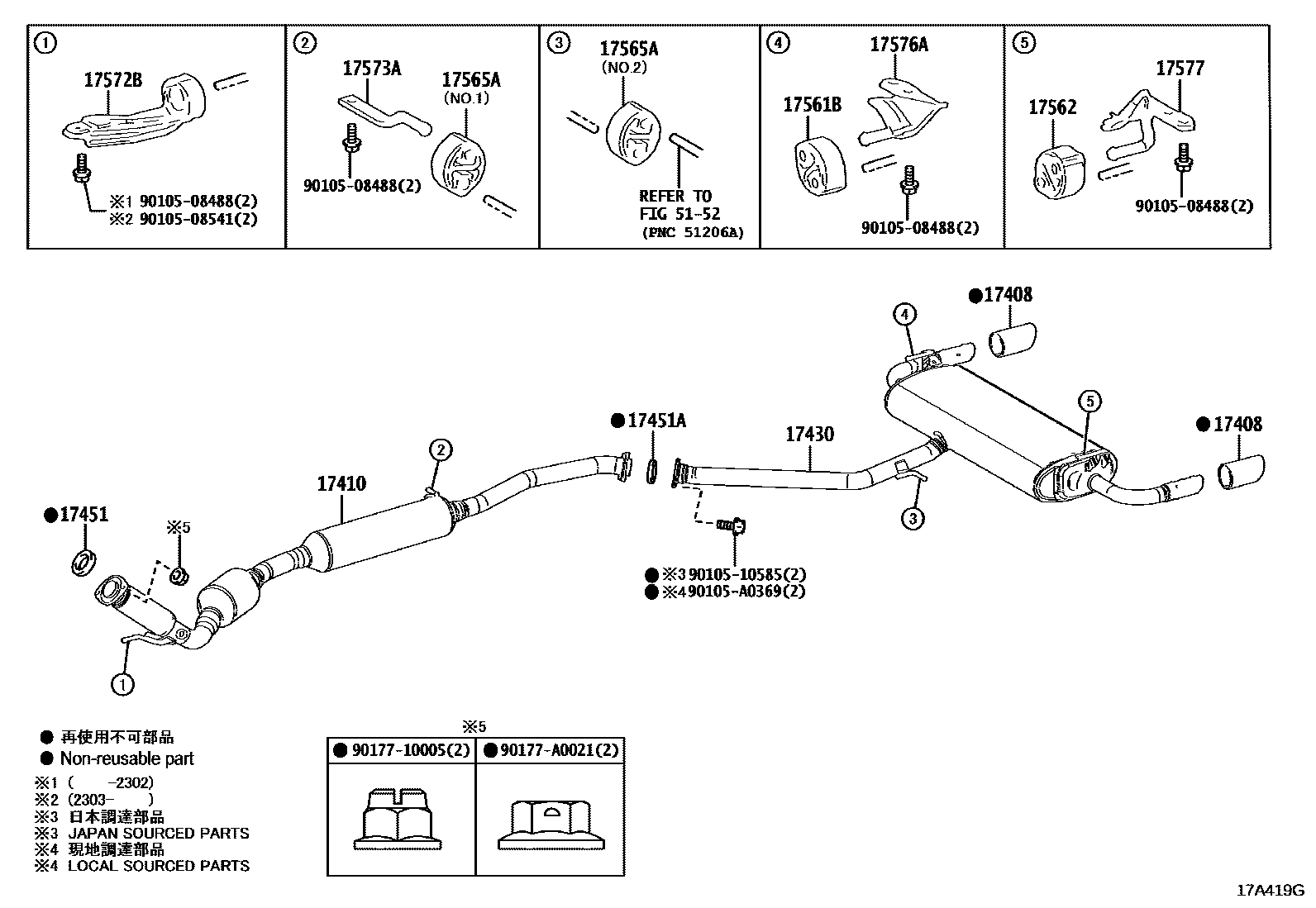

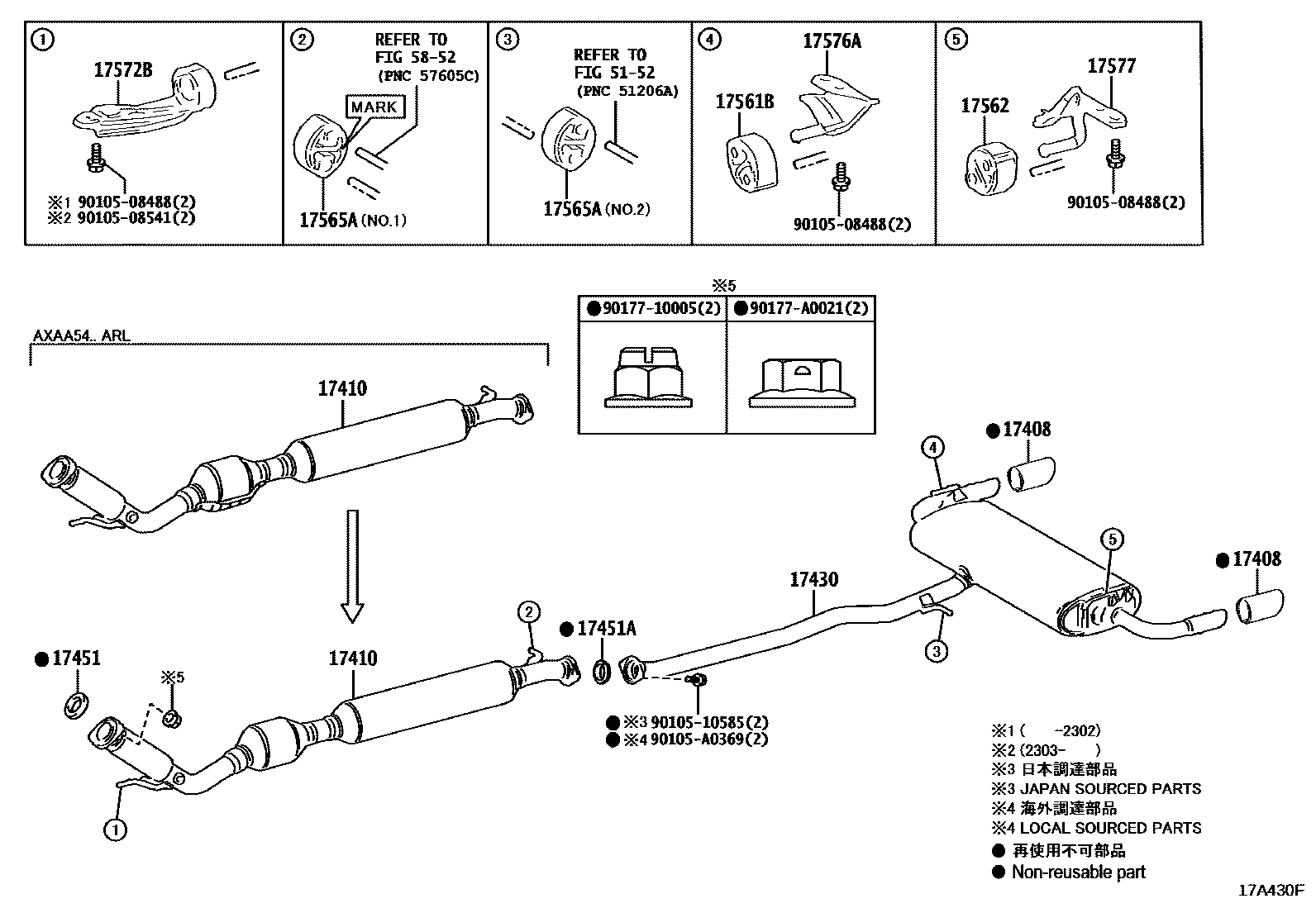

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-25030 · 17408-25031 · 17408-25032 · 17408-25040 · 17408-25041 · 17408-25042 |
| 17410 | Front exhaust pipe assembly | 17410-24270 · 17410-24280 · 17410-24300 · 17410-24400 · 17410-24630 · 17410-25210 · 17410-25230 · 17410-25240 · 17410-25260 · 17410-25280 · 17410-25290 · 17410-25420 · 17410-25670 · 17410-25680 · 17410-25810 · 17410-F0300 · 17410-F0310 |
| 17430 | Exhaust tailpipe assembly | 17430-25220 · 17430-25221 · 17430-25240 · 17430-25241 · 17430-F0310 · 17430-F0311 · 17430-F0470 |
| 17451 | Exhaust pipe gasket | 90917-06094 · 90917-A6002 |
| 17451A | No. 2 exhaust pipe gasket | 17451-25040 · 17451-F0100 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-28010 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-28010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0J031 · 17565-22040 · 17565-28010 |
| 17572B | No. 2 exhaust pipe bracket | 17572-25040 |
| 17573A | No. 3 exhaust pipe bracket | 17573-25030 |
| 17576A | No. 6 exhaust pipe bracket | 17576-25020 |
| 17577 | No. 7 exhaust pipe bracket | 17577-25010 |
