Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 104 PNC and OE references.

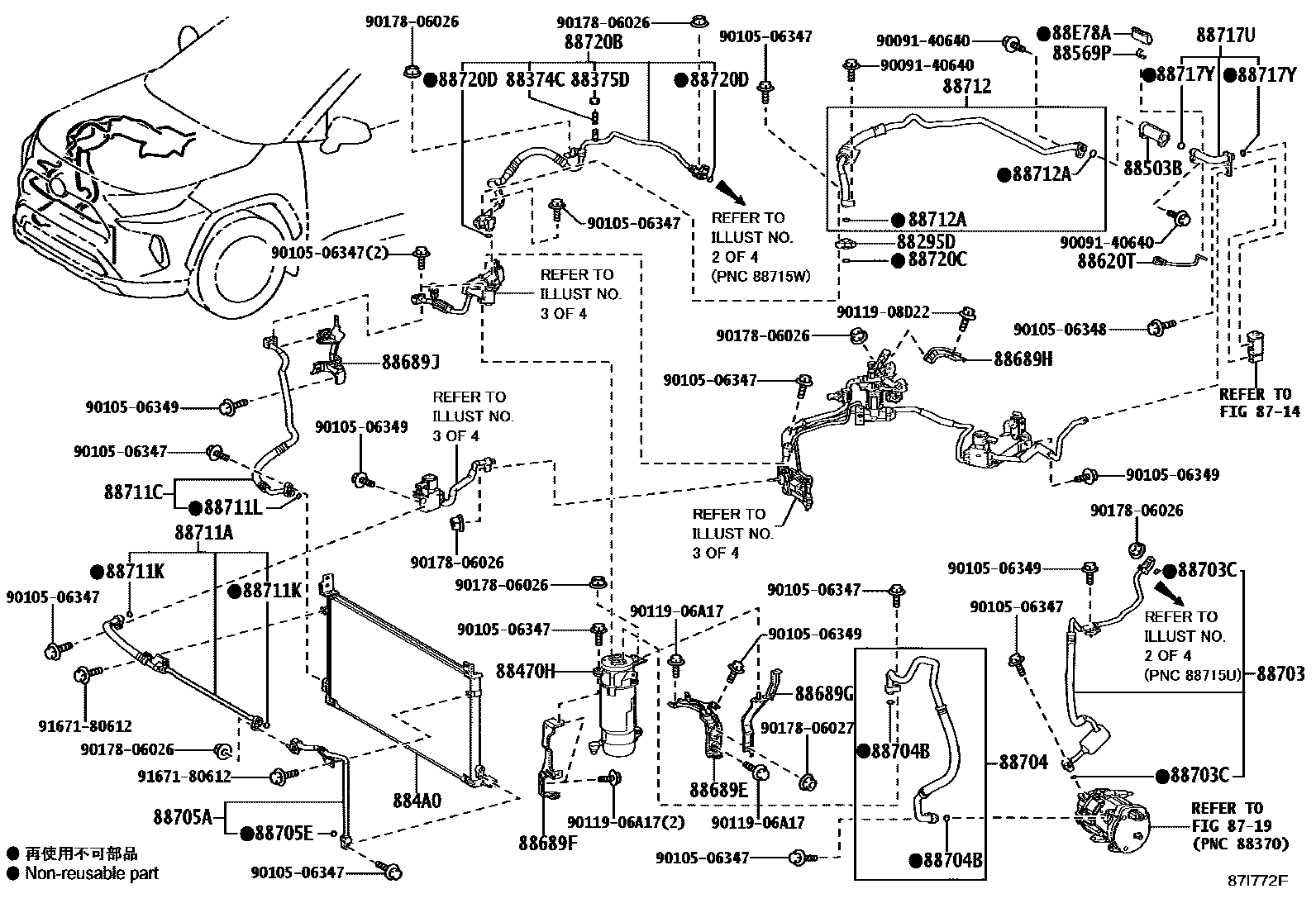

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 87I772F
Heating & Air Conditioning - Cooler Piping — 87I772F (202006 – 999999)

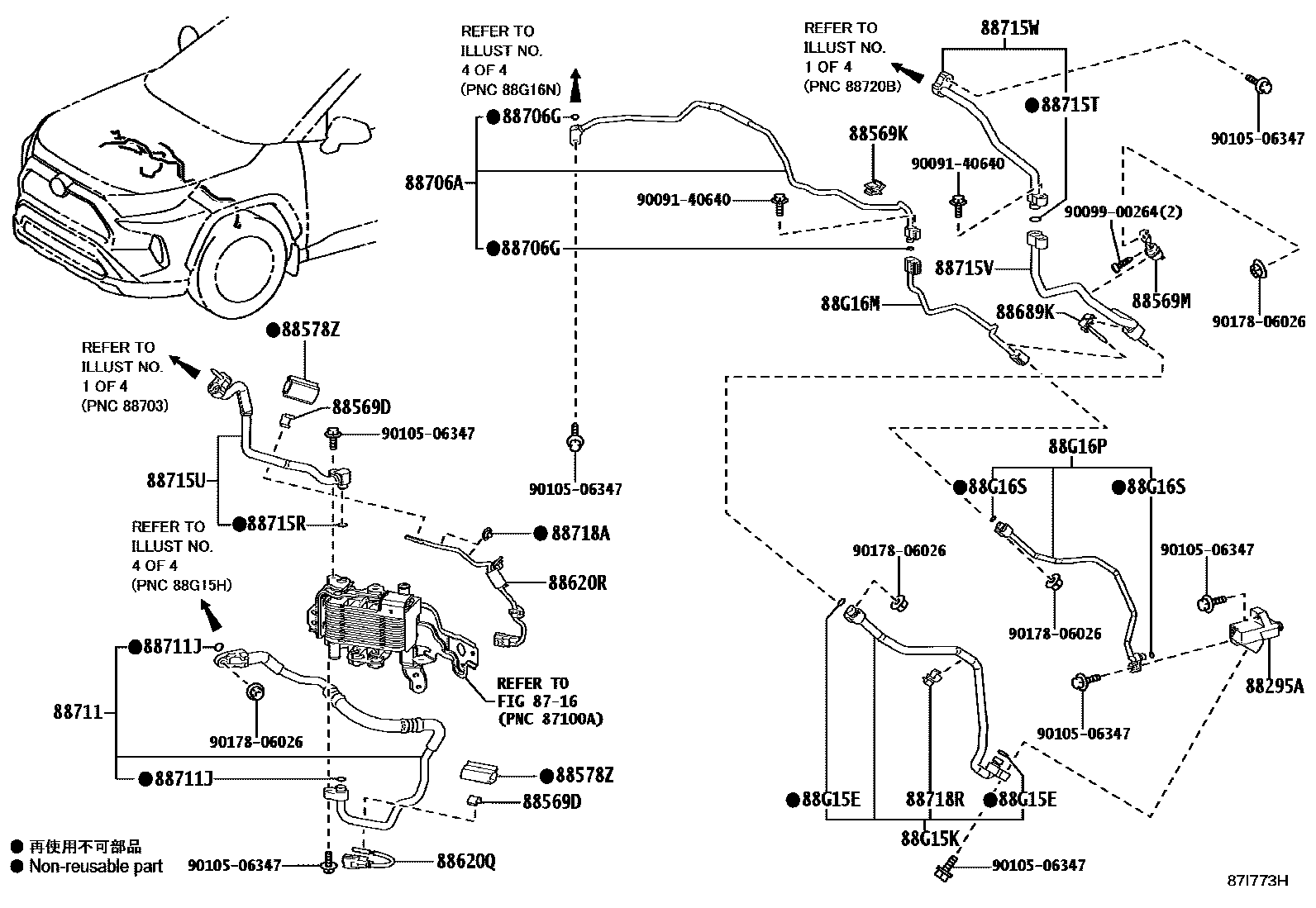

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 87I773H
Heating & Air Conditioning - Cooler Piping — 87I773H (202006 – 999999)

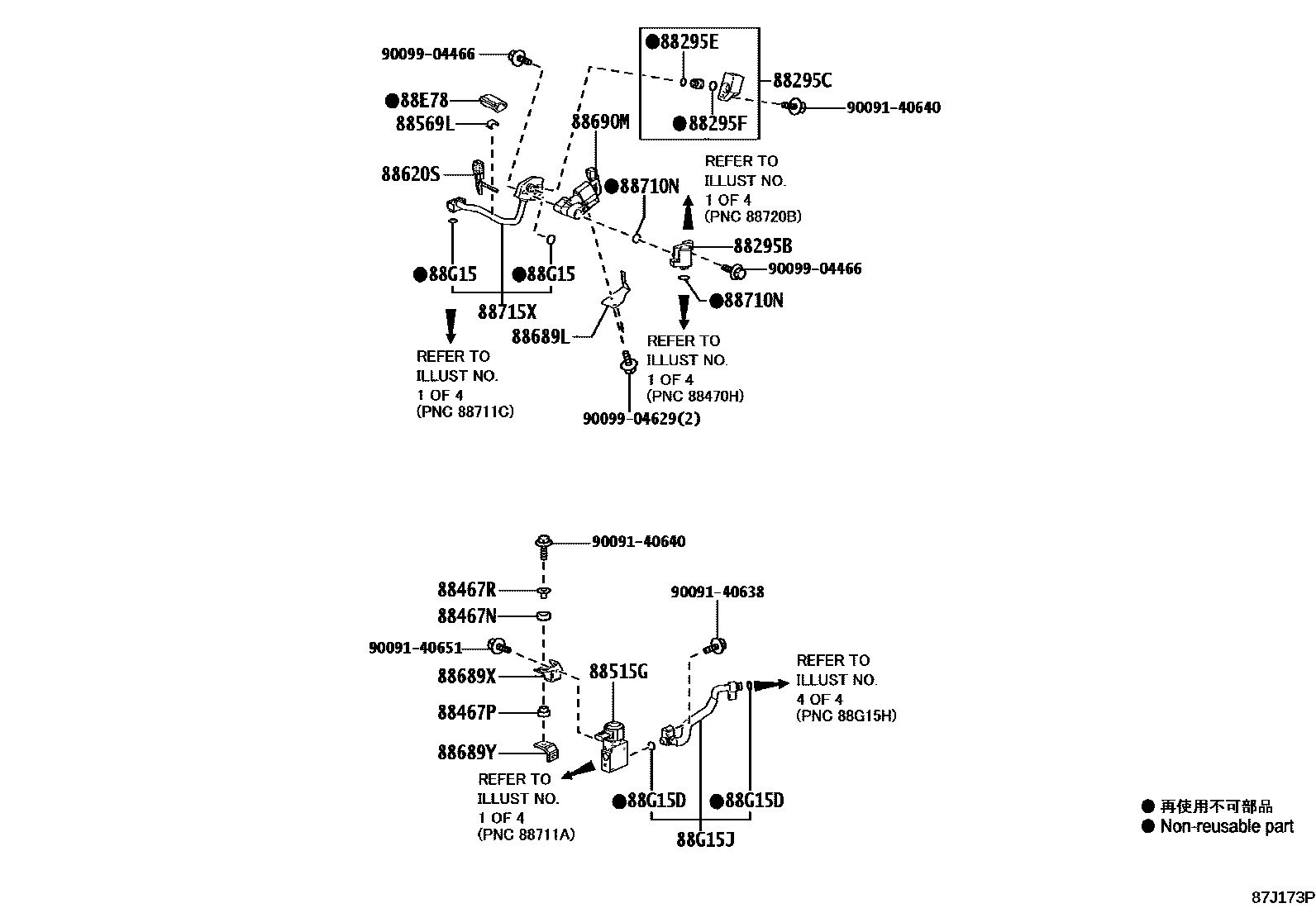

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 87J173P
Heating & Air Conditioning - Cooler Piping — 87J173P (202006 – 999999)

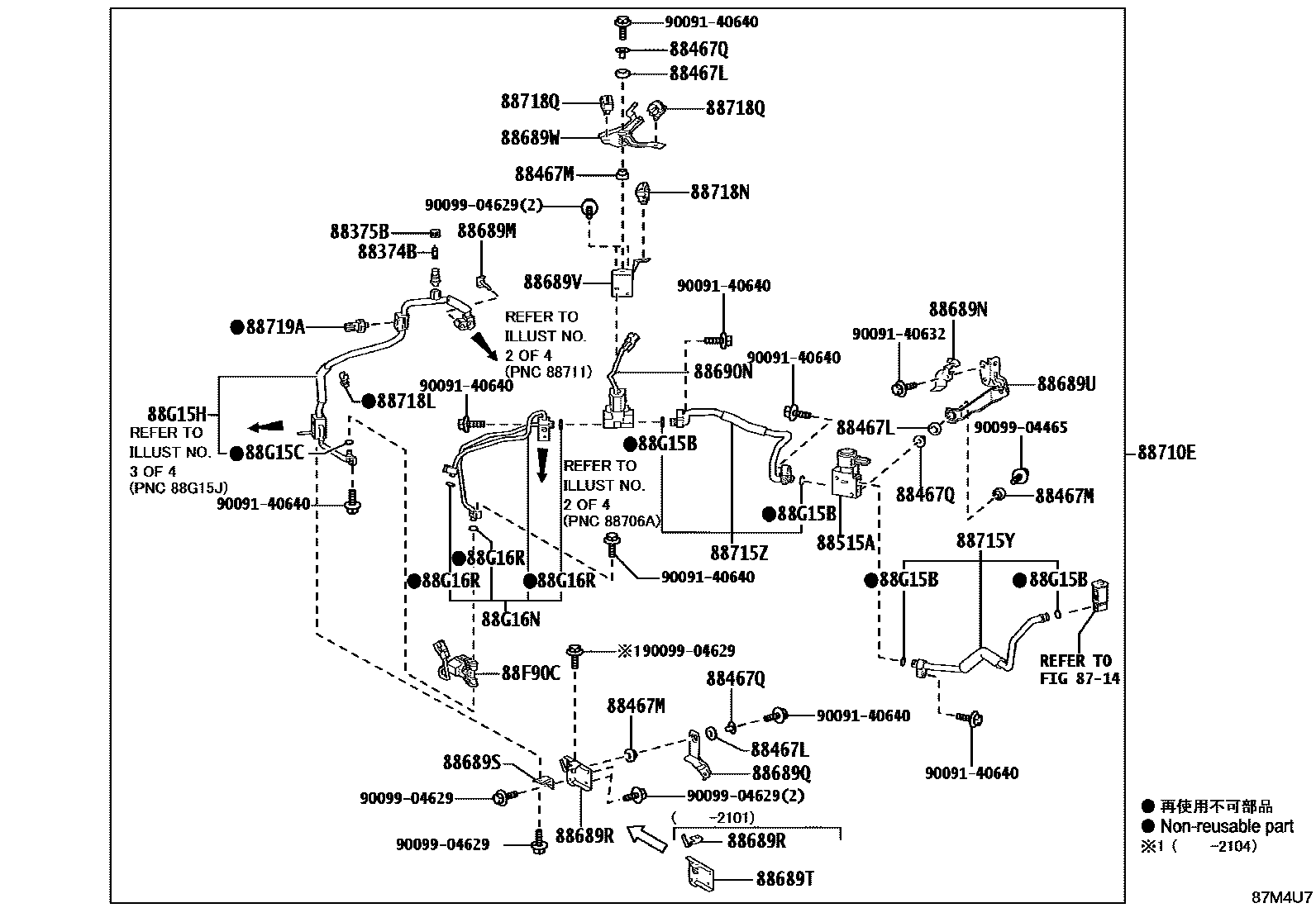

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 87M4U7
Heating & Air Conditioning - Cooler Piping — 87M4U7 (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
88295AToyota part88295-42010
88295BToyota part88295-42020
88295CToyota part88295-42030
88295DToyota part88295-42040
88295EToyota part90099-14157
88295FToyota part90099-14169
88374BService valve No. 188374-30010
88374CService valve No. 288374-74010
88375BNo. 1 maintenance valve cover88375-30320
88375DNo. 2 maintenance valve cover88375-30310
88467LToyota part88467-47020
88467MToyota part88467-47030
88467NToyota part88467-47020
88467PToyota part88467-47030
88467QToyota part88467-14050
88467RToyota part88467-14050
88470HToyota part88470-42100
884A0Toyota part884A0-42050
88503BPressure regulator sub-assembly88503-42010 · 88503-42020
88515ACooler expansion valve88515-42130
88515GToyota part88515-42120
88569DToyota part88569-74090
88569KToyota part88718-50330
88569LToyota part88569-74090
88569MToyota part88718-42160
88569PToyota part88569-47020
88578ZCooler seal No. 188578-47070
88620QToyota part88620-42030
88620RToyota part88620-42020
88620SToyota part88620-42040
88620TToyota part88620-42050
88689EToyota part88688-42720
88689FToyota part88688-42730
88689GToyota part88688-42740
88689HToyota part88688-42750
88689JToyota part88688-42760
88689KToyota part88688-42780
88689LToyota part88688-42790
88689MToyota part88688-33240
88689NToyota part88688-42770
88689QToyota part88688-42820
88689RToyota part88688-42830 · 88688-42A50
88689SToyota part88688-42840
88689TToyota part88688-42850
88689UToyota part88688-42890
88689VToyota part88688-42870
88689WToyota part88688-42880
88689XToyota part88688-42A00
88689YToyota part88688-42A10
88690MToyota part88690-42090
88690NToyota part88690-42100
88703Discharge hose sub-assembly88703-42260
88703CToyota part90099-14120
88704Oil suction hose sub-assembly88704-42750
88704BToyota part90099-14157
88705ADischarge pipe sub-assembly88705-42140
88705EToyota part90099-14155
88706ALiquid pipe A sub-assembly88706-42840
88706GToyota part90099-14119
88710EAir conditioning pipe and accessories assembly88710-42280
88710NToyota part90099-14157
88711Cooler No. 1 refrigerant drain hose88711-42090
88711ACooler No. 2 refrigerant drain hose88711-42070
88711CCooler No. 3 refrigerant drain hose88711-42080
88711JToyota part90099-14120
88711KToyota part90099-14155
88711LToyota part90099-14155
88712Cooler No. 1 refrigerant suction hose88712-42210
88712AO-ring (for cooler refrigerant suction hose)90099-14157
88715RToyota part90099-14120
88715TToyota part90099-14155
88715UToyota part88715-42400
88715VToyota part88715-42310
88715WToyota part88715-42320
88715XToyota part88715-42330
88715YToyota part88715-42370
88715ZToyota part88715-42380
88717UNo. 1 suction pipe88717-42190
88717YToyota part90099-14121
88718AClamp No. 1 (for cooler refrigerant pipe)88718-42150
88718LPipe clamp88718-2J230
88718NToyota part88718-42110
88718QToyota part88718-42170
88718RToyota part88718-2J230
88719AAir conditioning pressure sensor88719-11010
88720BAir conditioning hoses and accessories88720-42040
88720CToyota part90099-14157
88720DToyota part90099-14155 · 90099-14157
88E78Toyota part88578-47070
88E78AToyota part88578-47060
88F90CToyota part88690-42110
88G15Toyota part90099-14155 · 90099-14157
88G15BToyota part90099-14120
88G15CToyota part90099-14119
88G15DToyota part90099-14120
88G15EToyota part90099-14155
88G15HToyota part88715-42360
88G15JToyota part88715-42390
88G15KToyota part88715-42300
88G16MToyota part88716-42A80
88G16NToyota part88716-42A90
88G16PToyota part88716-42A30
88G16RToyota part90099-14155 · 90099-14158
88G16SToyota part90099-14119
